Boxco

Boxco S-Series 80x110x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081108
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-081108 is a 80×110×85 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-081108Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×85 mm (3.15×4.33×3.35 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0811 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

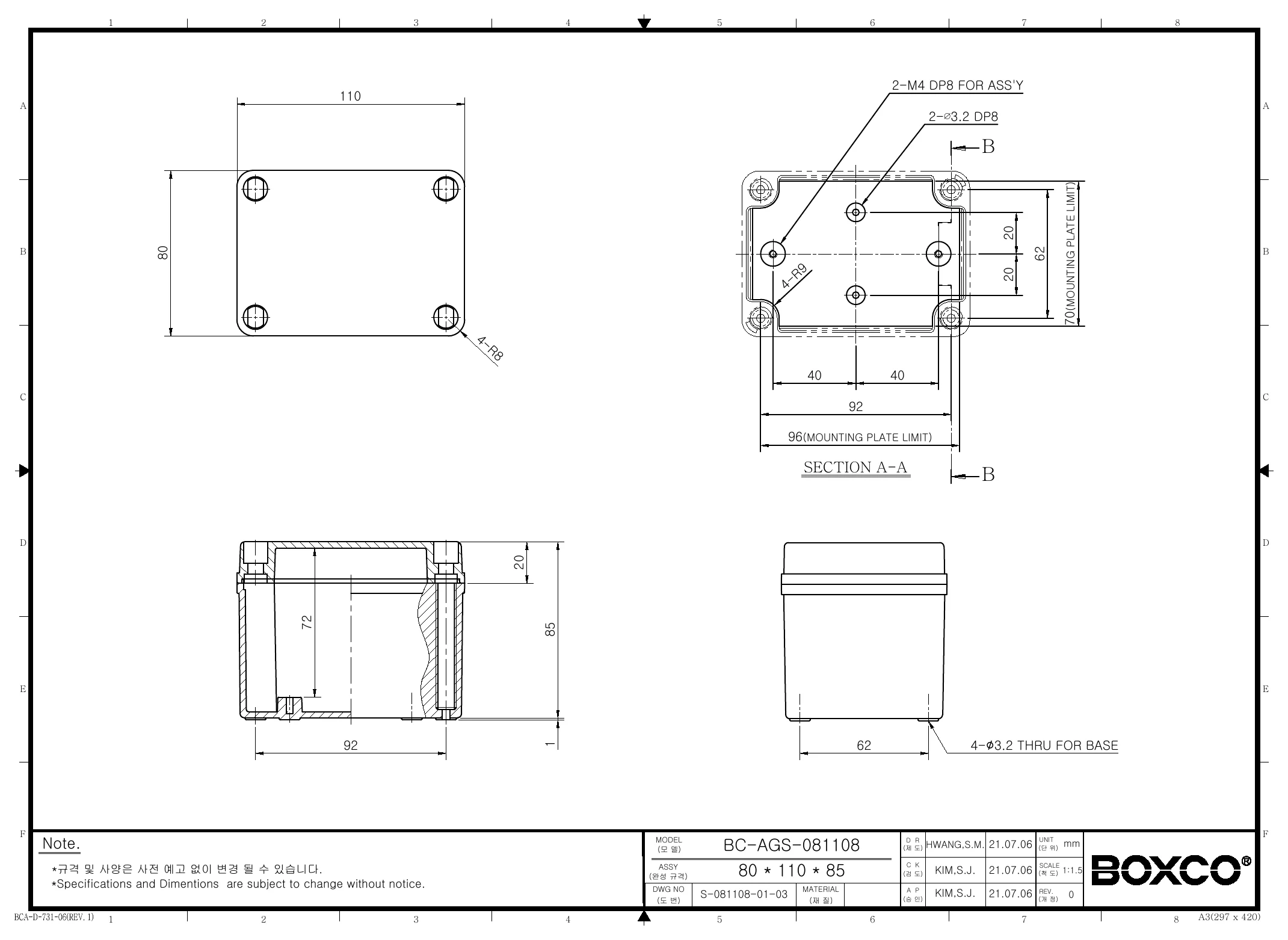

BC-AGS-081108 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-AGS-081108 enclosure?

This model measures 3.15 x 4.33 x 3.35 inches (80 x 110 x 85 mm) and is made from ABS with a grey cover. It is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. The enclosure has an operating temperature range of -40°C to 70°C and weighs 0.196 kg.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is designed for outdoor use. The material includes an ultraviolet stabilizer to help reduce color change over time when exposed to sunlight. Its IP67 rating also supports use in demanding environments where dust and water exposure are concerns.

What types of applications is this plastic enclosure commonly used for?

This enclosure is suited for protecting electronic and control components in industrial, commercial, and OEM applications. Its anti-static material makes it a practical choice where sensitive electronic instruments need added protection from static electricity. The compact size also fits projects that need a sealed enclosure without taking up much space.

How durable is this ABS enclosure for industrial use?

The enclosure is made from high impact resistant ABS and carries an IK08 impact rating, which indicates solid resistance to external mechanical impact. The molded screw thread design and brass inserted mounting plate attachment points also support durable use with heavier internal equipment. This makes it a strong option for environments where toughness matters.

Does this enclosure support internal mounting hardware or accessory installation?

Yes, the enclosure includes internal features intended to support equipment mounting. It has mounting plate attachment points with brass inserted injection molding and pre-molded mounting screw nuts for securing compatible internal components such as DIN rail or other equipment. These built-in features help buyers looking for a more equipment-ready enclosure body.

What environmental protection does the BC-AGS-081108 provide?

This model is rated IP67, which means it is dust-tight and built to resist water ingress in demanding settings. It also uses a precision-injected gasket designed to support strong waterproof and dust-proof performance. Combined with its -40°C to 70°C temperature range, it is built for challenging operating conditions.
