Boxco

Boxco S-Series 80x160x55mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081605
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-081605 is a 82×162×55 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-081605Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
82×162×55 mm (3.23×6.38×2.17 in)
Mounting plate dimension M1 × M2
68 × 148 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0816 P (Plastic, P type), 0816 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

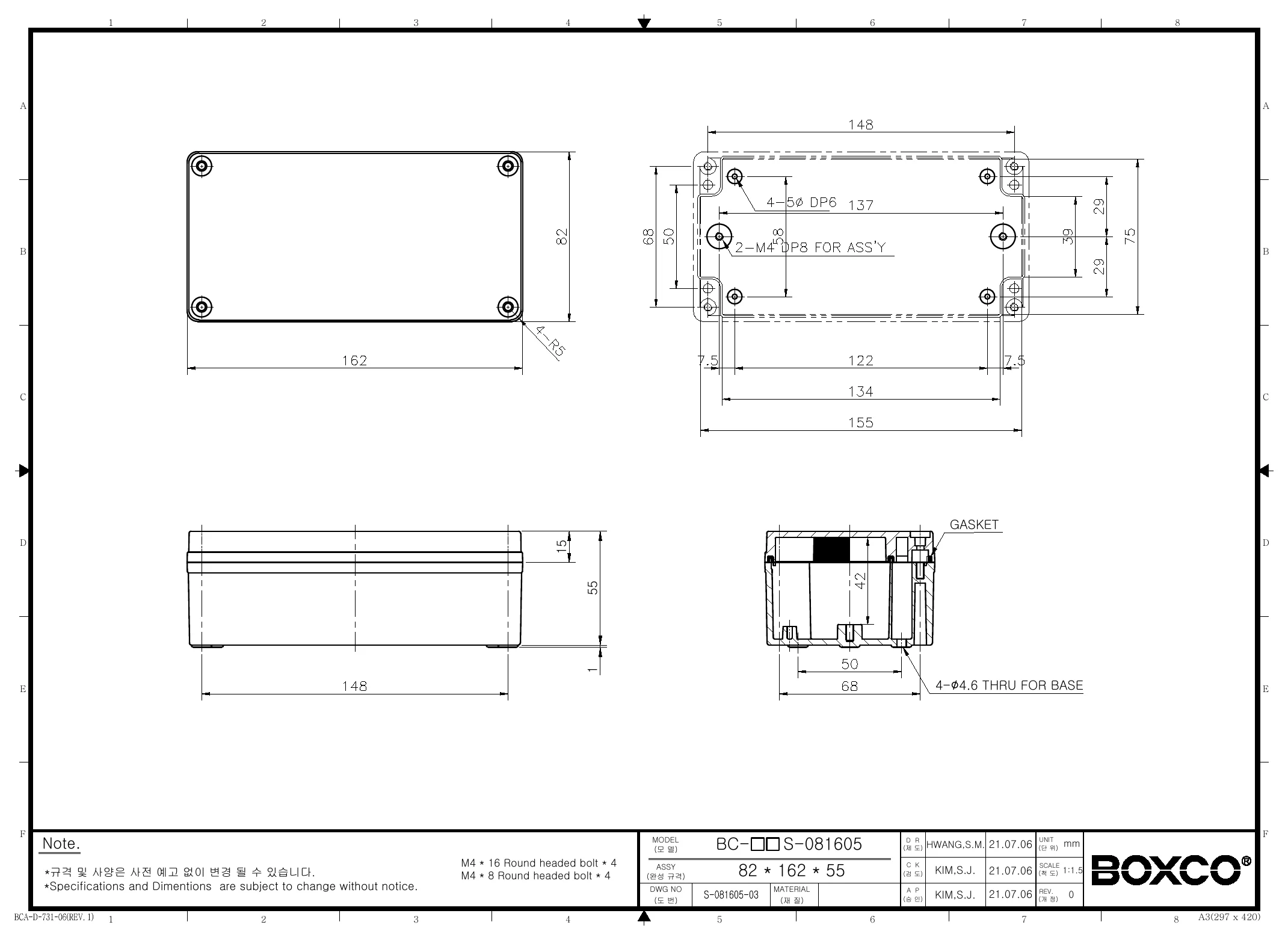

Technical drawings

BC-ATS-081605 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x160x55mm enclosure suited for?

This model is designed for protecting electronic components in industrial and commercial environments where a compact, sealed plastic enclosure is needed. Its anti-static material, impact resistance, and transparent cover make it a practical choice for housing sensitive equipment that may need visual inspection without opening the box.

How durable is this enclosure in wet, dusty, or demanding environments?

This enclosure is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is also made from high impact resistant ABS and uses a precision-injected gasket to support strong waterproof and dust-proof performance.

Can this enclosure be used outdoors?

Yes, Boxco states that an ultraviolet stabilizer is added to the S-Series for outdoor usage. That helps reduce visible color change over long periods of exposure compared with standard non-stabilized plastic enclosures.

What are the key specifications of this specific model?

This model measures 3.15 x 6.3 x 2.17 inches, or 80 x 160 x 55 mm, and weighs 0.208 kg. It has an operating temperature range of -40 degrees C to 70 degrees C, uses ABS construction, and comes with a transparent screw-type cover.

Does this enclosure support internal equipment mounting?

Yes, the product description notes internal mounting plate attachment points with brass inserted injection molding for handling heavier installed equipment. It also includes pre-molded mounting screw nuts that can be used to secure DIN rail or other internal hardware.

Why choose this model over a basic plastic enclosure?

This model stands out by combining IP67 sealing, IK08 impact resistance, anti-static material, UV stabilization for outdoor use, and a transparent cover in one enclosure. It is intended for buyers who need more than simple housing and want added protection for sensitive electronics in harsher environments.
