Boxco

Boxco S-Series 80x180x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-081807 is a 80×180×70 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-081807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×70 mm (3.15×7.09×2.76 in)
Mounting plate dimension M1 × M2
65 × 165 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0818 P (Plastic, P type), 0818 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

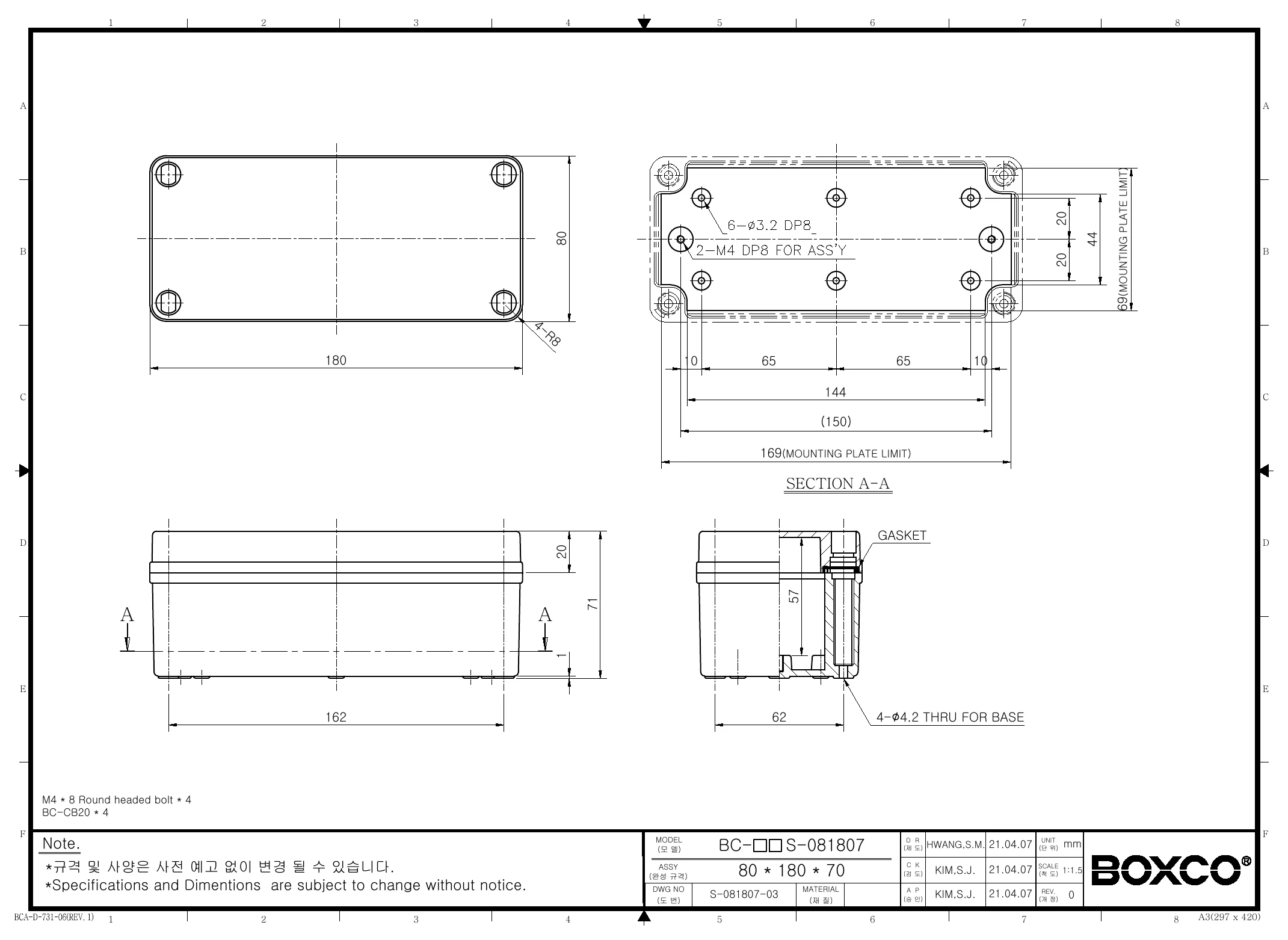

Technical drawings

BC-ATS-081807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x180x70 mm enclosure best suited for?

This model is suited to protecting electronic controls, instrumentation, and other sensitive components that need a sealed non-metallic enclosure. Its anti-static material, IP67 sealing, and impact-resistant ABS construction make it a strong fit for industrial and outdoor equipment housings where dust, water, and mechanical protection matter.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. The IP67 rating also indicates strong resistance to dust ingress and temporary water exposure when the enclosure is properly closed.

What are the key specifications of this enclosure?

This enclosure measures 3.15 x 7.09 x 2.76 inches, which corresponds to 80 x 180 x 70 mm. It is made from ABS, uses a transparent screw-type cover, carries IP67 and IK08 ratings, weighs 0.248 kg, and is rated for operation from -40 C to 70 C.

Does the transparent cover help with inspection and monitoring?

Yes. The transparent cover can be useful when you want visibility into labels, indicators, or installed components without opening the box. That makes this model more practical for applications where quick visual checks are helpful while still keeping the enclosure sealed.

Can this enclosure support internal mounting hardware or heavier components?

This model includes internal mounting plate attachment points with brass inserted injection molding, which Boxco describes as allowing the mounting plate to be fixed tightly for heavier installed equipment. It also includes pre-molded mounting screw nuts that can support mounting of DIN rail or other internal hardware.

Why would a buyer choose this model over a basic plastic enclosure?

This enclosure stands out by combining IP67 water and dust protection, IK08 impact resistance, UV-stabilized ABS for outdoor exposure, and anti-static material for sensitive electronics. It also adds practical build features such as a transparent cover, molded screw threads, gasket sealing, and internal mounting provisions that are not always present on simpler plastic boxes.
