Boxco

Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081808
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-081808 is a 80×180×85 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-081808Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×85 mm (3.15×7.09×3.35 in)
Mounting plate dimension M1 × M2
65 × 165 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0818 P (Plastic, P type), 0818 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

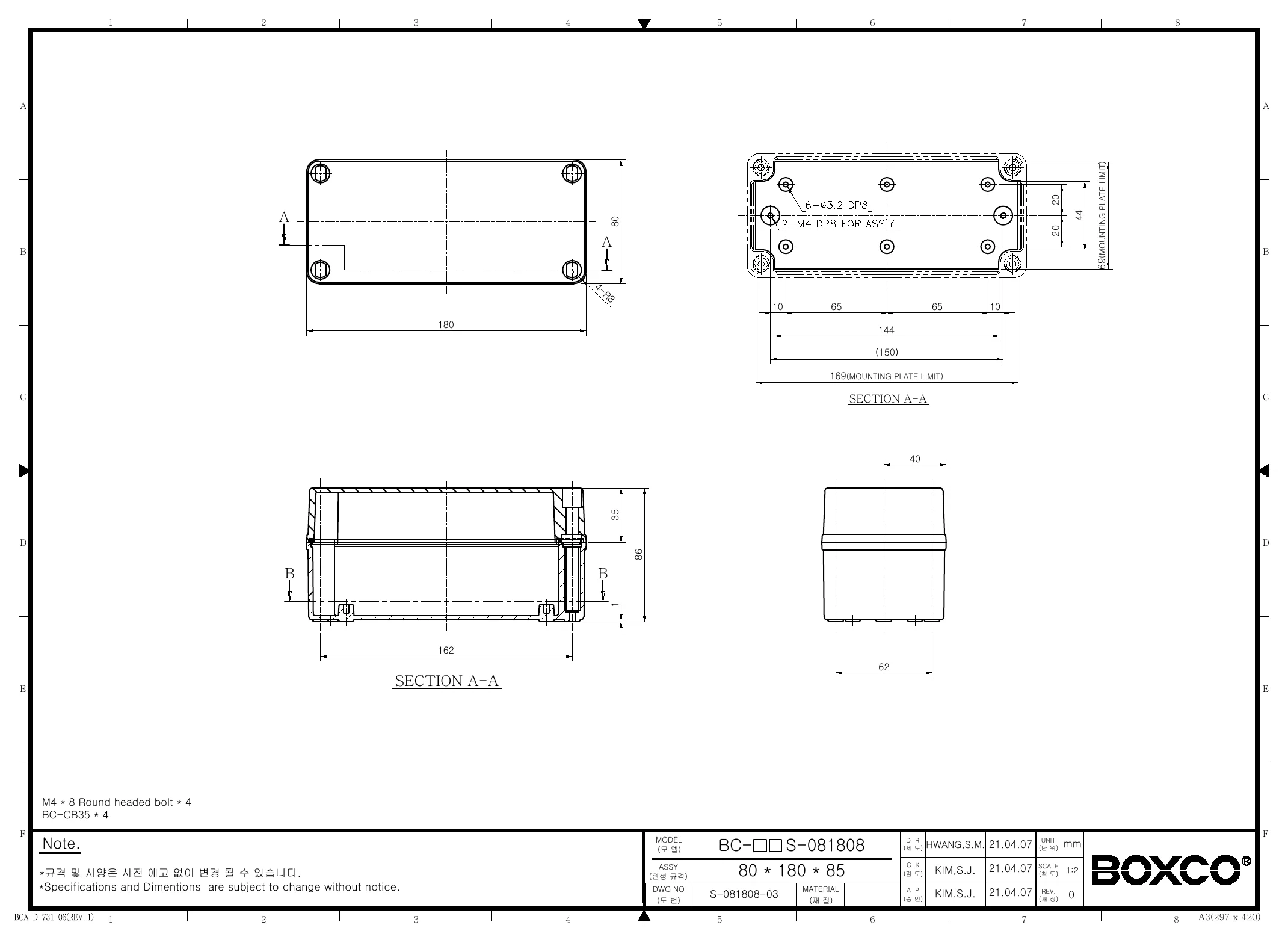

Technical drawings

BC-AGS-081808 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is designed for protecting electronic components and instruments in industrial or commercial applications where a sealed plastic housing is needed. Its ABS construction, screw-type cover, and internal mounting features make it suitable for control, monitoring, and protection use cases that need a compact, durable enclosure.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is built for demanding environments with an IP67 rating for protection against dust and water ingress. The product description also notes ultraviolet stabilizer material for outdoor usage, helping reduce visible color change over long-term exposure.

What are the main specifications of this enclosure?

This Boxco S-Series model measures 3.15 x 7.09 x 3.35 inches (80 x 180 x 85 mm) and is made from ABS with a grey cover. It carries IP67 and IK08 ratings, has a screw-type cover design, weighs 0.282 kg, and is rated for temperatures from -40 °C to 70 °C.

How durable is the enclosure for impact and general industrial use?

This model is rated IK08, indicating solid resistance to external mechanical impact for a plastic enclosure. The description also states it is made from high impact resistant material to help prevent breakage during machining or processing.

Does this enclosure support mounting internal components?

Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure internal hardware such as mounting plates or DIN rail-based equipment inside the enclosure.

What temperature range can this enclosure handle?

This enclosure is specified for operation from -40 °C to 70 °C. That range makes it appropriate for many indoor and outdoor industrial environments where equipment may be exposed to cold or moderately high temperatures.
