Boxco

Boxco S-Series 80x250x85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-082508
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-082508 is a 80×250×85 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-082508Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×85 mm (3.15×9.84×3.35 in)
Mounting plate dimension M1 × M2
65 × 235 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0825 P (Plastic, P type), 0825 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

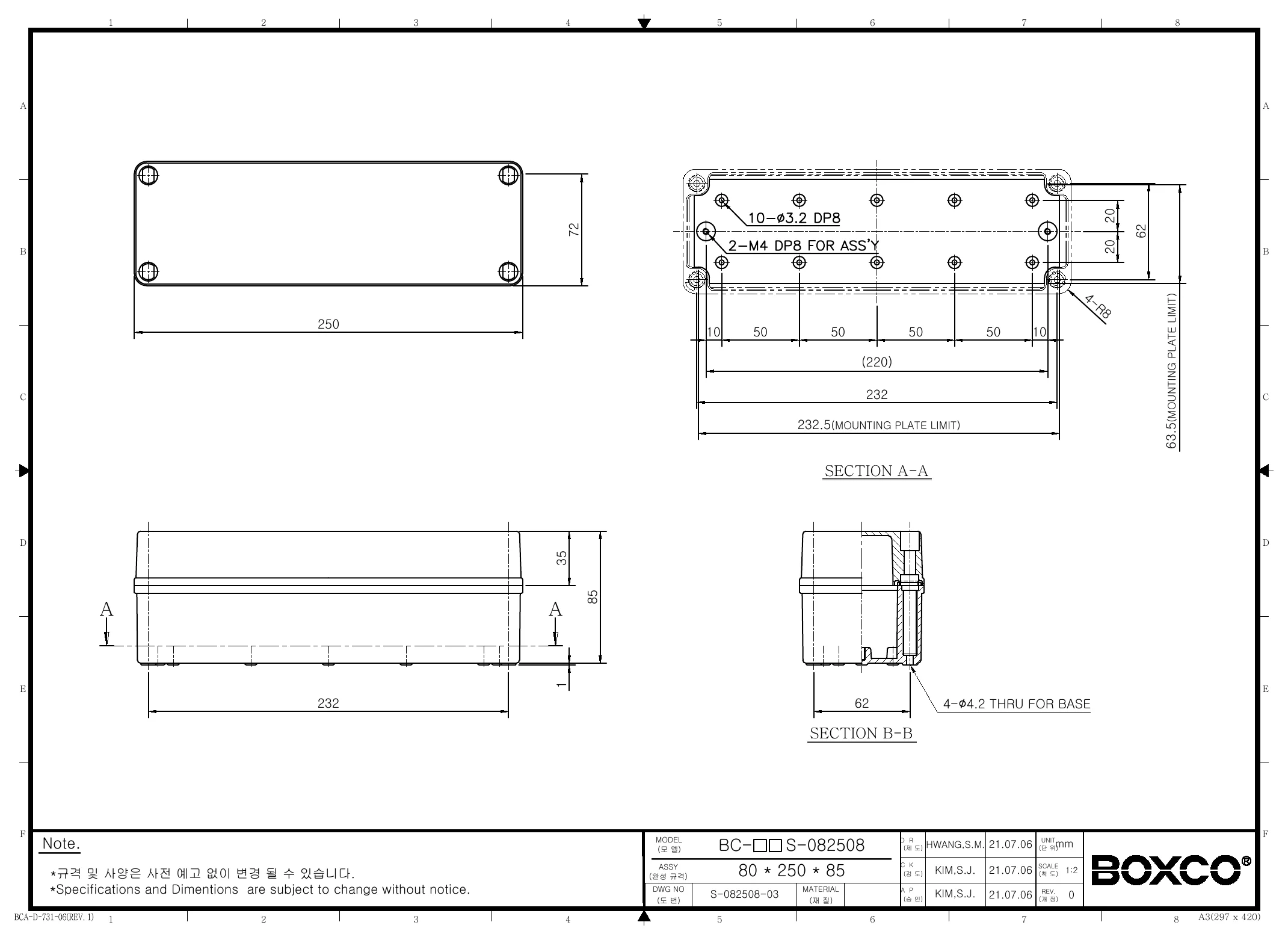

BC-ATS-082508 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure best suited for?

This Boxco S-Series enclosure is suited for protecting electronic components and control devices in industrial, commercial, and OEM applications. Its anti-static ABS construction and high-impact design make it a practical choice where sensitive instruments need a durable protective housing.

Can this plastic enclosure be used outdoors?

Yes, this model is designed for outdoor-capable use. The enclosure includes an ultraviolet stabilizer to help reduce color change over time, and its IP67 rating supports strong protection against dust and water ingress.

What do the IP67 and IK08 ratings mean for this enclosure?

IP67 indicates this enclosure is built to resist dust entry and temporary immersion in water under rated conditions. IK08 indicates solid impact resistance, which supports use in environments where the housing may be exposed to mechanical contact or bumps.

What are the dimensions of this Boxco enclosure?

This model measures 3.15 x 9.84 x 3.35 inches, which corresponds to 80 x 250 x 85 mm. That size provides a long, narrow enclosure format that can work well when internal components need more linear mounting space.

Does this enclosure support demanding temperature conditions?

Yes, this enclosure is rated for use from -40 °C to 70 °C. That range makes it suitable for many indoor and outdoor industrial environments where equipment may be exposed to cold weather or elevated ambient temperatures.

What makes this model different from a basic plastic project box?

This model combines anti-static ABS material, a transparent cover, IP67 sealing, and IK08 impact resistance in one enclosure. It also includes molded attachment points and pre-molded screw nut features that make it more purpose-built for professional equipment protection than a basic general-purpose box.

Is the transparent cover useful for equipment that needs visibility?

Yes, the transparent cover allows visual inspection of internal indicators or components without opening the enclosure. That can be useful in applications where status visibility matters while still maintaining the enclosure's protective design.
