Boxco

Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-080806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-080806 is a 80×80×60 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-080806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×80×60 mm (3.15×3.15×2.36 in)
Mounting plate dimension M1 × M2
68 × 68 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0808 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

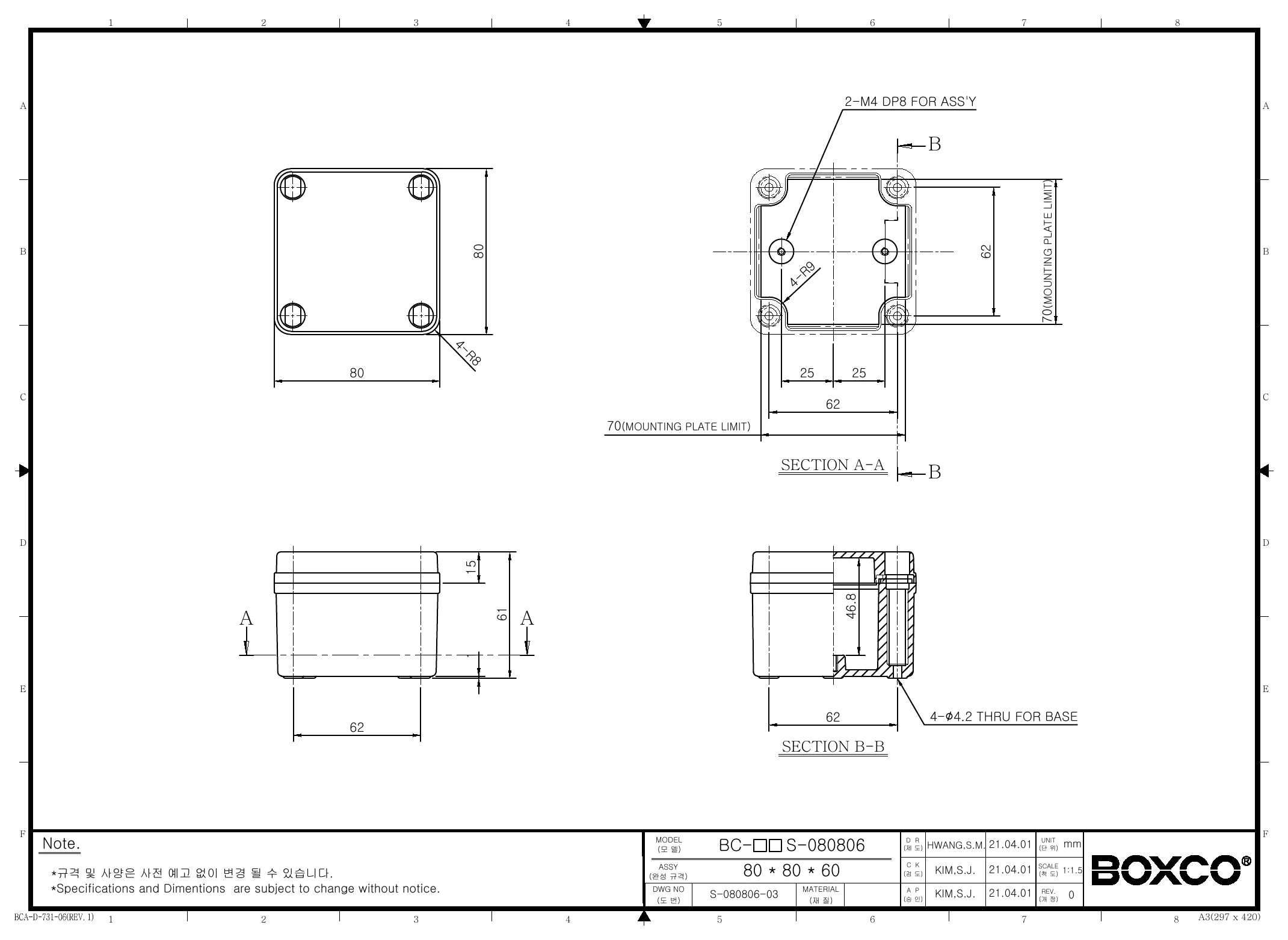

Technical drawings

BC-AGS-080806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-AGS-080806 enclosure suited for?

This enclosure is designed for protecting electronic components and control assemblies in industrial and commercial environments. Its compact 80 x 80 x 60 mm size and screw-type cover make it a practical choice for small equipment housings where dust and water resistance are important.

What are the key protection ratings for this plastic enclosure?

The BC-AGS-080806 is rated IP67 and IK08. That means it is built for strong dust and water protection and also offers solid resistance to external impact for a plastic enclosure in this size class.

Can this enclosure be used outdoors?

Yes, this model is described as suitable for outdoor usage because the Boxco S-Series includes an ultraviolet stabilizer. The product description also notes that only minor color change is expected over long-term use.

What material is this enclosure made from, and why does that matter?

This model is made from ABS and includes anti-static material as described by the manufacturer. It is intended to help protect sensitive electronic instruments from static electricity while also providing high impact resistance during use and processing.

What is the operating temperature range for this enclosure?

The specified temperature range for the BC-AGS-080806 is -40°C to 70°C. This makes it suitable for a wide range of indoor and outdoor operating conditions within that limit.

Does this enclosure support mounting internal components or accessories?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure mounting plates, DIN rail, or other internal equipment inside the enclosure.
