Boxco

Boxco S-Series 100x100x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-101010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-101010 is a 100×100×100 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-101010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×100×100 mm (3.94×3.94×3.94 in)
Mounting plate dimension M1 × M2
82 × 82 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1010 P (Plastic, P type), 1010 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

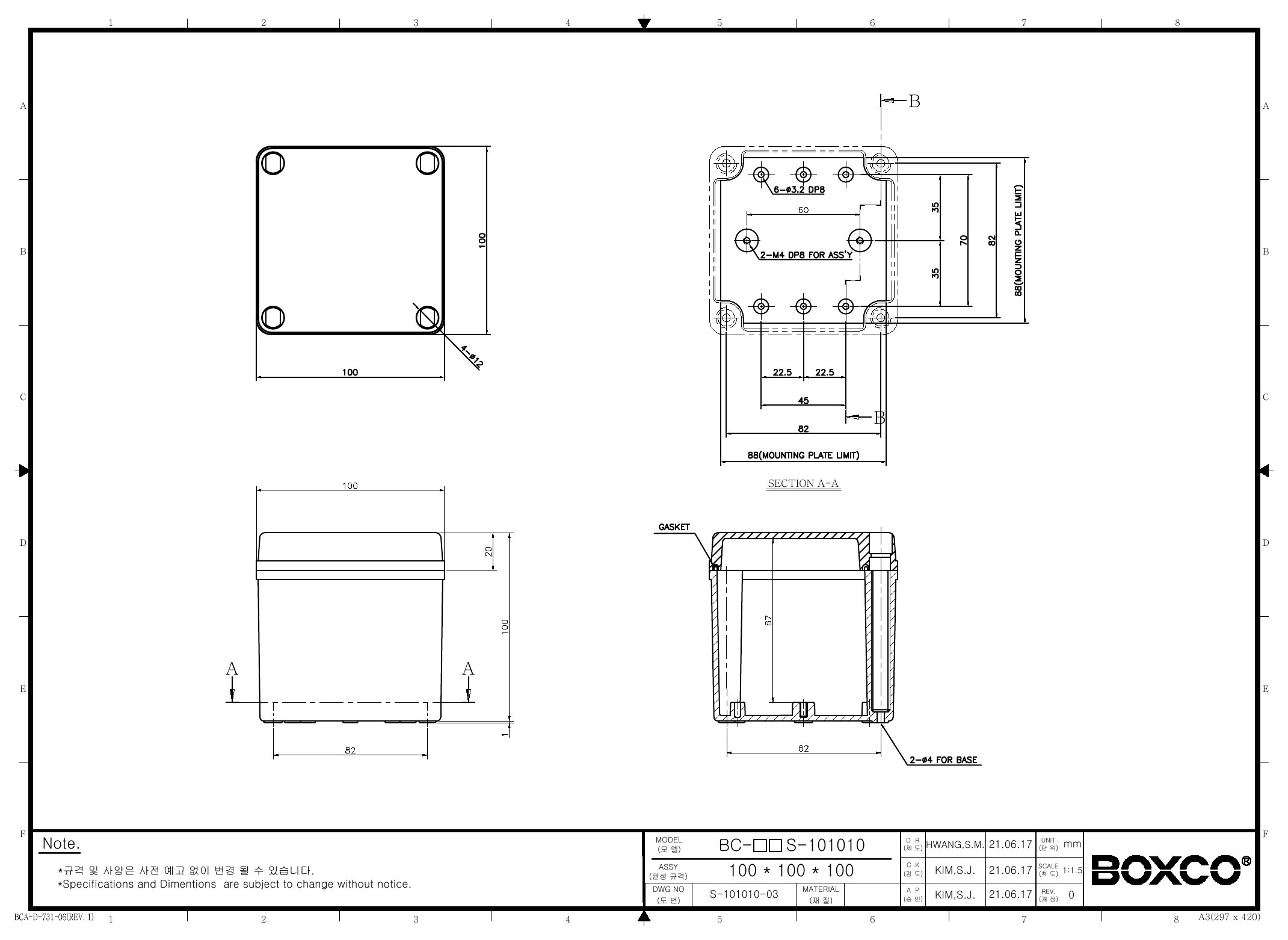

Technical drawings

BC-AGS-101010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this enclosure suitable for?

This model is suited for protecting electronic equipment in industrial, commercial, and outdoor environments where a sealed plastic enclosure is needed. Its IP67 rating, IK08 impact rating, and UV-stabilized ABS construction make it a practical choice for control, monitoring, or junction applications that need protection from dust, water, and physical impact.

What are the key specifications of the Boxco S-Series 100x100x100mm enclosure?

This enclosure measures 3.94 x 3.94 x 3.94 inches (100 x 100 x 100 mm) and is made from ABS with a grey cover. It is rated IP67 for ingress protection, IK08 for impact resistance, weighs 0.254 kg, and has an operating temperature range of -40°C to 70°C.

Is this enclosure appropriate for outdoor use?

Yes, this Boxco S-Series enclosure is designed with an ultraviolet stabilizer to support outdoor use. The product description also notes that only minor color changes are expected over long-term exposure, helping it maintain performance in outdoor environments.

How does this screw type enclosure help protect sensitive equipment?

The enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. It also uses high impact resistant material and a gasket designed for strong waterproof and dust-proof performance, adding another layer of protection for enclosed components.

What makes this model different from a basic plastic box?

This model combines multiple protective features in one enclosure, including IP67 sealing, IK08 impact resistance, UV stabilization for outdoor exposure, and anti-static material for sensitive electronics. It also includes internal mounting plate attachment points, pre-molded mounting screw nuts, and molded cover bolt attachment points for a more robust enclosure design.

What environmental conditions can this enclosure handle?

This enclosure is specified for use from -40°C up to 70°C, which supports a wide range of operating conditions. Its IP67 rating indicates strong resistance to dust and water ingress, making it suitable for demanding indoor or outdoor environments.
