Boxco

Boxco S-Series 100x100x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-101010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-101010 is a 100×100×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-101010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×100×100 mm (3.94×3.94×3.94 in)
Mounting plate dimension M1 × M2
82 × 82 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1010 P (Plastic, P type), 1010 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

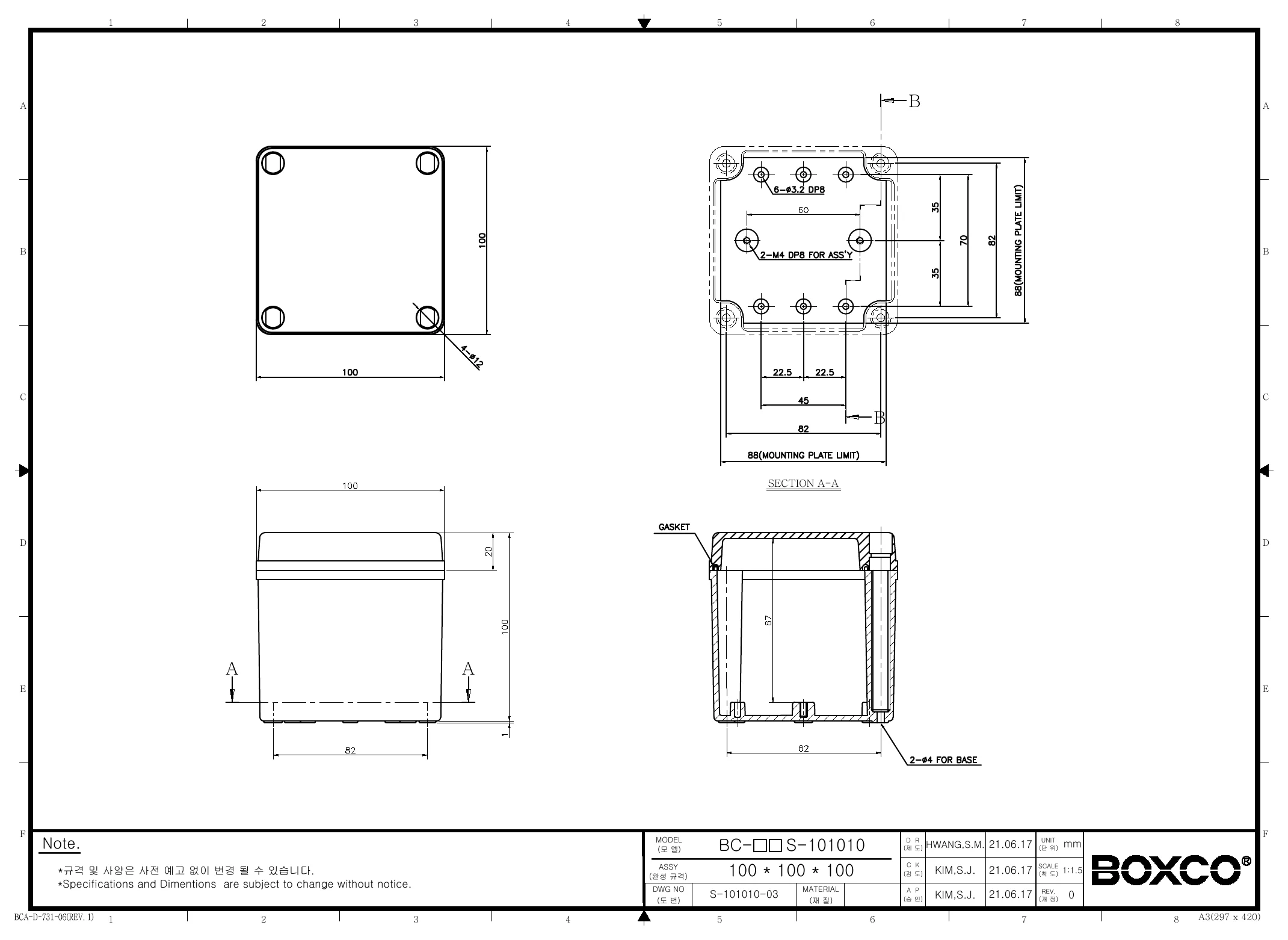

BC-CGS-101010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 100x100x100mm plastic enclosure best suited for?

This enclosure is suited for protecting compact electrical or electronic components in industrial, commercial, and outdoor equipment housings. Its IP67 sealing, IK08 impact rating, and anti-static polycarbonate construction make it a practical choice where dust, water, and incidental impact resistance matter.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added to this S-Series enclosure to support outdoor usage and reduce visible color change over long periods. The IP67 rating also helps protect against dust ingress and temporary water exposure in demanding environments.

What are the key specifications of this enclosure?

This model measures 3.94 x 3.94 x 3.94 inches, or 100 x 100 x 100 mm, and weighs 0.3100 kg. It is a screw-type plastic enclosure made from polycarbonate (PC) with a grey cover, rated IP67 and IK08, with an operating temperature range of -40°C to 110°C.

How durable is this enclosure in industrial environments?

This model is made from high impact resistant polycarbonate and carries an IK08 impact rating, which supports use in tougher environments. Boxco also describes the material as resistant to breakage during hole and press processing, making it a durable option for demanding applications.

Does this enclosure support internal mounting accessories or equipment?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding, designed to hold heavier internal equipment more securely. It also includes pre-molded mounting screw nuts that support adding DIN rail or similar internal hardware.

What makes this model different from a general-purpose plastic box?

Compared with a basic plastic enclosure, this model combines several protective features in one housing: IP67 sealing, IK08 impact resistance, UV-stabilized material for outdoor use, and anti-static protection for sensitive instruments. It also includes molded mounting provisions and a gasket designed for strong waterproof and dust-proof performance.
