Boxco

Boxco S-Series 100x100x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-101007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-101007 is a 100×100×75 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-101007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×100×75 mm (3.94×3.94×2.95 in)
Mounting plate dimension M1 × M2
82 × 82 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1010 P (Plastic, P type), 1010 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

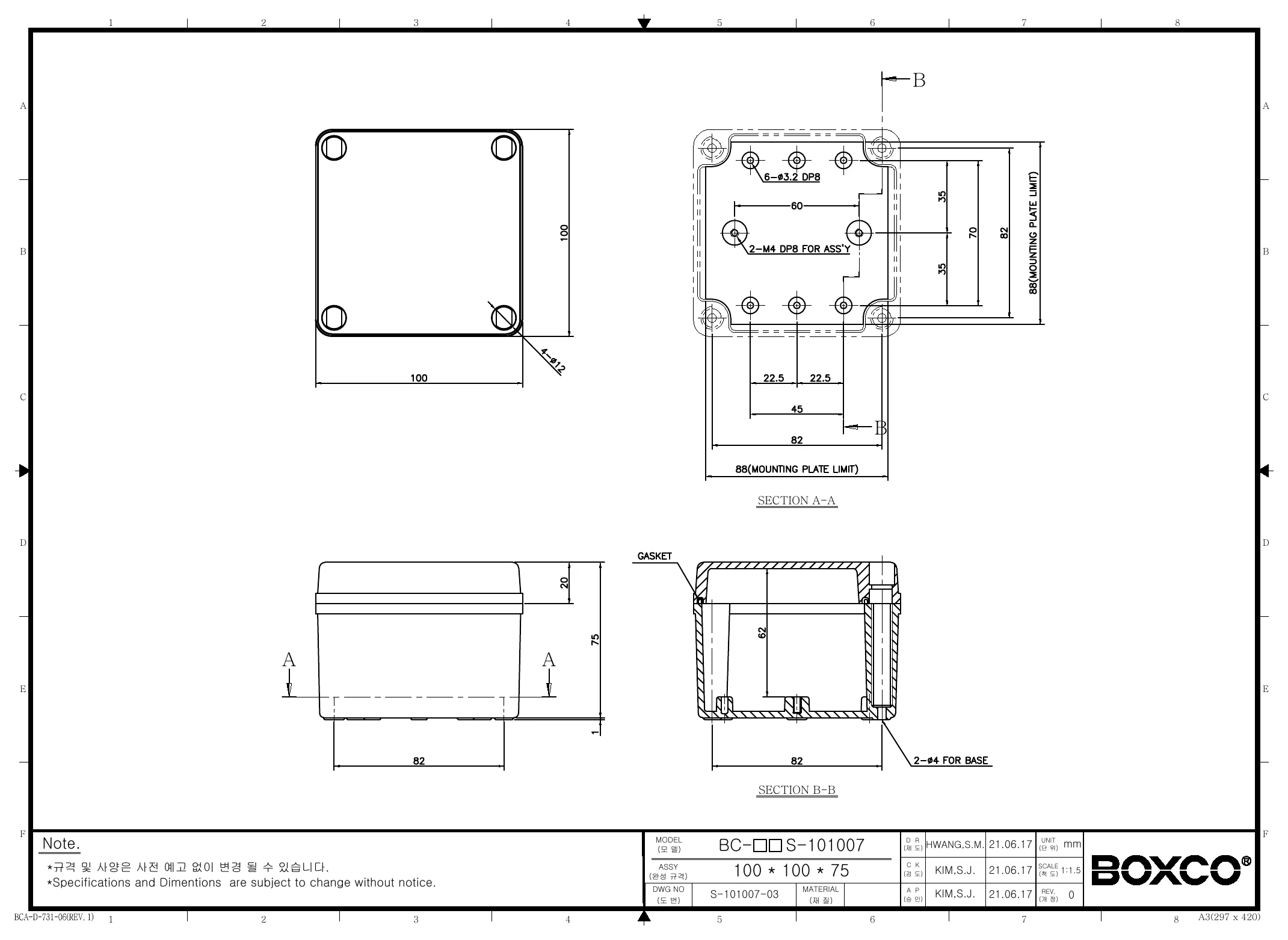

Technical drawings

BC-AGS-101007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 100x100x75mm plastic enclosure suited for?

This enclosure is suited for protecting compact electronic components and control assemblies in industrial and commercial environments. Its internal mounting features and impact-resistant ABS construction make it a practical choice for housing sensitive equipment that needs a sealed protective box.

Is this enclosure suitable for outdoor use?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. The material is intended to reduce noticeable color change over long periods of exposure while maintaining enclosure durability.

How well does this enclosure protect against water, dust, and impact?

This model is rated IP67 and IK08, indicating strong protection against dust ingress, temporary water exposure, and mechanical impact. The product description also notes a precision-injected gasket designed to support waterproof and dust-proof performance.

What are the size, material, and cover style of this enclosure?

This specific model measures 3.94 x 3.94 x 2.95 inches, which corresponds to 100 x 100 x 75 mm. It is made from ABS and comes with a grey cover in a screw-type enclosure design.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 70 degrees C. That range makes it suitable for many demanding indoor and outdoor industrial environments.

Does this enclosure support internal mounting accessories or hardware?

Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. According to the product description, these features are intended to help secure heavier internal equipment and support add-ons such as DIN rail mounting hardware.
