Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 100x100x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-101007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-101007 is a 100×100×75 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-101007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×100×75 mm (3.94×3.94×2.95 in)
Mounting plate dimension M1 × M2
82 × 82 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1010 P (Plastic, P type), 1010 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

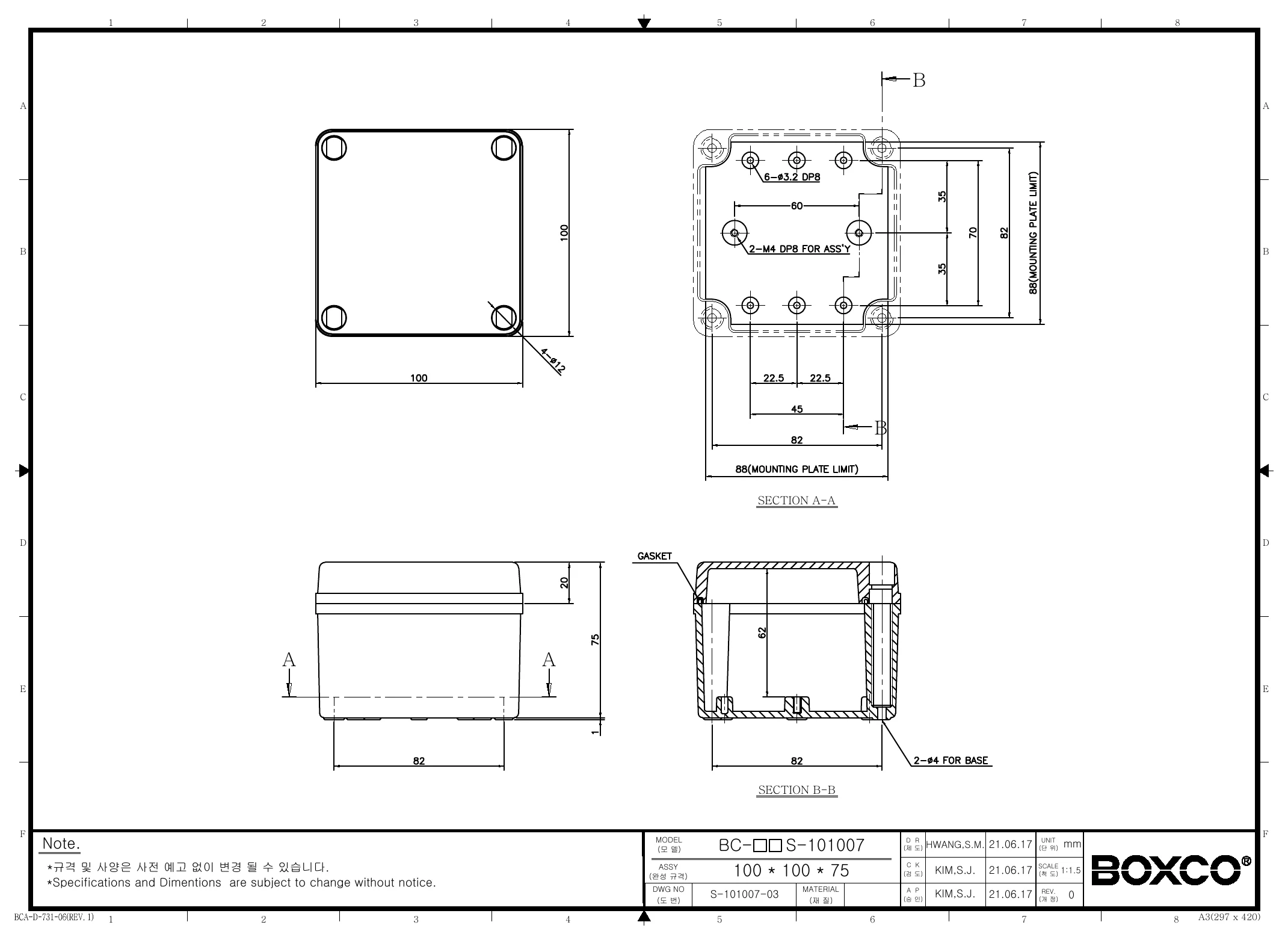

Technical drawings

BC-CGS-101007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this enclosure?

This Boxco S-Series enclosure measures 3.94 x 3.94 x 2.95 inches, which corresponds to 100 x 100 x 75 mm. That size makes it suitable for compact control, protection, or junction-style enclosure applications where a small footprint is important.

Is this enclosure suitable for outdoor environments?

Yes. This model includes an ultraviolet stabilizer intended to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust ingress and temporary water exposure.

How durable is this plastic enclosure?

This enclosure is rated IP67 for dust and water resistance and IK08 for impact resistance. It is made from polycarbonate and described as high impact resistant, which helps it stand up to demanding industrial and commercial environments.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and has a grey cover. The product description also notes anti-static material properties, which can help protect sensitive electronic instruments from static electricity.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C to 110 °C. That wide operating range makes it a practical option for both cold and high-heat environments where standard plastic housings may be more limited.

What kinds of equipment is this enclosure designed to support internally?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding to help secure heavier internal equipment. It also has pre-molded mounting screw nuts, which can support DIN rail or other internal hardware where that format is required.

What distinguishes this screw type Boxco S-Series enclosure?

This model uses a screw-type cover and includes molded cover bolt attachment points designed for strength. It also combines outdoor UV stabilization, anti-static material properties, IP67 sealing, and IK08 impact resistance in a compact 100 x 100 x 75 mm format.
