Boxco

Boxco S-Series 100x100x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-101007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-101007 is a 100×100×75 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-101007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×100×75 mm (3.94×3.94×2.95 in)
Mounting plate dimension M1 × M2
82 × 82 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1010 P (Plastic, P type), 1010 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

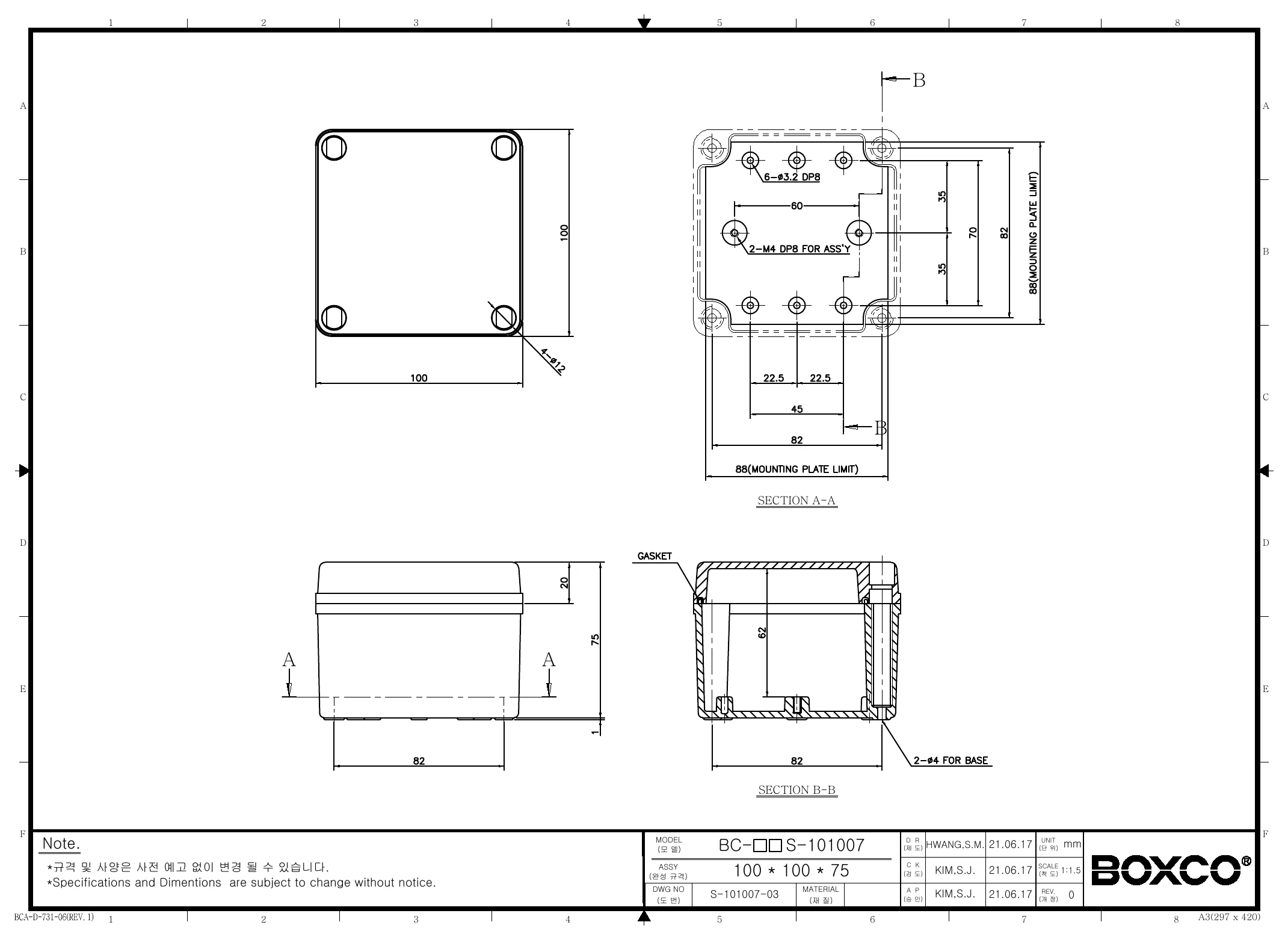

Technical drawings

BC-CTS-101007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This model is suited for protecting electronic components and control devices in industrial and commercial environments where a compact sealed enclosure is needed. Its transparent cover is useful when visual inspection is important without opening the box.

Is this enclosure suitable for outdoor or washdown environments?

Yes. This enclosure is rated IP67 for protection against dust ingress and temporary water exposure, and the material includes an ultraviolet stabilizer for outdoor use. The injected gasket is also designed to support waterproof and dust-proof performance.

What are the key material and impact-resistance features of this model?

This enclosure is made from polycarbonate and includes a transparent cover. It is rated IK08 for impact resistance, and the description notes high impact-resistant material intended to reduce breakage during processing and use.

What size is this enclosure?

This Boxco S-Series enclosure measures 3.94 x 3.94 x 2.95 inches, which corresponds to 100 x 100 x 75 mm. That size makes it a compact option for applications that need sealed protection without a large footprint.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide operating range makes it appropriate for demanding environments with significant temperature variation.

Does this enclosure support mounting internal components securely?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal hardware.
