Boxco

Boxco S-Series 100x185x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-101807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-101807 is a 100×185×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-101807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×185×70 mm (3.94×7.28×2.76 in)
Mounting plate dimension M1 × M2
80 × 164 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1018 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

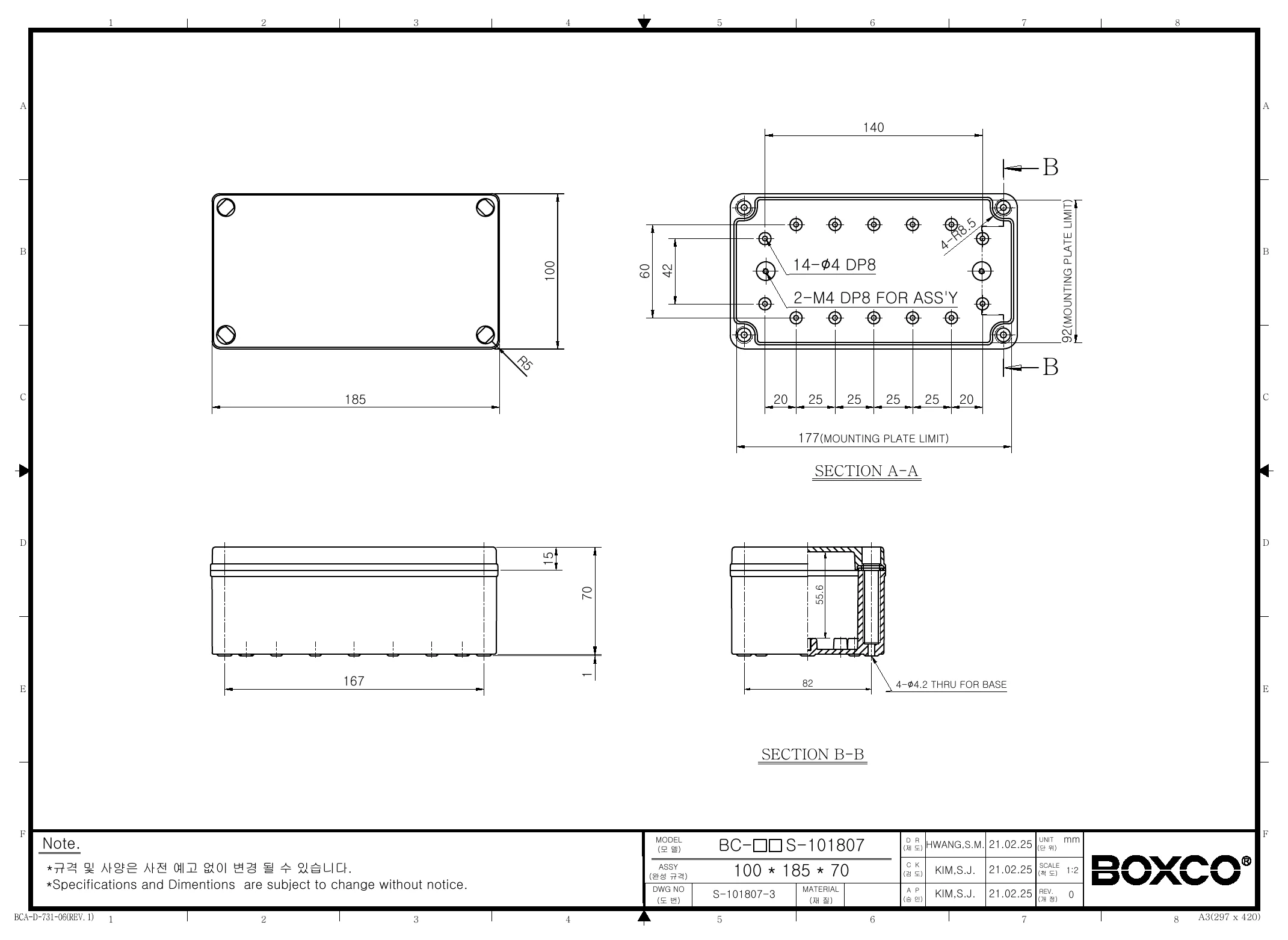

Technical drawings

BC-CGS-101807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 100x185x70mm plastic enclosure best suited for?

This model is suited to protecting electronics and control components that need a sealed non-metallic enclosure. Its IP67 rating, IK08 impact resistance, UV-stabilized polycarbonate construction, and anti-static material make it a practical choice for outdoor equipment housings, monitoring devices, and other sensitive electronic instruments.

Is this enclosure suitable for outdoor use?

Yes. Boxco specifies that this S-Series enclosure includes an ultraviolet stabilizer for outdoor usage, which helps limit color change over long-term exposure. The IP67 sealing also supports use where dust exclusion and resistance to temporary water ingress are important.

What are the key specifications of this enclosure?

This model measures 3.94 x 7.28 x 2.76 inches, or 100 x 185 x 70 mm, and weighs 0.345 kg. It is a screw-type plastic enclosure made from polycarbonate with a grey cover, rated IP67 and IK08, and specified for temperatures from -40 degrees C to 110 degrees C.

How durable is this Boxco S-Series enclosure?

This enclosure is designed for demanding environments with IK08 impact resistance and high-impact polycarbonate construction. Boxco also notes that the material helps resist breakage during hole and press processing, which is useful when the enclosure needs further mechanical preparation.

What internal mounting features does this model include?

This enclosure includes internal mounting plate attachment points with brass inserted injection molding to support heavier installed equipment. It also has pre-molded mounting screw nuts so DIN rail or other internal hardware can be fixed more securely inside the box.

What makes this enclosure a good choice for sensitive electronics?

Boxco specifies anti-static material in this model to help protect sensitive electronic instruments from static electricity. Combined with the sealed gasket system and rugged polycarbonate body, it is intended for applications where both environmental protection and material reliability matter.
