Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 100x185x70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-101807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-101807 is a 100×185×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-101807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×185×70 mm (3.94×7.28×2.76 in)
Mounting plate dimension M1 × M2
80 × 164 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1018 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

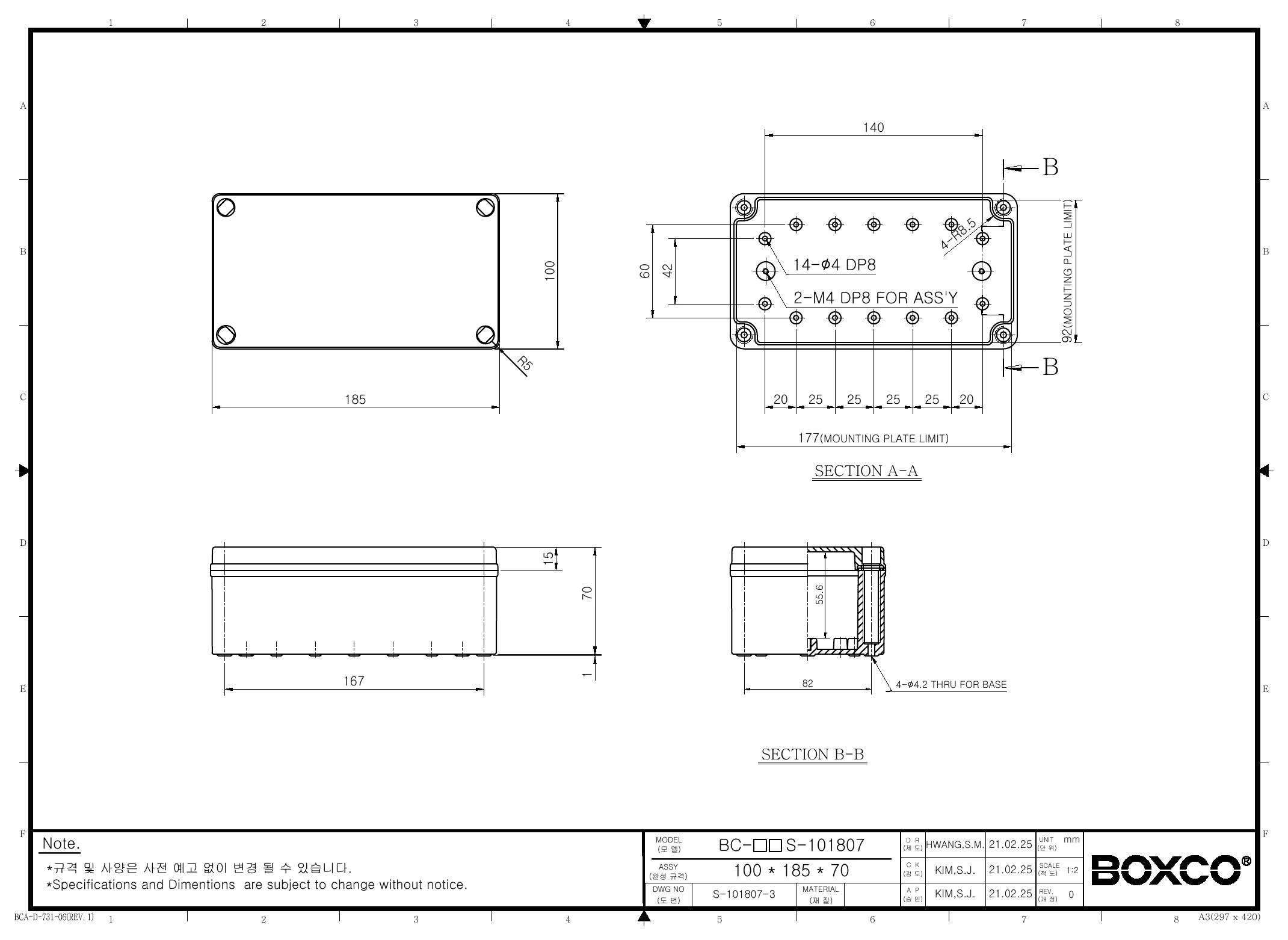

BC-CTS-101807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 100x185x70mm plastic enclosure best suited for?

This enclosure is a good fit for protecting industrial controls, monitoring devices, and other sensitive electronics that need a sealed non-metallic housing. Its transparent cover makes it useful when components or indicators need to remain visible without opening the box.

Is this enclosure suitable for outdoor or demanding environments?

Yes. This model is described as having an ultraviolet stabilizer for outdoor usage, and its IP67 rating indicates strong protection against dust and water ingress. The IK08 impact rating also supports use where the enclosure may face mechanical impact.

What material is this Boxco enclosure made from?

This model is made from PC and includes a transparent cover. The product description also notes high impact resistance and anti-static material characteristics to help protect sensitive electronic instruments.

What are the dimensions of this enclosure?

The enclosure measures 3.94 x 7.28 x 2.76 inches, which corresponds to 100 x 185 x 70 mm. These dimensions make it a mid-size enclosure for applications that need more internal space than compact junction-style boxes.

What environmental temperature range can this enclosure handle?

This model is specified for temperatures from -40 degrees C to 110 degrees C. That range supports use in both low-temperature and elevated-temperature environments, depending on the requirements of the installed equipment.

Does this enclosure support mounting internal components securely?

Yes. The product description states that it includes mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure mounting of internal hardware such as a mounting plate or DIN rail-based equipment.

How does the screw-type cover design benefit this enclosure?

This model uses a screw-type cover with cover bolt attachment points formed during injection molding for added strength. That design helps provide a secure closure while supporting the enclosure's waterproof and dust-proof performance.

What warranty is provided for this Boxco enclosure?

The listed warranty period for this model is 1 year. For procurement or project planning, that gives buyers a defined coverage period tied to this specific enclosure.
