Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-102307
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-102307 is a 100×230×70 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-102307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×230×70 mm (3.94×9.06×2.76 in)
Mounting plate dimension M1 × M2
80 × 210 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1023 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

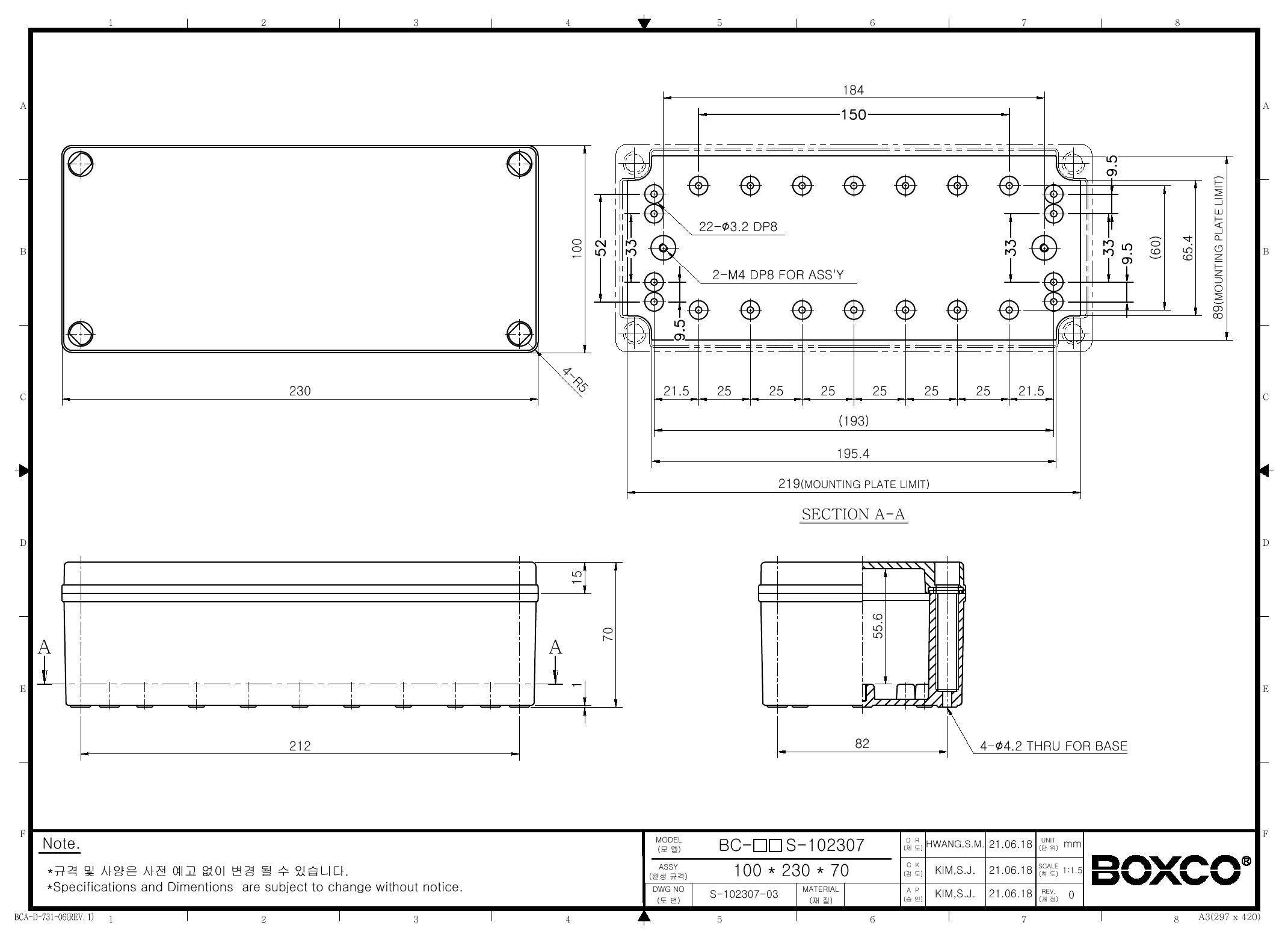

Technical drawings

BC-AGS-102307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco S-Series enclosure?

This model measures 3.94 x 9.06 x 2.76 inches, which is 100 x 230 x 70 mm. It is sized for applications that need a longer rectangular plastic enclosure with room for internal components.

What material is this enclosure made from?

This enclosure is made from ABS plastic and includes anti-static material to help protect sensitive electronic instruments from static electricity. The housing is also described as high impact resistant for better durability during use and processing.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust and water ingress. It also includes an ultraviolet stabilizer to support outdoor use and help limit color change over time.

How durable is this enclosure against impact?

This enclosure carries an IK08 impact rating and is made from high impact resistant material. That makes it a good fit for applications where the housing may be exposed to routine physical contact or tougher operating conditions.

What temperature range can this enclosure handle?

This Boxco enclosure is specified for use from -40 degrees C to 70 degrees C. That range supports both cold and moderately hot operating environments within the stated limits.

What internal mounting features does this enclosure include?

The enclosure includes mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure installation of internal hardware such as mounting plates or DIN rail-based equipment.

What type of applications is this enclosure commonly used for?

This model is intended for protecting electronic instruments and housed components in industrial or commercial settings. Its IP67 sealing, ABS construction, anti-static properties, and impact resistance make it well suited for control, monitoring, and general equipment enclosure applications.
