Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-102307
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-102307 is a 100×230×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-102307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×230×70 mm (3.94×9.06×2.76 in)
Mounting plate dimension M1 × M2
80 × 210 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1023 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

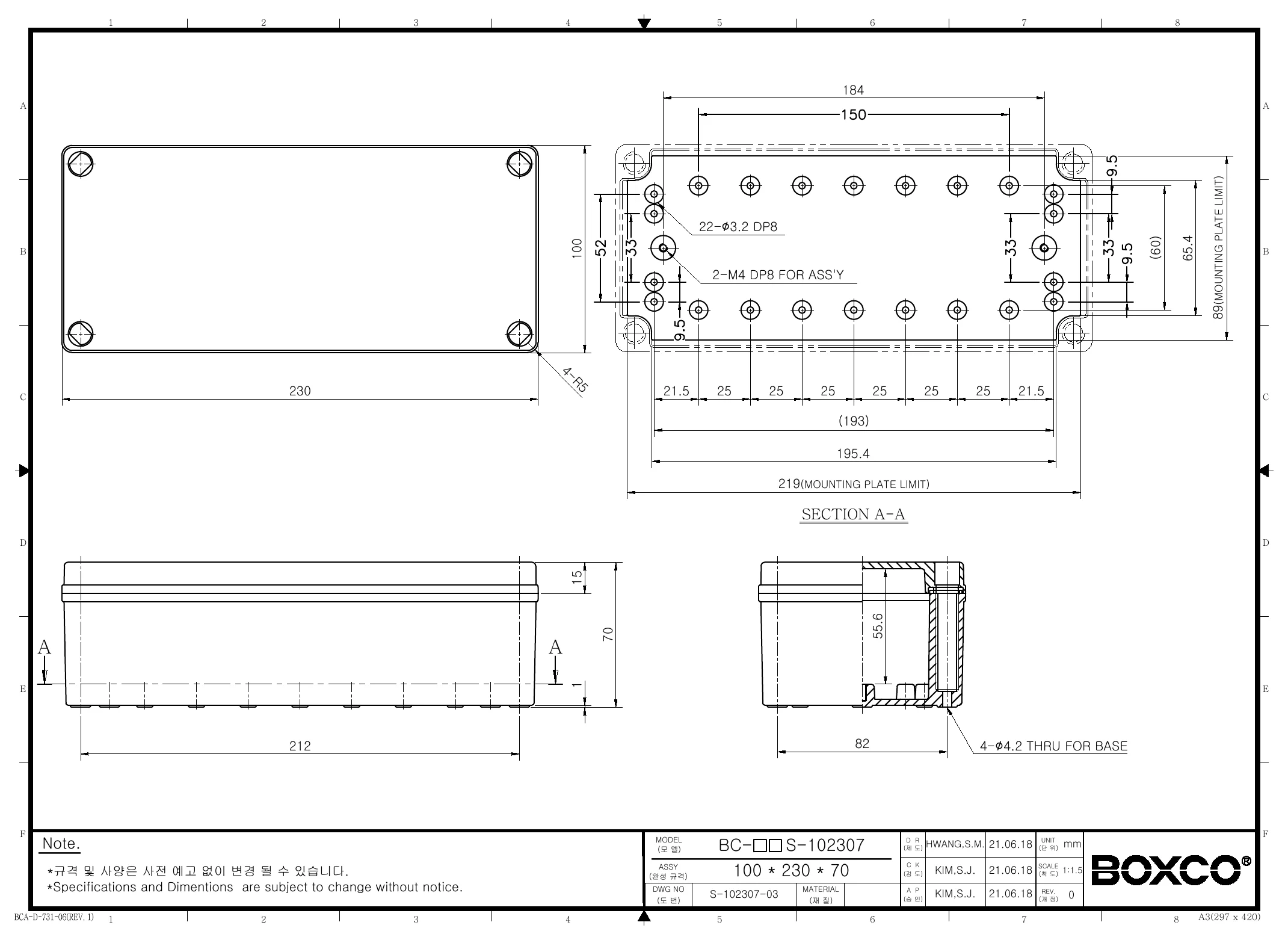

Technical drawings

BC-CGS-102307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-102307 enclosure?

This model is a plastic screw-type enclosure with external dimensions of 3.94 x 9.06 x 2.76 inches (100 x 230 x 70 mm). It has an IP67 rating for dust and water protection, an IK08 impact rating, and a grey polycarbonate cover. The listed product weight is 0.4500 kg.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco S-Series enclosure is designed for demanding environments, including outdoor use. The description states that an ultraviolet stabilizer is added to help reduce long-term color change outdoors, and the gasket is designed for strong waterproof and dust-proof performance. Its IP67 and IK08 ratings also support use where moisture, dust, and impact resistance matter.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 110 °C. That makes it suitable for applications exposed to both very low and high ambient temperatures. Buyers should still confirm the full system's temperature limits, not just the enclosure rating.

What types of applications is this enclosure commonly used for?

This enclosure is intended for protecting sensitive electronic instruments and other enclosed components that benefit from a sealed, impact-resistant housing. Its anti-static material, waterproof design, and internal equipment mounting features make it relevant for industrial, control, and outdoor equipment protection. It is especially useful where a durable non-metallic enclosure is preferred.

Does this enclosure support mounting internal components?

Yes, the product description highlights several features meant to support internal equipment mounting. It includes internal mounting plate attachment points with brass inserted injection molding, and it also has pre-molded mounting screw nuts for securing items such as DIN rail or other equipment. These features help accommodate heavier internal assemblies more securely.

What distinguishes this Boxco S-Series enclosure from a basic plastic box?

This model offers more than a basic utility box by combining IP67 sealing, IK08 impact resistance, anti-static material, and UV-stabilized construction. The design also includes molded-in attachment points and screw-thread strength features intended for more demanding commercial and industrial use. That makes it a stronger choice when durability and environmental protection are more important than simple cover-and-container functionality.
