Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-102307
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-102307 is a 100×230×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-102307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×230×70 mm (3.94×9.06×2.76 in)
Mounting plate dimension M1 × M2
80 × 210 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1023 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

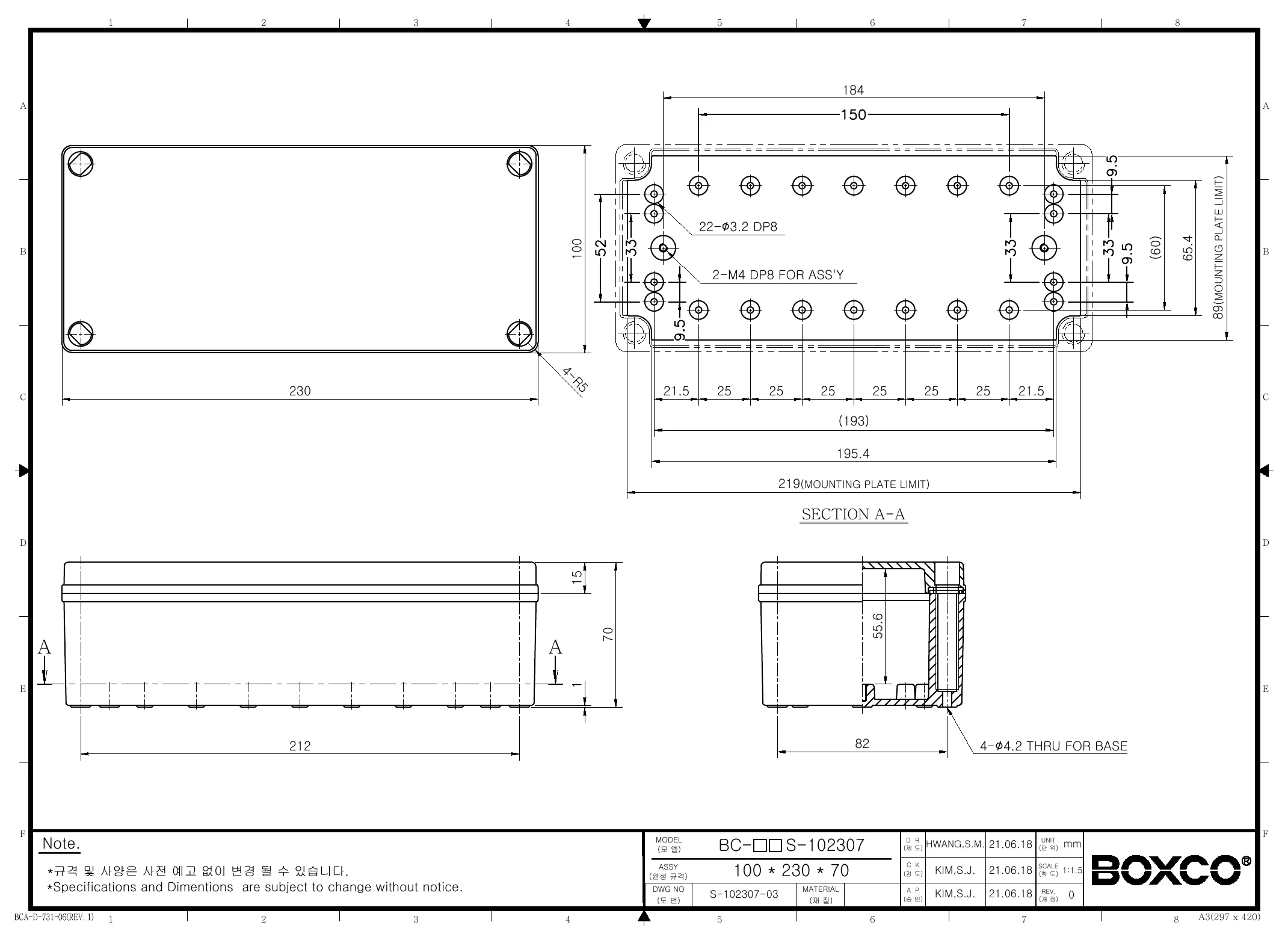

Technical drawings

BC-CTS-102307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What environments is the Boxco S-Series BC-CTS-102307 designed for?

This enclosure is built for demanding indoor or outdoor use where dust, water, and impact resistance matter. It carries an IP67 rating for protection against dust and water ingress and an IK08 impact rating for resistance to external impact. The product description also notes ultraviolet stabilizer material for outdoor exposure.

What are the dimensions of this enclosure?

The BC-CTS-102307 measures 3.94 x 9.06 x 2.76 inches, which corresponds to 100 x 230 x 70 mm. These dimensions make it a compact rectangular enclosure for protecting internal components while still offering useful internal space.

What material is this enclosure made from, and why does that matter?

This model uses PC, or polycarbonate, with a transparent cover. According to the product description, the material is high impact resistant and includes anti-static properties to help protect sensitive electronic instruments from static electricity.

Is this enclosure a good choice for outdoor applications?

Yes, this Boxco S-Series enclosure is intended for outdoor-capable use. The description states that an ultraviolet stabilizer is added to reduce color change over time, and the IP67 protection level supports use in exposed environments where dust and water resistance are needed.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 110 °C. That range supports use in both very cold and very hot environments, depending on the overall requirements of the application.

What mounting or internal equipment support features does this model include?

The product description highlights internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support securely mounting internal hardware such as a mounting plate or DIN rail-related equipment inside the enclosure.

How does the transparent cover affect product selection?

A transparent cover is useful when you want visual access to indicators, displays, or internal components without opening the enclosure. For buyers comparing enclosure styles, this can be an advantage over opaque-cover versions when visibility is important.
