Boxco

Boxco S-Series 125×175×100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-121710-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-121710-K is a 125×175×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CGS-121710-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×100 mm (4.92×6.89×3.94 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

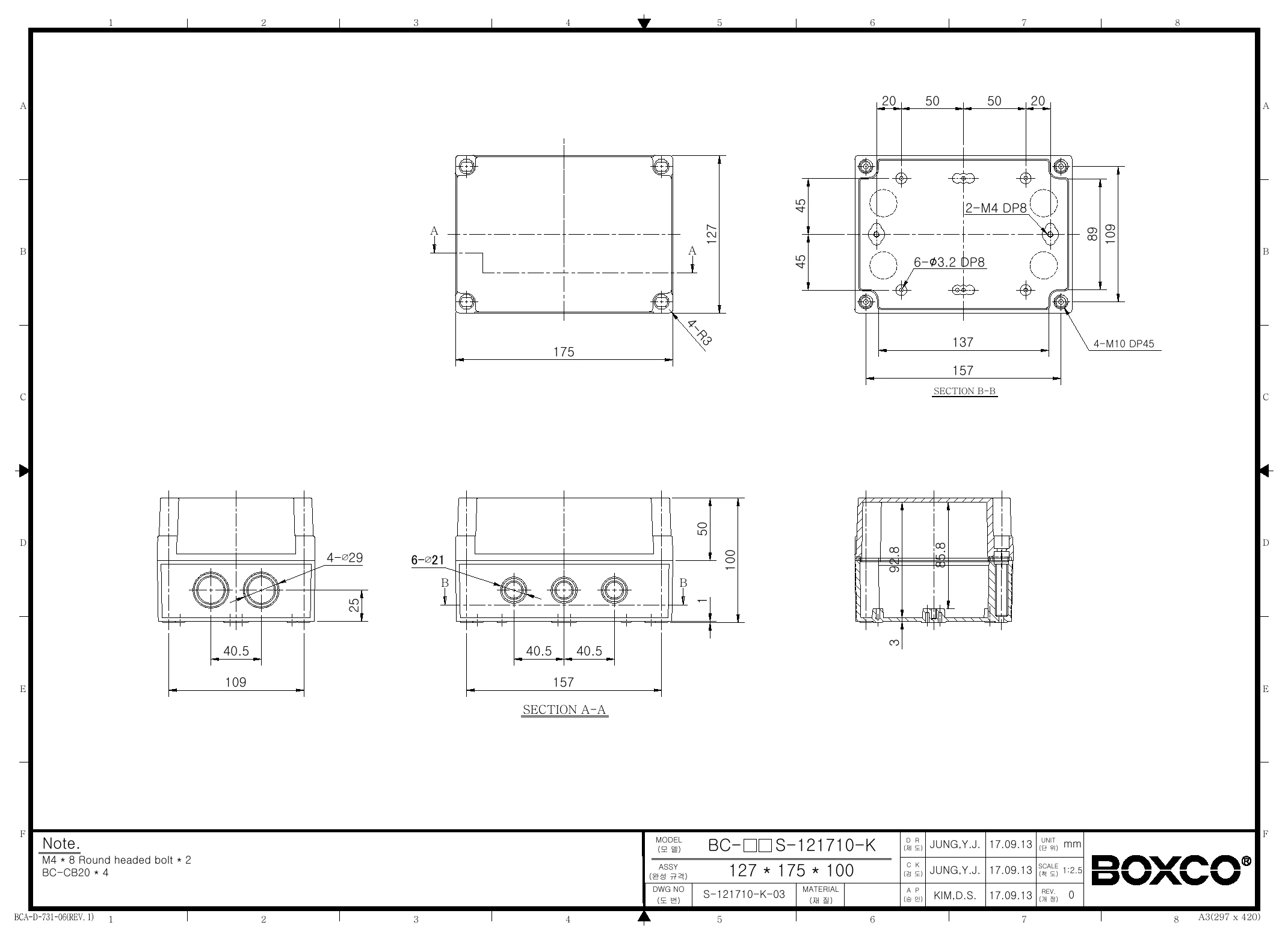

Technical drawings

BC-CGS-121710-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is designed for protecting components in industrial and commercial applications where a durable plastic housing is needed. Its IP67 and IK08 ratings make it a practical choice for environments that require resistance to dust, water ingress, and impact.

What are the dimensions of this enclosure?

This model measures 4.92 x 6.89 x 3.94 inches, which is 125 x 175 x 100 mm. Those dimensions make it suitable for applications that need a mid-size enclosure with added internal space compared with smaller junction box styles.

What material is this enclosure made from?

This model is made from PC, or polycarbonate. Polycarbonate is commonly selected for enclosure applications because it offers strong durability while keeping the housing lighter than many metal alternatives.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which means it is built to resist dust and temporary water immersion under rated conditions. That makes it a strong option for demanding indoor or outdoor environments where protection from moisture and contaminants is important.

What does the IK08 rating mean for this enclosure?

The IK08 rating indicates this enclosure is built for a solid level of impact resistance. For buyers comparing protection levels, that added durability helps support use in tougher industrial settings where accidental knocks or contact may occur.

What temperature range can this enclosure handle?

This enclosure is rated for temperatures from -40 degrees C to 110 degrees C. That wide operating range makes it suitable for applications exposed to both very cold and elevated temperature conditions.

Does this model have any special design features?

Yes, this screw-type enclosure includes a knock out base. It also features a grey cover and belongs to Boxco's S-Series, which is intended for protected enclosure applications requiring a secure screw-fastened design.
