Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x125x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-121210
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-121210 is a 125×125×100 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-121210Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×125×100 mm (4.92×4.92×3.94 in)
Mounting plate dimension M1 × M2
107 × 107 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1212 P (Plastic, P type), 1212 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

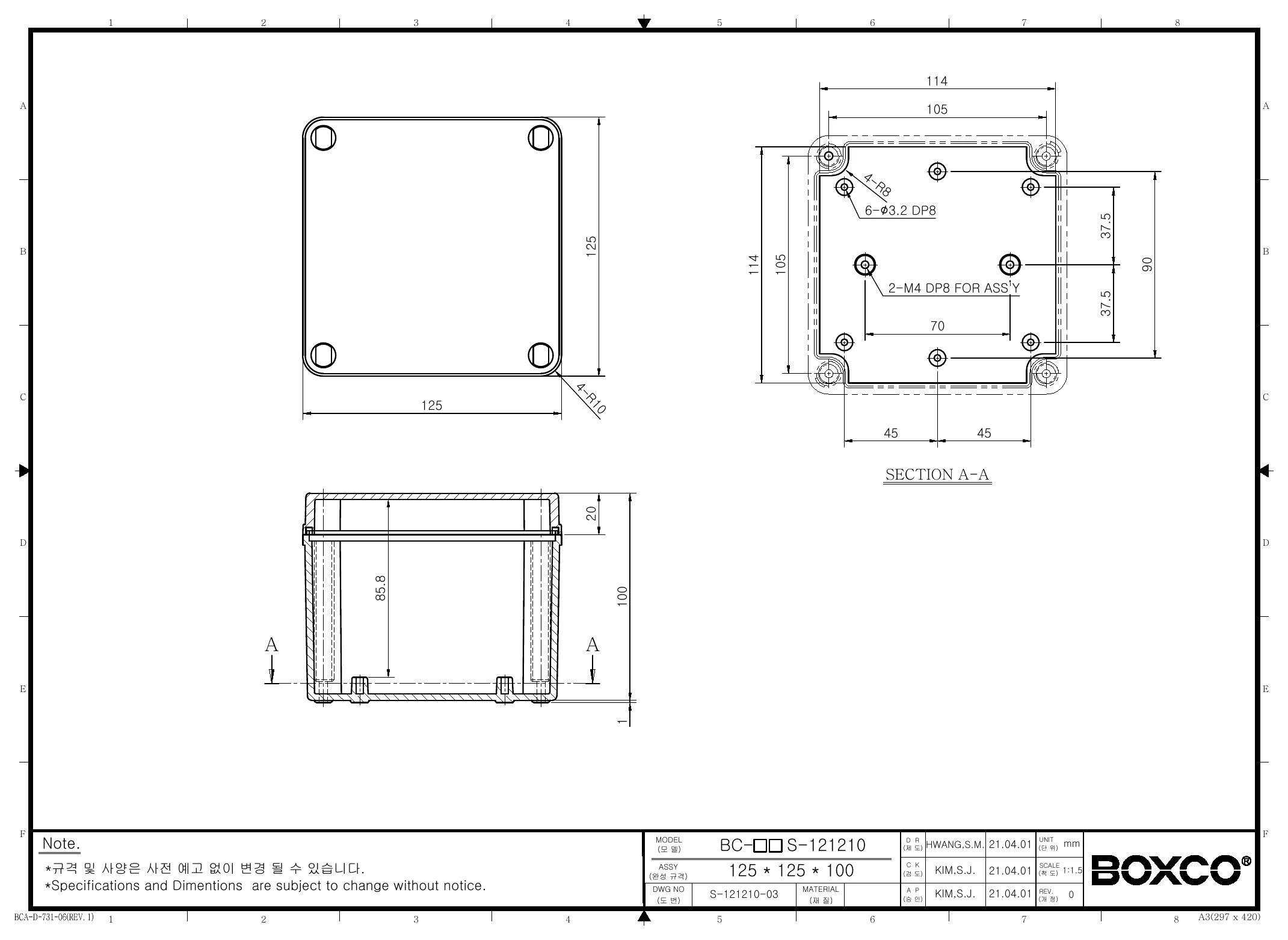

BC-AGS-121210 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco S-Series plastic enclosure is intended for protecting electrical or electronic components in industrial and commercial equipment housings. Its impact-resistant ABS construction, internal mounting features, and sealed design make it suitable for control, monitoring, and general-purpose equipment protection where a compact enclosure is needed.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water under rated conditions. The product description also notes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over time.

What are the key size and material specifications for this model?

This enclosure measures 4.92 x 4.92 x 3.94 inches, which corresponds to 125 x 125 x 100 mm. It is made of ABS and comes with a grey cover in a screw-type enclosure design.

How durable is the Boxco S-Series BC-AGS-121210 enclosure?

This model carries an IK08 impact rating, indicating solid resistance to mechanical impact for a plastic enclosure. The description also highlights high impact-resistant material and molded attachment points designed to support demanding industrial use.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and hot industrial environments, provided the full application stays within the product's published limits.

Does this enclosure support internal mounting accessories or hardware?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support mounting plates, DIN rail-related hardware, or other internal equipment that fits the enclosure's dimensions and design.
