Boxco

Boxco S-Series 125x125x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-121210
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-121210 is a 125×125×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-121210Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×125×100 mm (4.92×4.92×3.94 in)
Mounting plate dimension M1 × M2
107 × 107 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1212 P (Plastic, P type), 1212 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

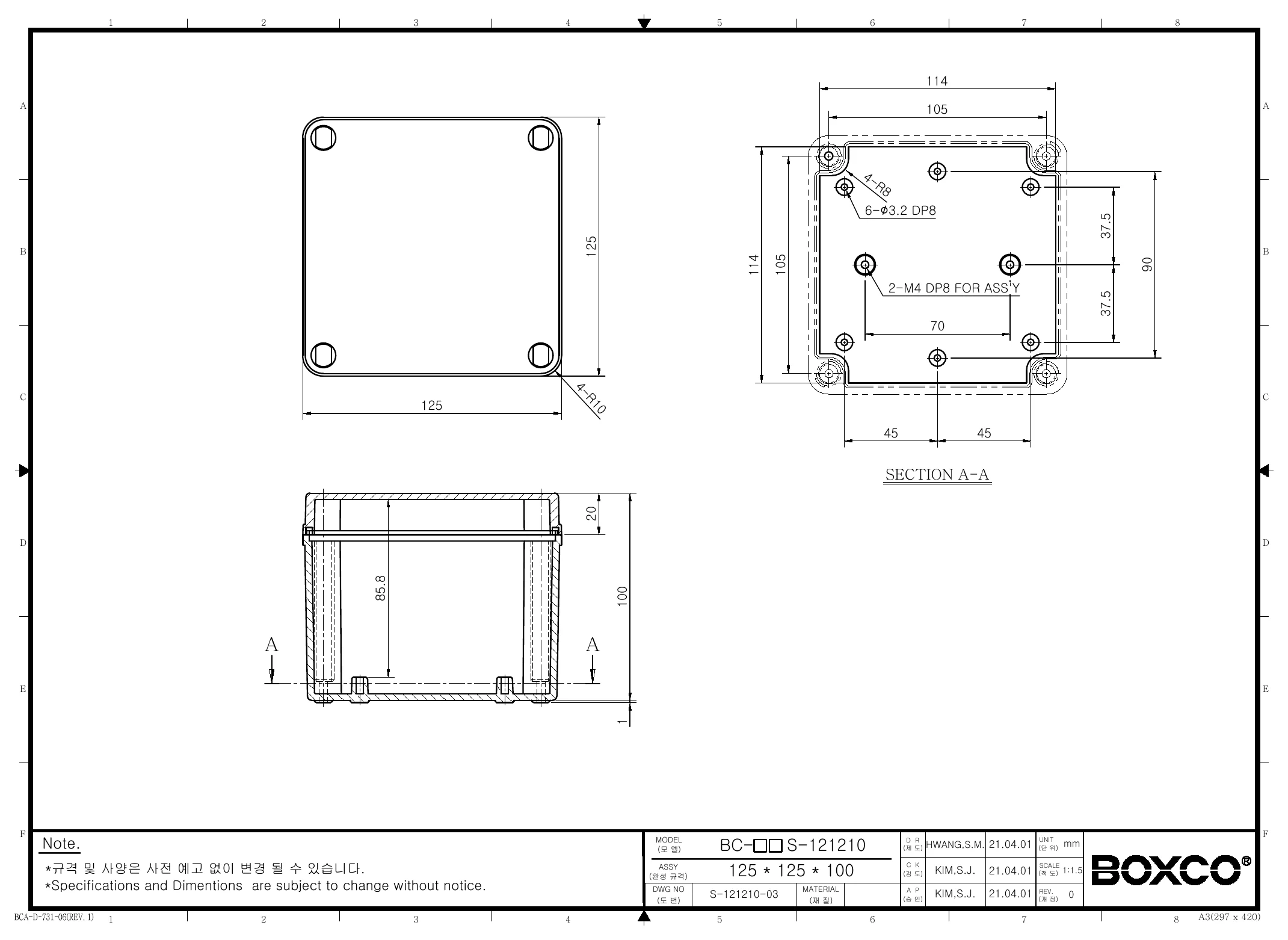

BC-CGS-121210 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CGS-121210 plastic enclosure suited for?

This model is suited for protecting sensitive electrical or electronic components in industrial and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and UV-stabilized construction make it a practical choice for control, monitoring, or protection equipment housings.

What are the key size and material specifications of this enclosure?

The BC-CGS-121210 measures 4.92 x 4.92 x 3.94 inches, which corresponds to 125 x 125 x 100 mm. It is made from PC material and comes with a grey cover in a screw-type enclosure design.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this enclosure is designed for demanding environments with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating. It also includes an ultraviolet stabilizer to reduce color change over long-term outdoor exposure.

What temperature range can this enclosure handle?

This model is rated for use from -40 °C to 110 °C. That range supports use in both cold and high-heat environments where standard plastic housings may be less suitable.

How does this model support internal equipment mounting?

The enclosure includes mounting plate attachment points with brass inserted injection molding for securely holding heavier internal equipment. It also has pre-molded mounting screw nuts that support adding DIN rail or other internal hardware.

What distinguishes this Boxco S-Series screw-type enclosure from a basic plastic box?

This model combines IP67 sealing, IK08 impact resistance, UV-stabilized PC material, and anti-static properties in one enclosure. It also includes molded features for stronger cover fastening and more secure internal mounting, which makes it more purpose-built than a generic plastic box.

What warranty and product weight should buyers expect for this model?

The listed warranty period for the BC-CGS-121210 is 1 year. The enclosure weight is 0.362 kg, which can be useful when planning handling, shipping, or panel load considerations.
