Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x125x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-121210
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-121210 is a 125×125×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-121210Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×125×100 mm (4.92×4.92×3.94 in)
Mounting plate dimension M1 × M2
107 × 107 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1212 P (Plastic, P type), 1212 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

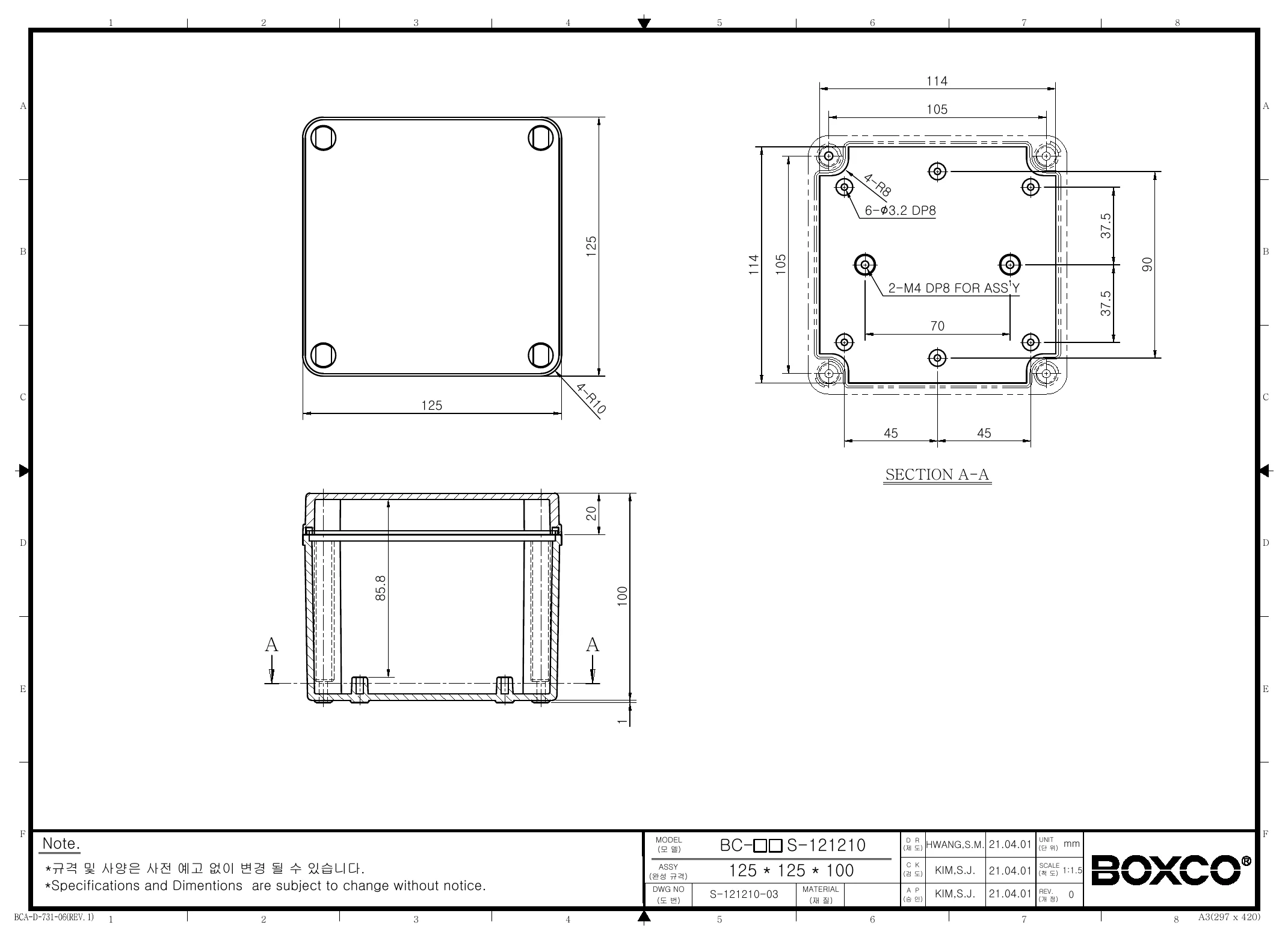

BC-CTS-121210 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-CTS-121210 enclosure?

This model measures 4.92 x 4.92 x 3.94 inches, which is 125 x 125 x 100 mm. That size makes it suitable when you need a compact enclosure with enough internal space for protected components.

Is this enclosure suitable for outdoor environments?

Yes, this S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The material is designed to resist noticeable color change over long-term exposure, while the IP67 rating supports protection against dust and water ingress.

What do the IP67 and IK08 ratings mean for this enclosure?

The IP67 rating indicates strong protection against dust and against temporary immersion in water under rated conditions. The IK08 rating shows the enclosure is built to handle a meaningful level of impact resistance, which aligns with the product's high-impact plastic construction.

What material is used in this enclosure and cover?

This model is made from polycarbonate (PC) and includes a transparent cover. The product description also notes anti-static material properties and high impact resistance, which helps protect sensitive electronics and reduce breakage during processing.

What kinds of applications is this plastic enclosure typically used for?

This enclosure is intended for protecting electronic instruments and other components that need dust, water, and impact protection. Its anti-static properties, transparent cover, and outdoor-capable construction make it relevant for industrial and commercial control or monitoring applications.

What temperature range can this enclosure handle?

The listed operating temperature range is -40°C to 110°C. That wide range helps this model fit demanding indoor or outdoor environments where temperature extremes are a concern.

Does this enclosure support mounting internal hardware?

Yes, the product description states that it includes internal mounting plate attachment points with brass inserted injection molding for securely holding heavier equipment. It also has pre-molded mounting screw nuts to support DIN rail or similar equipment mounting inside the enclosure.
