Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-121207
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-121207 is a 125×125×75 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-121207Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×125×75 mm (4.92×4.92×2.95 in)
Mounting plate dimension M1 × M2
107 × 107 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1212 P (Plastic, P type), 1212 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

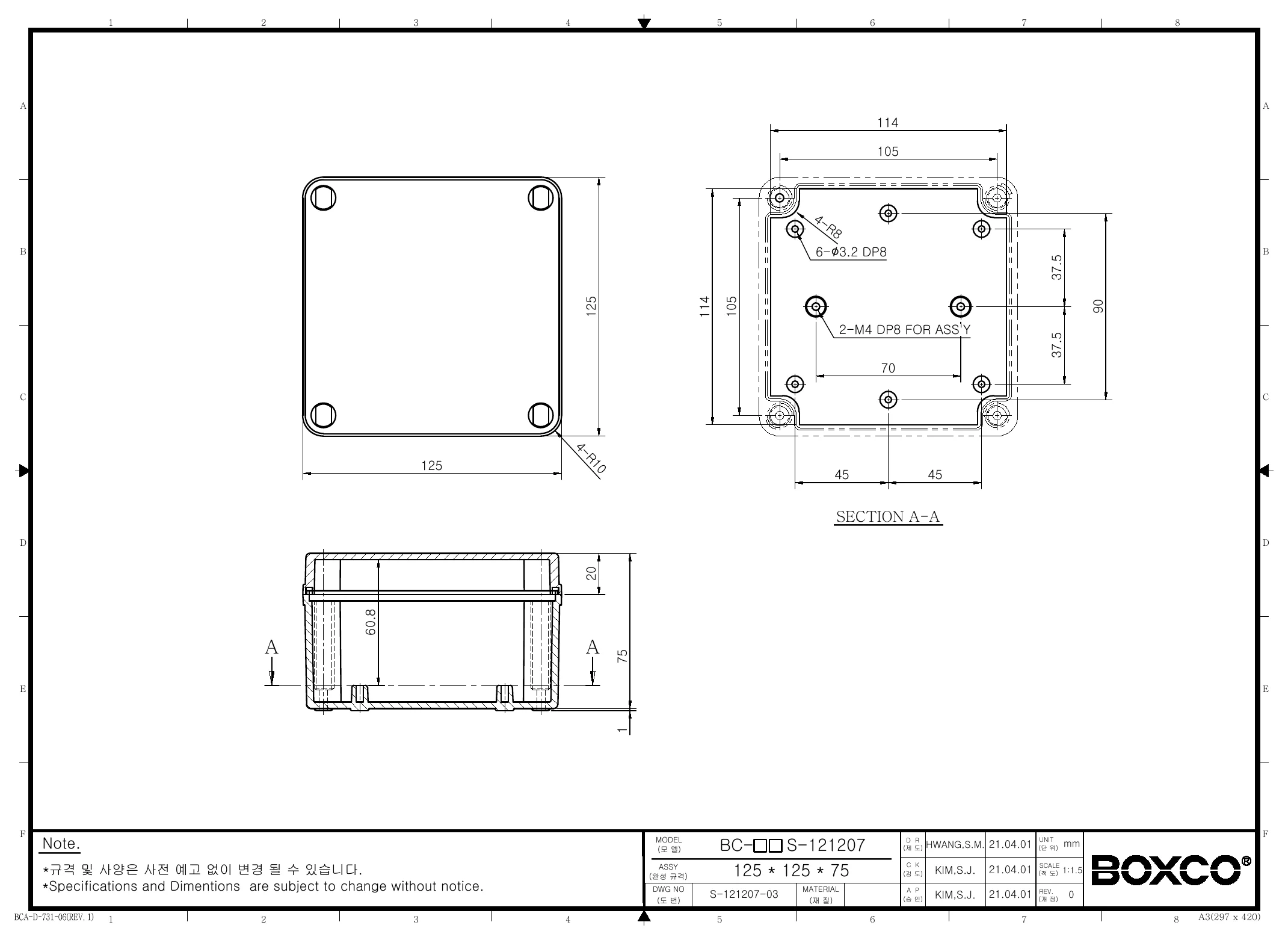

BC-CTS-121207 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the enclosure size for Boxco BC-CTS-121207?

This model measures 4.92 x 4.92 x 2.95 inches, which corresponds to 125 x 125 x 75 mm. It is a compact plastic enclosure sized for protecting internal components while still leaving usable internal space for control or monitoring assemblies.

Is the BC-CTS-121207 suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The S-Series material also includes an ultraviolet stabilizer, so it is intended to hold up better in outdoor use with less visible color change over time.

What does the transparent cover provide on this model?

The transparent polycarbonate cover allows visual inspection of indicators, displays, or internal status without opening the enclosure. That can be useful when the protected equipment needs to remain sealed while still being monitored.

How durable is this plastic enclosure against impact?

The BC-CTS-121207 carries an IK08 impact rating and is described as using high impact resistant material. Boxco also notes the construction helps resist breakage during hole and press processing, making it a stronger choice than lighter-duty housings.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C up to 110 °C. That wide operating range makes it suitable for demanding industrial and outdoor environments where temperatures can vary significantly.

What mounting or internal hardware features are built into the BC-CTS-121207?

This enclosure includes mounting plate attachment points with brass inserted injection molding for securing an internal mounting plate. It also has pre-molded mounting screw nuts to support DIN rail or other internal equipment mounting options.
