Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x175x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-121710
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-121710 is a 125×175×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-121710Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×100 mm (4.92×6.89×3.94 in)
Mounting plate dimension M1 × M2
110 × 160 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

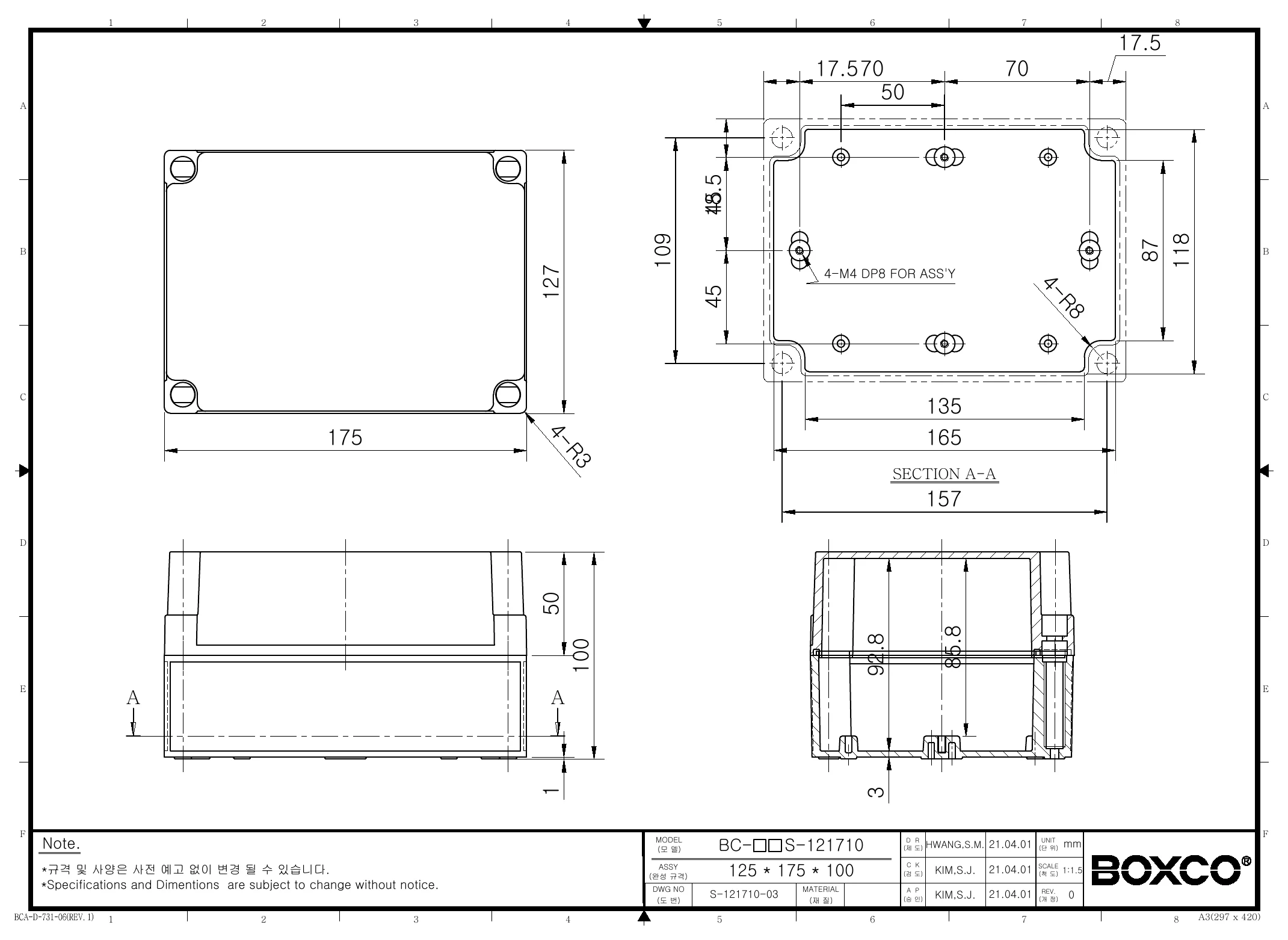

Technical drawings

BC-CGS-121710 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-121710 enclosure?

This model measures 4.92 x 6.89 x 3.94 inches, which corresponds to 125 x 175 x 100 mm. It is a plastic screw-type enclosure with a grey cover, an IP67 ingress rating, and an IK08 impact rating. The enclosure is made from PC material and weighs approximately 0.472 kg.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is designed for demanding environments where protection from dust and water is important, as indicated by its IP67 rating. The description also notes that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Buyers should still confirm that the full application conditions match their project requirements.

What kinds of applications is this plastic enclosure commonly used for?

This model is suited to protecting electronics and control components that need a sealed non-metallic housing. Its anti-static material and impact-resistant construction make it relevant for housing sensitive electronic instruments or industrial devices that need environmental protection. It is generally a fit where a compact, rugged enclosure is needed rather than a large cabinet-style housing.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 110 degrees C. That gives it a broad working range for both cold and hot environments. Buyers comparing enclosures for outdoor or industrial use often use this range as a key screening spec.

What features inside the enclosure help with mounting equipment?

The product description highlights internal mounting plate attachment points with brass inserted injection molding for securely fixing a mounting plate. It also includes pre-molded mounting screw nuts that can be used for DIN rail or other equipment mounting. These built-in features are intended to support heavier internal components more securely than a plain box interior.

How does this enclosure differ from a basic plastic junction box?

Compared with a basic plastic box, this model is positioned as a more robust enclosure with IP67 sealing, IK08 impact resistance, anti-static material, and UV-stabilized construction for outdoor exposure. The description also calls out CNC-injected gasketing and reinforced screw-thread attachment points. Those details make it more suitable for protective enclosure use where durability and environmental resistance matter.
