Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x175x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-121710
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-121710 is a 125×175×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-121710Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×100 mm (4.92×6.89×3.94 in)
Mounting plate dimension M1 × M2
110 × 160 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

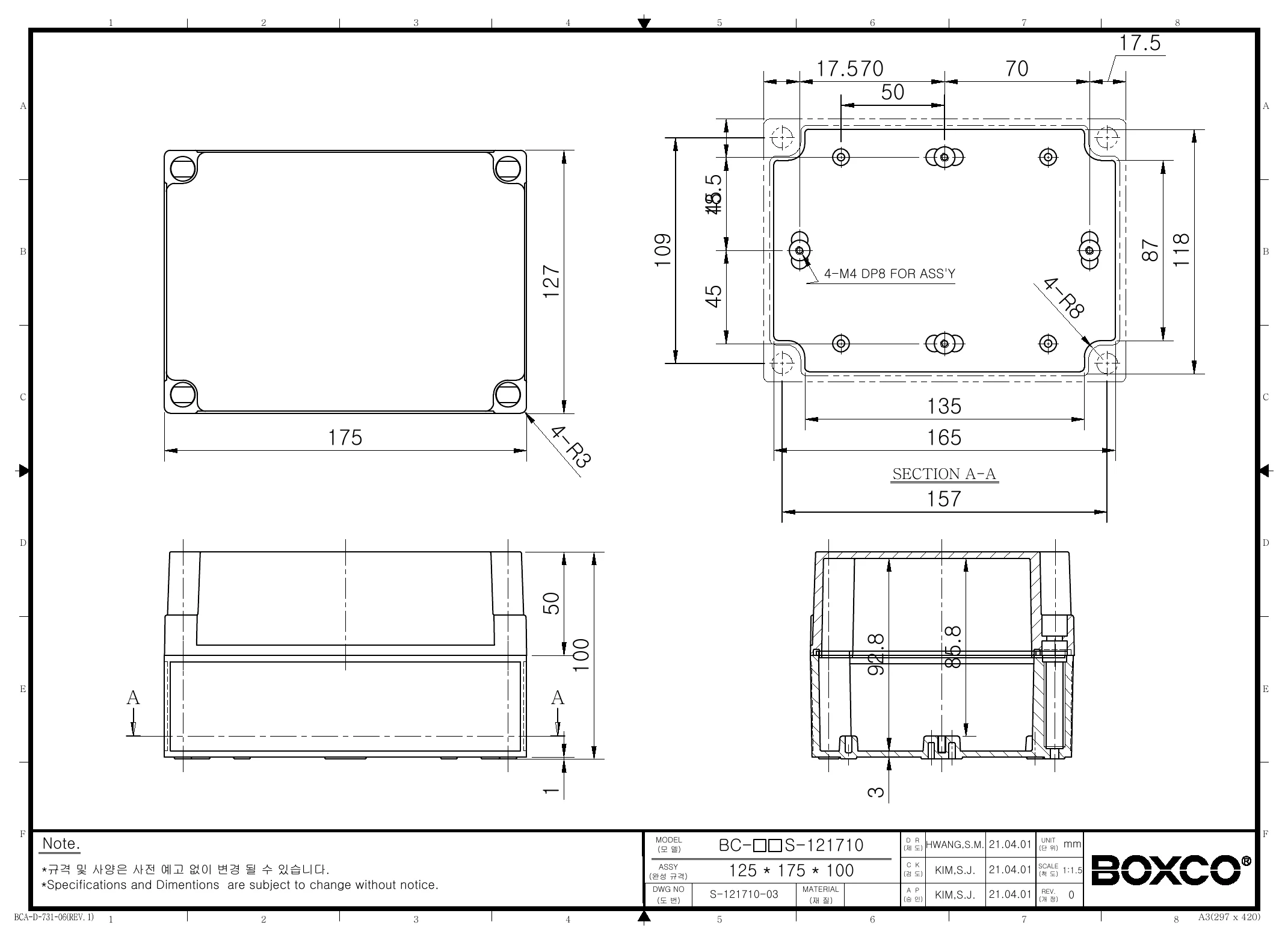

Technical drawings

BC-CTS-121710 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CTS-121710 enclosure suited for?

This model is a general-purpose plastic enclosure for protecting electronic equipment in industrial or outdoor environments where dust, moisture, and impact resistance matter. Its transparent cover also makes it useful when internal indicators or components need to remain visible without opening the box.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. The IP67 rating also supports use in demanding environments where protection against dust and water ingress is important.

What are the key protection ratings for this enclosure?

The BC-CTS-121710 is rated IP67 and IK08. That means it is designed for strong dust and water ingress protection and has a defined level of impact resistance for tougher operating conditions.

What material and cover style does this model use?

This enclosure is made from polycarbonate and uses a transparent screw-type cover. The polycarbonate construction is described as high impact resistant, and the clear lid helps with visual inspection of internal equipment.

What size is the BC-CTS-121710 enclosure?

This model measures 4.92 x 6.89 x 3.94 inches, which is 125 x 175 x 100 mm. That size gives more internal room than smaller compact enclosures while staying practical for control, monitoring, or protection applications.

What mounting or internal hardware features does this enclosure include?

Boxco lists internal mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also includes pre-molded mounting screw nuts that can be used for DIN rail or other internal hardware, plus a precision-injected gasket for waterproof and dust-proof performance.

What operating temperature range and warranty does this enclosure have?

The specified temperature range is -40 degrees C to 110 degrees C. This model also carries a 1-year warranty.
