Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x175x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-121707
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-121707 is a 125×175×75 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-121707Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×75 mm (4.92×6.89×2.95 in)
Mounting plate dimension M1 × M2
110 × 160 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

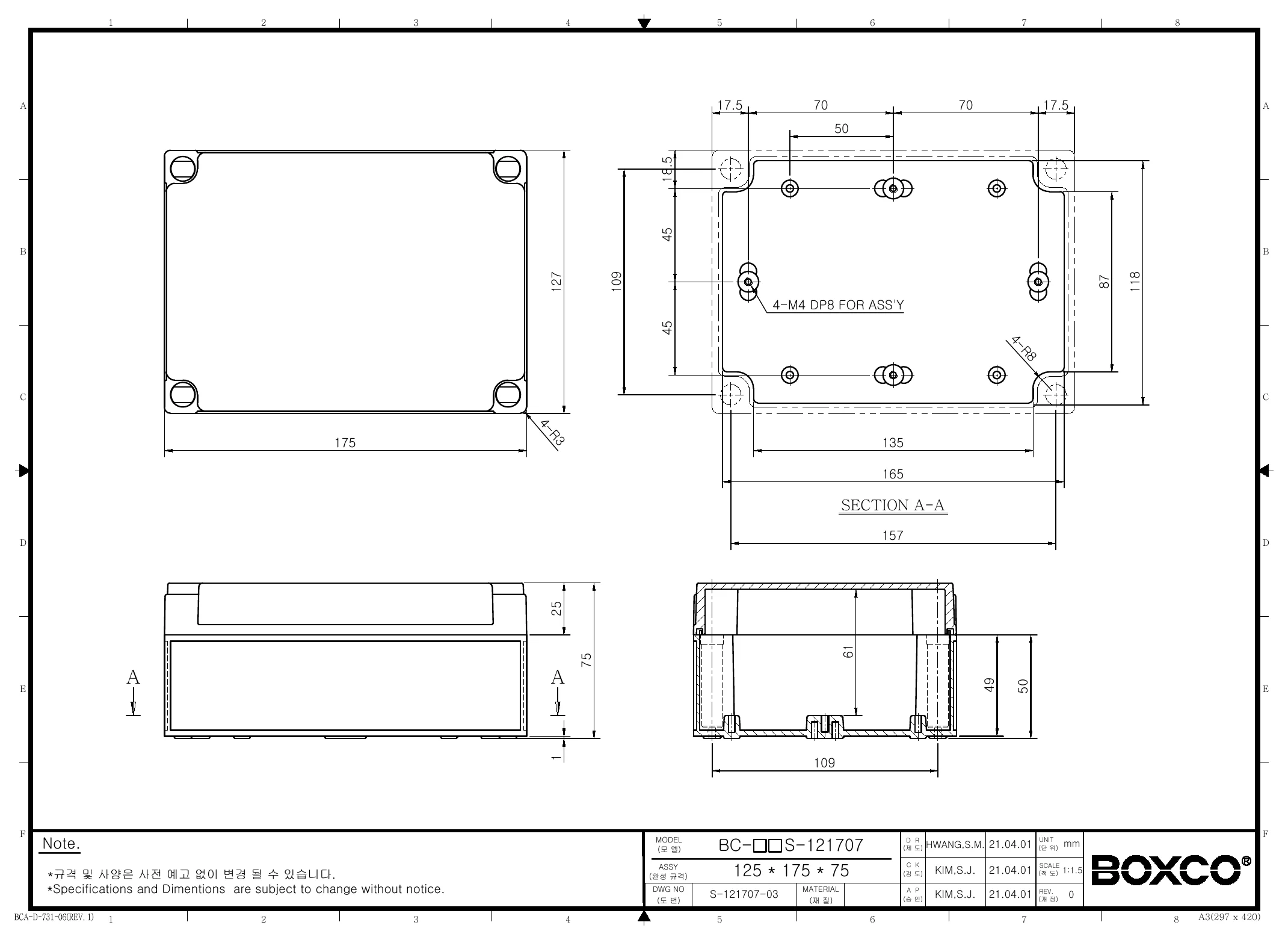

Technical drawings

BC-CGS-121707 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is used to protect electronic and control components in industrial and commercial applications where a sealed plastic housing is needed. Its IP67 rating, IK08 impact resistance, and UV-stabilized polycarbonate construction make it a practical choice for indoor or outdoor equipment protection.

What are the dimensions of this enclosure?

This model measures 4.92 x 6.89 x 2.95 inches, which is 125 x 175 x 75 mm. That size makes it suitable for applications needing a compact enclosure with enough internal space for mounted components and accessories.

Is this enclosure suitable for outdoor environments?

Yes, this S-Series enclosure is designed with an ultraviolet stabilizer to support outdoor use. The material is intended to resist long-term color change and maintain durability when exposed to outdoor conditions.

How well does this enclosure protect against water, dust, and impact?

This model is rated IP67, which means it is built for strong protection against dust ingress and temporary immersion in water under rated conditions. It also carries an IK08 impact rating, indicating good resistance to external mechanical impact for a plastic enclosure.

What material is this enclosure made from?

This enclosure is made from polycarbonate (PC) and has a grey cover. The product description also notes anti-static material use and high impact resistance, which helps protect sensitive instruments and supports durability during machining or modification processes.

What internal mounting features does this enclosure include?

This model includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of mounting plates, DIN rail, or other internal equipment within the enclosure body.

What temperature range can this enclosure handle?

This enclosure is specified for temperatures from -40 °C to 110 °C. That range makes it suitable for demanding environments where both low-temperature and elevated-temperature performance are important.
