Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 125x175x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-121707
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-121707 is a 125×175×75 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-121707Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×175×75 mm (4.92×6.89×2.95 in)
Mounting plate dimension M1 × M2
110 × 160 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

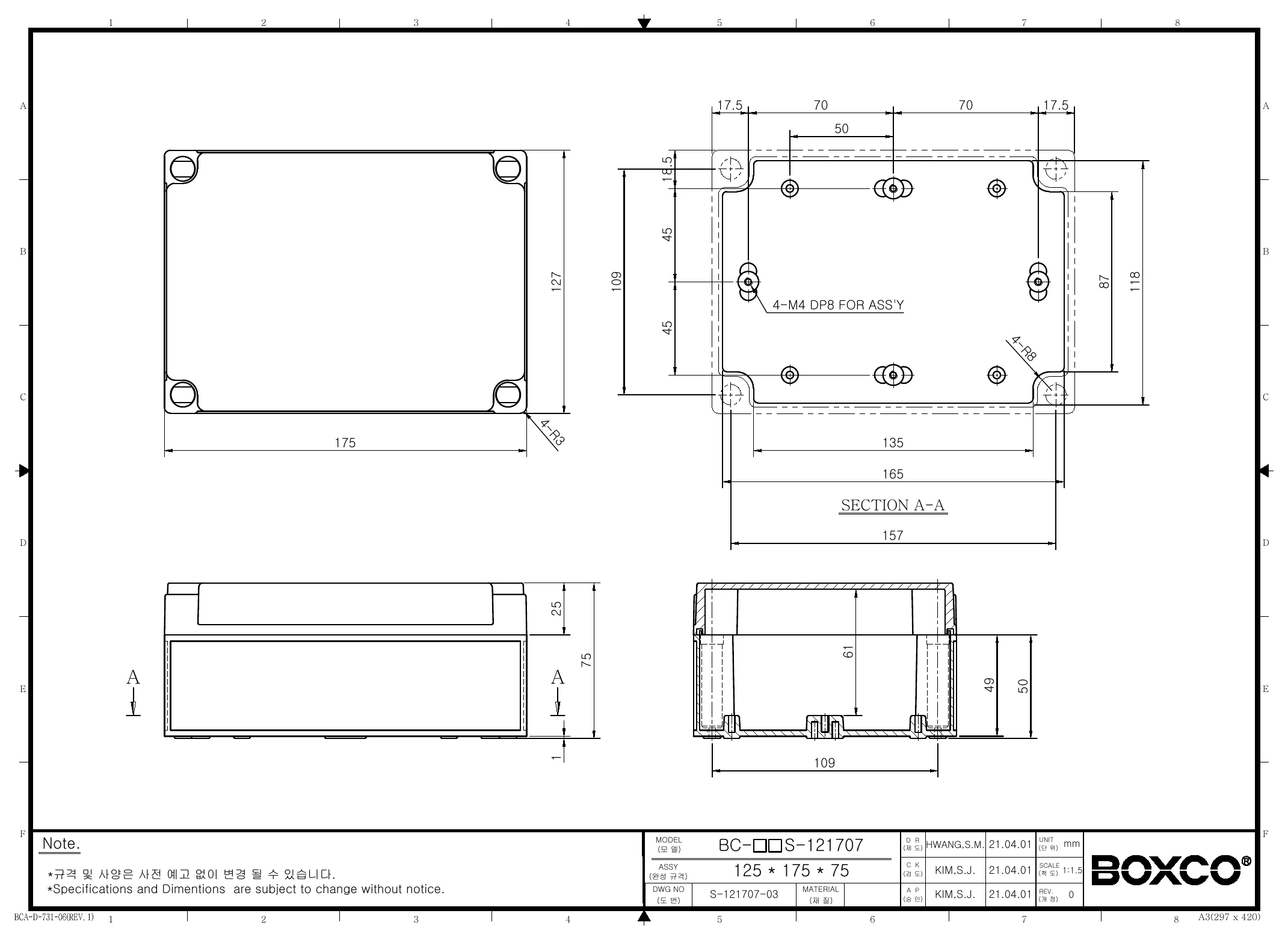

Technical drawings

BC-CTS-121707 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CTS-121707 enclosure suited for?

This model is designed for protecting electronic components and instruments in industrial or commercial environments where dust, water, and impact resistance matter. Its transparent cover is useful when internal indicators or components need to remain visible without opening the enclosure.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to help protect it in outdoor conditions and reduce noticeable color change over time. It also carries an IP67 rating for strong protection against dust and water ingress.

What are the key specifications of the BC-CTS-121707 enclosure?

This enclosure measures 4.92 x 6.89 x 2.95 inches (125 x 175 x 75 mm) and weighs 0.4500 kg. It is made from polycarbonate (PC), uses a transparent screw-type cover, and is rated IP67 and IK08.

How durable is this plastic enclosure?

This model is built from high impact resistant polycarbonate and carries an IK08 impact rating. Boxco also notes the material is designed to resist breakage during hole and press processing, making it a strong choice for demanding enclosure applications.

What temperature range can this enclosure handle?

The BC-CTS-121707 is specified for use from -40 °C to 110 °C. That wide operating range makes it suitable for environments with both low and high temperature exposure.

What internal mounting support does this enclosure provide?

This enclosure includes mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that support fastening compatible internal hardware such as DIN rail accessories.
