Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-141709
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-141709 is a 143×173×95 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-141709Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
143×173×95 mm (5.63×6.81×3.74 in)
Mounting plate dimension M1 × M2
126 × 156 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1417 P (Plastic, P type), 1417 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

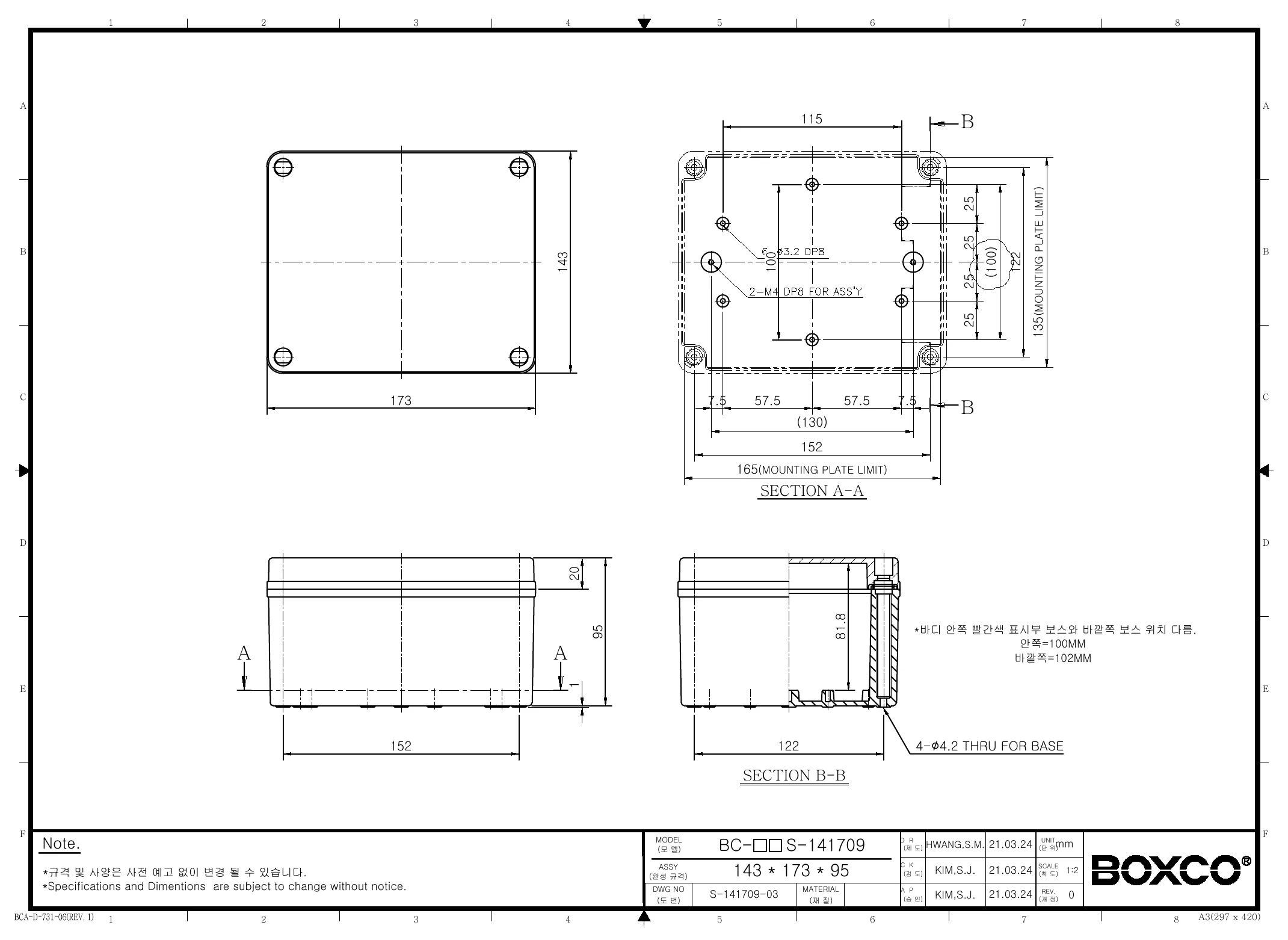

Technical drawings

BC-CGS-141709 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key dimensions of the Boxco S-Series BC-CGS-141709 enclosure?

This model measures 5.51 x 6.69 x 3.74 inches, which corresponds to 140 x 170 x 95 mm. It is a compact plastic enclosure intended for protecting components in applications where a sealed housing is needed.

Is the BC-CGS-141709 suitable for outdoor or harsh environments?

Yes. This enclosure is rated IP67 for dust-tight and water-resistant protection, and IK08 for impact resistance. Its material also includes an ultraviolet stabilizer, which helps maintain performance and appearance during long-term outdoor use.

What material is this enclosure made from?

The BC-CGS-141709 is made from polycarbonate (PC). The product description also notes anti-static material use and high impact resistance, making it suitable for protecting sensitive equipment in demanding industrial environments.

What temperature range can this Boxco enclosure handle?

This model is specified for use from -40 degrees C up to 110 degrees C. That range supports use in both cold and high-heat environments where a standard-purpose enclosure may not be sufficient.

What mounting and internal equipment support features does this enclosure include?

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing compatible internal hardware. It also has molded cover bolt attachment points designed to provide strong thread retention in repeated service conditions.

What makes this screw-type enclosure different from a basic plastic box?

This model combines a screw-type cover with IP67 sealing, IK08 impact resistance, UV-stabilized material, and anti-static protection. It is designed as a more durable and application-ready option than a basic general-purpose plastic enclosure.
