Boxco

Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-141709
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-141709 is a 143×173×95 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-141709Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
143×173×95 mm (5.63×6.81×3.74 in)
Mounting plate dimension M1 × M2
126 × 156 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1417 P (Plastic, P type), 1417 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

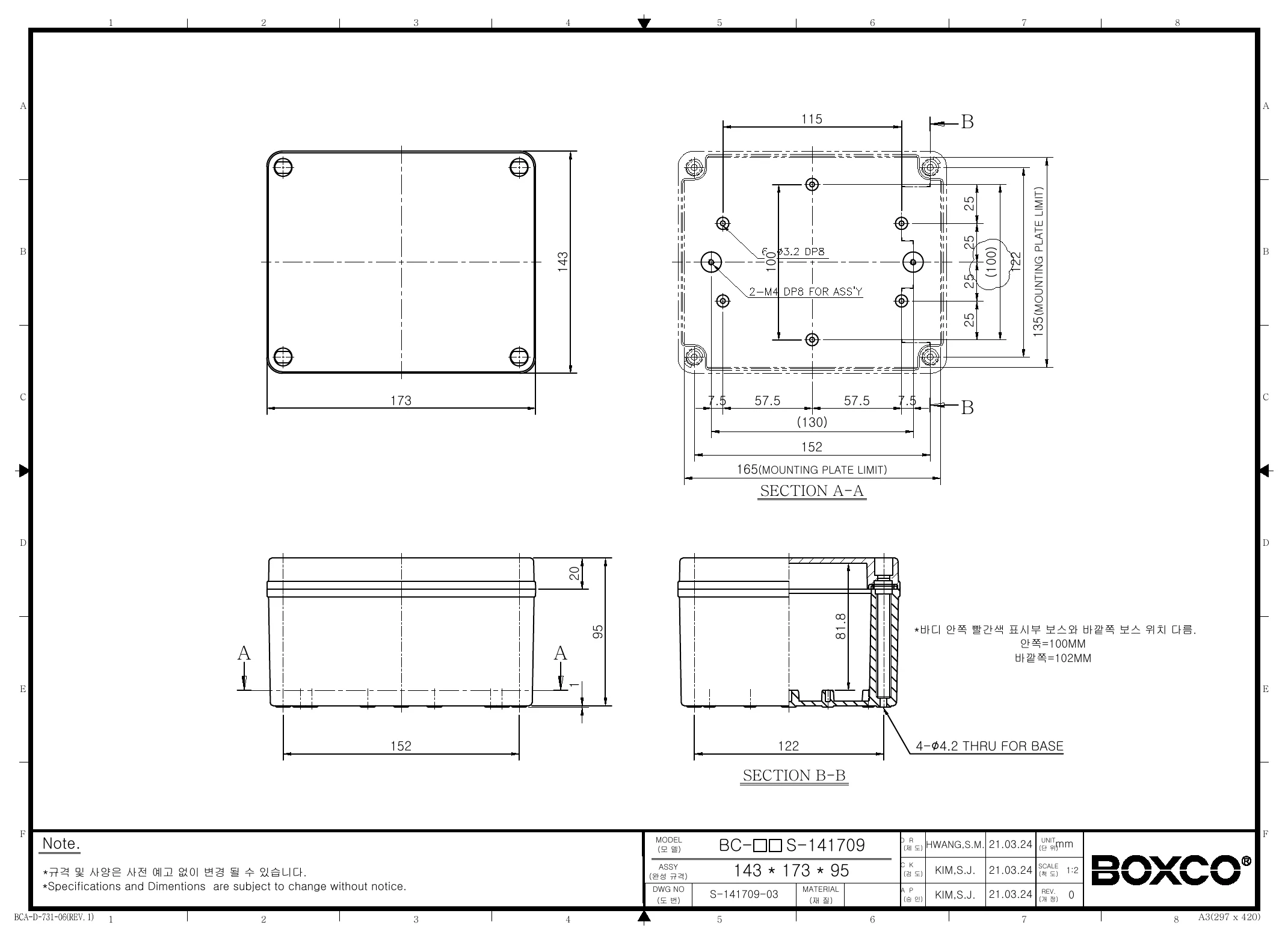

Technical drawings

BC-CTS-141709 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 140x170x95 mm plastic enclosure best suited for?

This model is suited to protecting sensitive electronic equipment in industrial, commercial, and outdoor control box applications where a sealed non-metallic enclosure is needed. Its IP67 ingress rating, IK08 impact resistance, and polycarbonate construction make it a practical choice for environments where dust, water, and incidental impact are concerns.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports use in demanding environments where strong resistance to dust and water ingress is required.

What are the main specifications of this Boxco enclosure?

This enclosure measures 5.51 x 6.69 x 3.74 inches (140 x 170 x 95 mm) and weighs 0.91 kg. It uses polycarbonate material with a transparent cover, has an IP67 rating, an IK08 impact rating, and an operating temperature range of -40 degrees C to 110 degrees C.

Why would a buyer choose the transparent cover version of this enclosure?

The transparent cover makes this version useful when components, displays, or status indicators need to remain visible without opening the box. For B2B buyers, that can simplify routine inspection while keeping the enclosure closed and protected.

Is this enclosure compatible with internal mounting hardware or panel components?

Yes. The product description notes internal mounting plate attachment points with brass inserted injection molding, along with pre-molded screw nuts for securing DIN rail or other equipment. That makes this model better suited for builds that need more secure internal hardware mounting than a plain empty box.
