Boxco

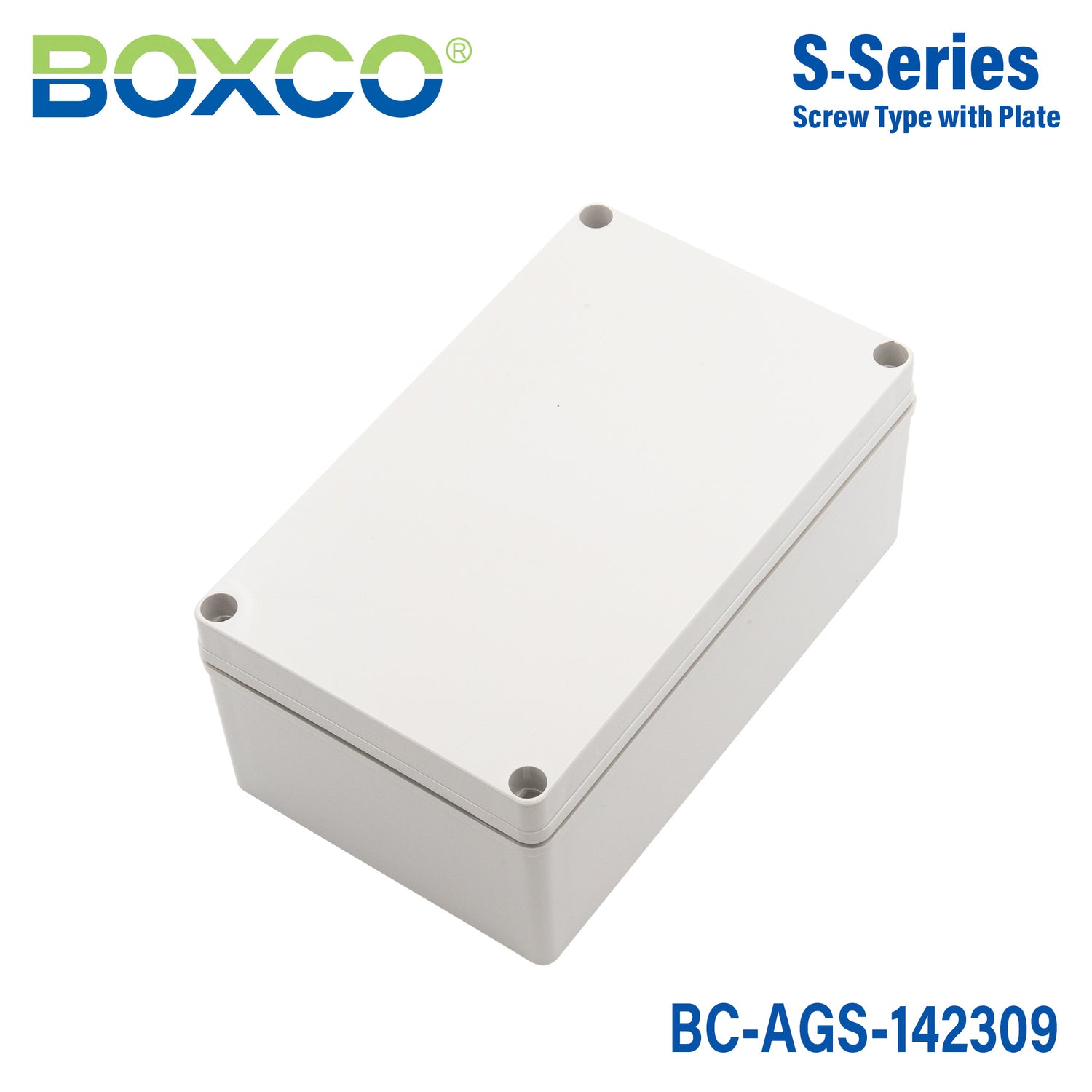

Boxco S-Series 140x230x95mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-142309
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-142309 is a 140×230×95 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-142309Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
140×230×95 mm (5.51×9.06×3.74 in)
Mounting plate dimension M1 × M2
123 × 212 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1423 P (Plastic, P type), 1423 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

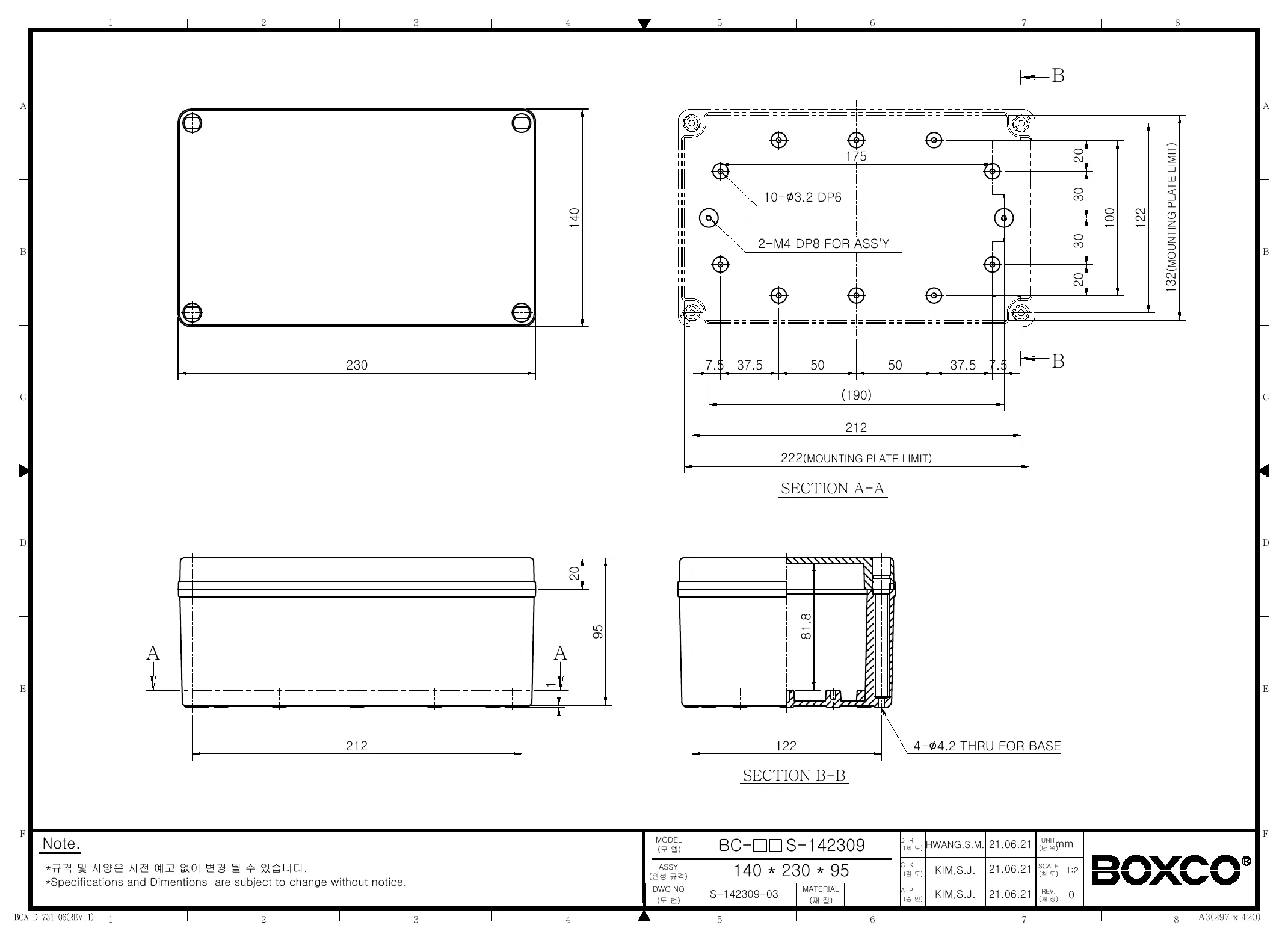

BC-AGS-142309 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-AGS-142309 enclosure?

This enclosure measures 5.51 x 9.06 x 3.74 inches, which corresponds to 140 x 230 x 95 mm. Those dimensions make it a mid-size plastic enclosure suited to protecting internal components while still fitting in compact equipment layouts.

Is the BC-AGS-142309 suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. Its description also notes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

How durable is this plastic enclosure against impact?

The BC-AGS-142309 has an IK08 impact rating and is made from high impact resistant ABS. Boxco also describes the material as resistant to breakage during hole and press processing, which supports demanding industrial use.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports indoor and outdoor applications where the enclosure may be exposed to cold weather or elevated operating temperatures.

What kinds of applications is this Boxco enclosure commonly used for?

This enclosure is appropriate for protecting electronic instruments and other housed components that need dust and water resistance. The anti-static material and secure internal mounting features make it a practical choice for industrial and outdoor equipment enclosures.

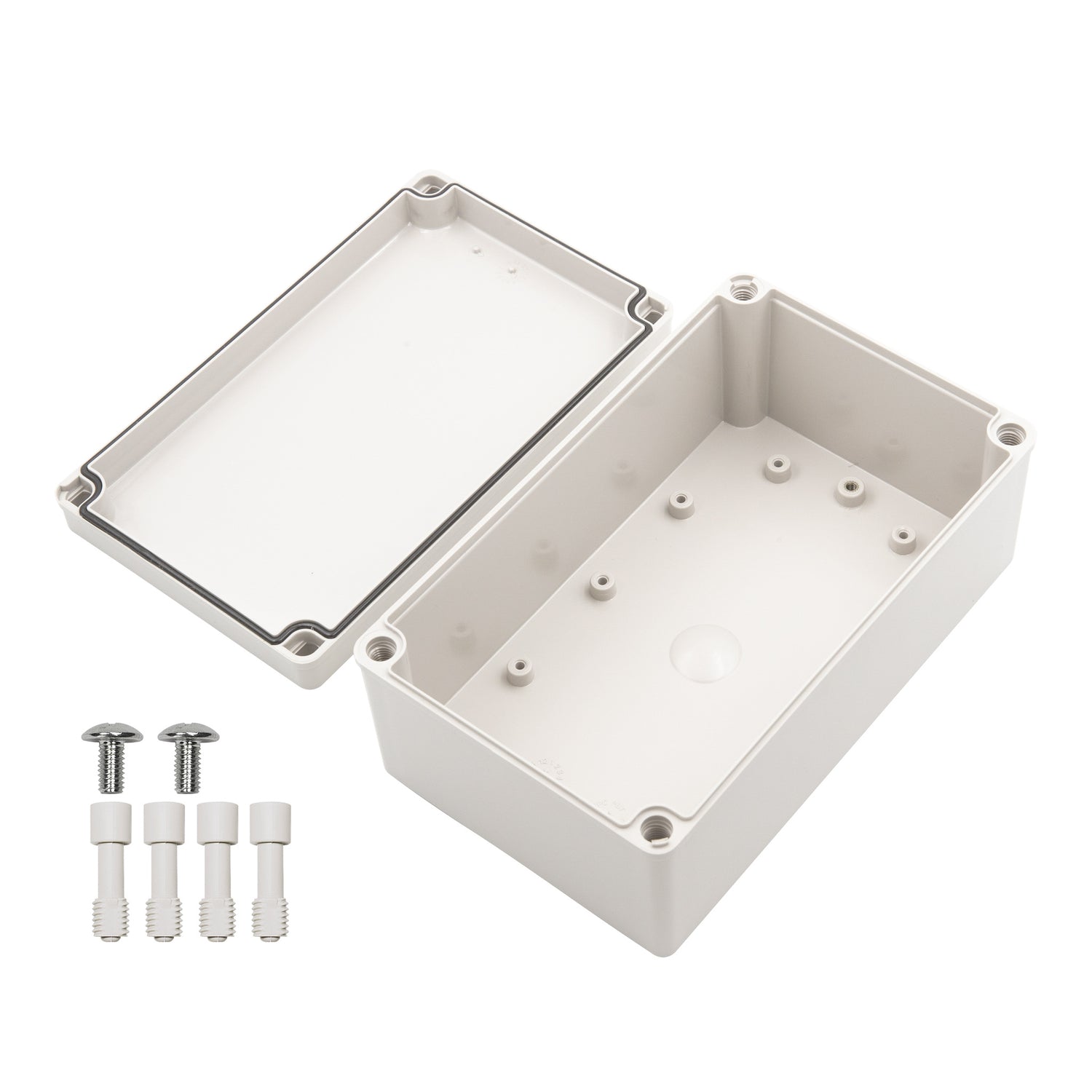

What internal mounting features does the BC-AGS-142309 include?

The product description states that it has mounting plate attachment points with brass inserted injection molding for tightly securing an internal mounting plate. It also includes pre-molded mounting screw nuts that can be used to fasten DIN rail or other equipment inside the enclosure.
