Boxco

Boxco S-Series 150×250×130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

S-SeriesABSPolycarbonate4 side sliding type
SKU BC-CGS-152513
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-152513 is a 150×250×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-152513Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×250×130 mm (5.91×9.84×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

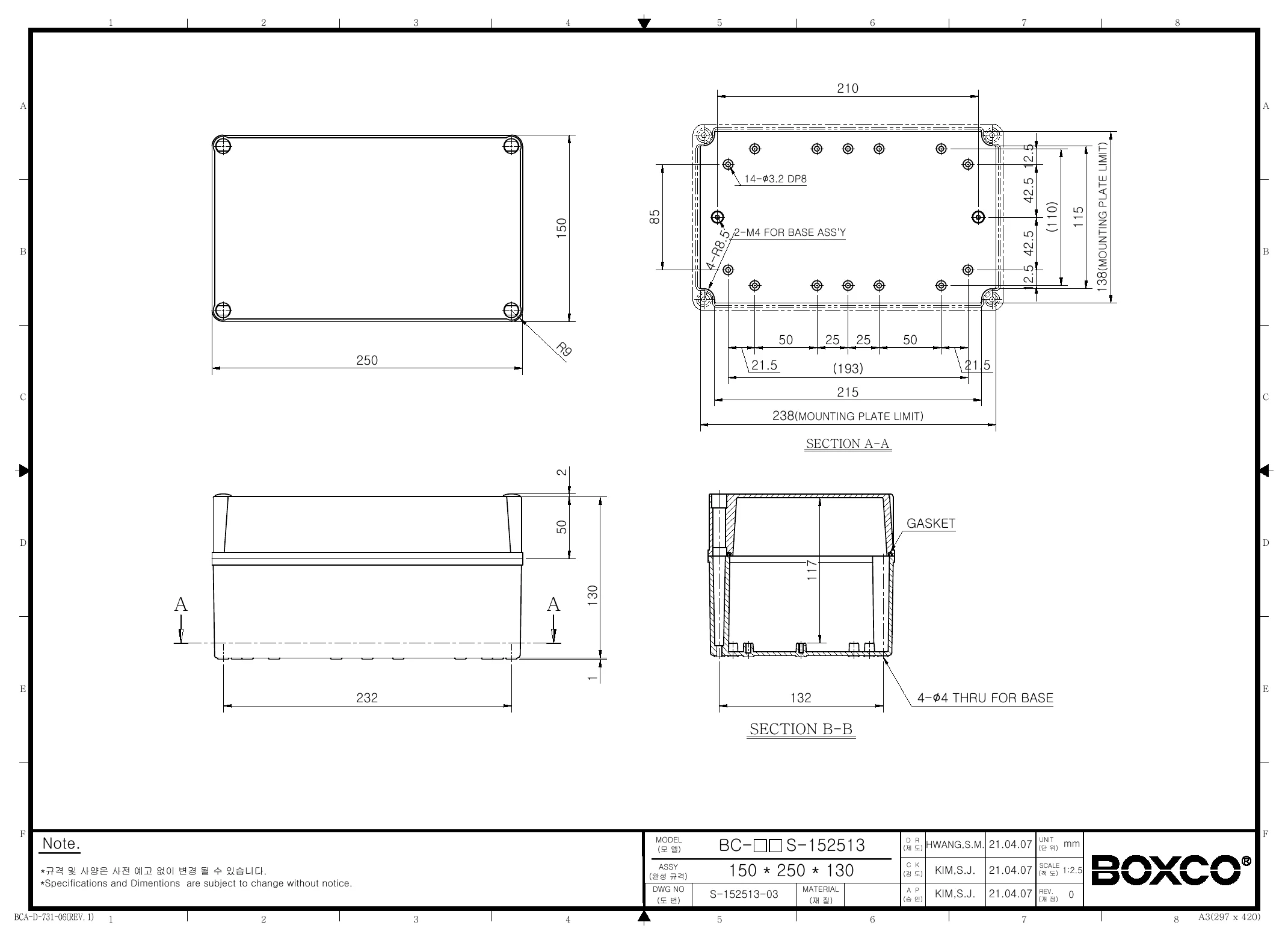

BC-CGS-152513 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

Yes. This Boxco S-Series enclosure includes an ultraviolet stabilizer to help protect it in outdoor environments and reduce noticeable color change over time. Its IP67 rating also supports strong protection against dust and water ingress.

What material is this enclosure made from?

This model is made from polycarbonate (PC). The product description also notes anti-static material use to help protect sensitive electronic instruments from static electricity, along with high impact resistance for demanding applications.

What do the IP67 and IK08 ratings mean for this model?

IP67 indicates this enclosure is designed for strong dust protection and water resistance. IK08 indicates impact resistance, which makes it a practical choice for industrial and commercial environments where the enclosure may be exposed to physical contact or knocks.

What are the dimensions of this Boxco S-Series enclosure?

This model measures 9.84 x 5.91 x 5.12 inches, which is also listed as 150 x 250 x 130 mm. Those dimensions make it suitable when you need a compact enclosure with enough internal space for protected components and mounting hardware.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 °C to 110 °C. That wide operating range makes it suitable for applications exposed to both low and high ambient temperatures.

What kinds of applications is this enclosure commonly used for?

This model is a good fit for protecting sensitive electronic instruments and other components that need dust, water, and impact protection. It is especially relevant for industrial or outdoor equipment housings where polycarbonate construction, anti-static properties, and IP67 performance are important.

What does 'screw type' mean on this enclosure?

Screw type refers to the cover style on this model, which uses screws to secure the grey cover to the enclosure body. The product description also notes molded cover bolt attachment points to help provide strength at the fastening locations.
