Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 150x150x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-151510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-151510 is a 150×150×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-151510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×100 mm (5.91×5.91×3.94 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

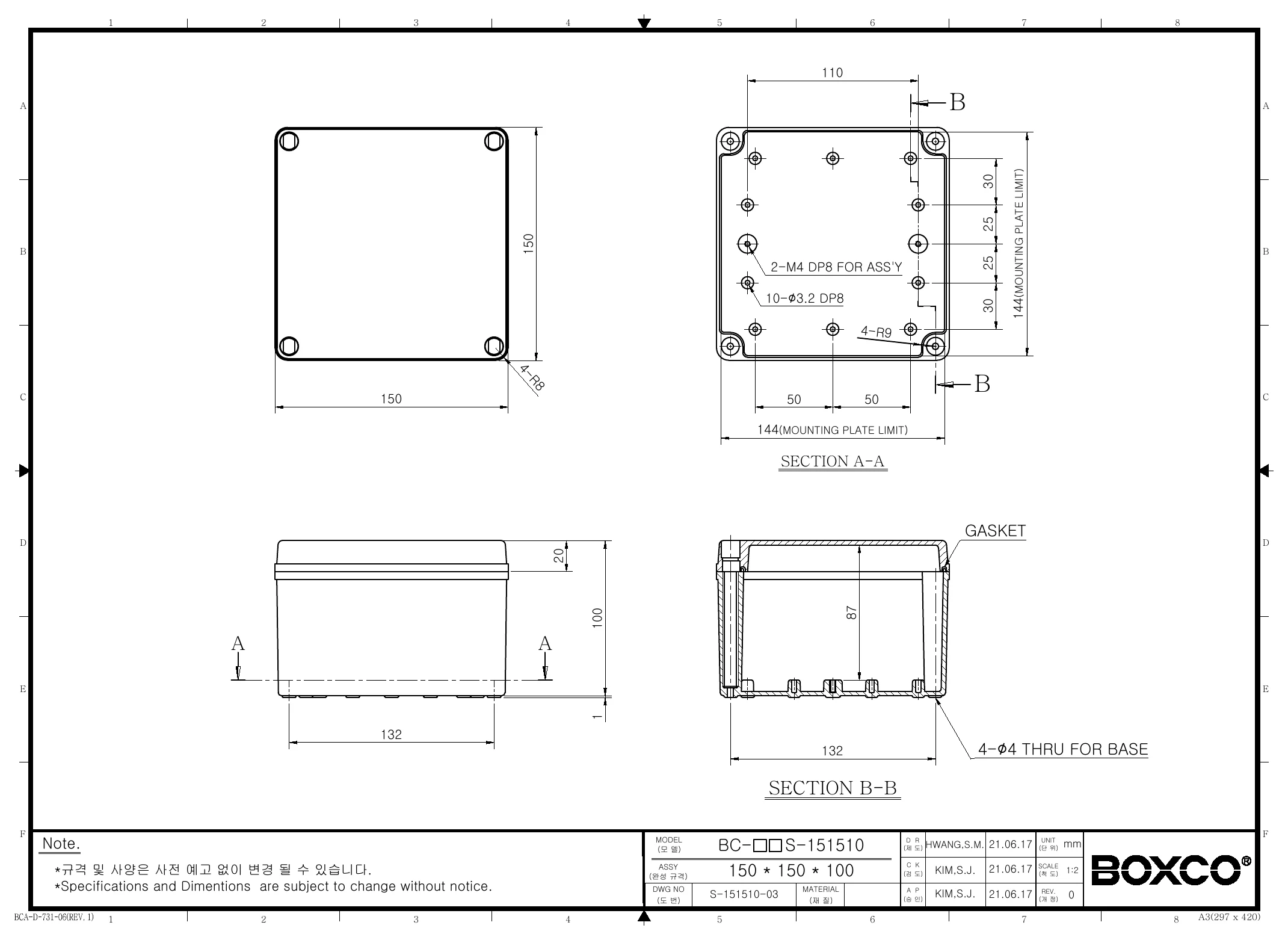

BC-CGS-151510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure designed for?

This model is a plastic enclosure for protecting equipment and components in industrial or commercial applications. Its IP67 protection, IK08 impact rating, and screw-type cover make it suitable for environments where dust, water ingress resistance, and enclosure durability matter.

What are the dimensions of this enclosure?

This Boxco S-Series enclosure measures 5.91 x 5.91 x 3.94 inches, which corresponds to 150 x 150 x 100 mm. That size provides a compact square format for equipment that needs protection inside a sealed housing.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports use in demanding environments where dust and water resistance are important.

What material is this enclosure made from?

This model is made from polycarbonate (PC). The description also notes high impact resistance and anti-static material properties to help protect sensitive electronic instruments from static electricity.

What do the IP67 and IK08 ratings mean for this enclosure?

IP67 indicates strong protection against dust ingress and resistance to temporary water exposure. IK08 indicates resistance to mechanical impact, which helps this enclosure perform in tougher working environments than a basic non-rated box.

What temperature range can this enclosure handle?

This model is specified for temperatures from -40 °C to 110 °C. That wide range makes it appropriate for applications exposed to both low and high operating temperatures within those limits.
