Boxco

Boxco S-Series 150x150x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-151510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-151510 is a 150×150×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-151510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×100 mm (5.91×5.91×3.94 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

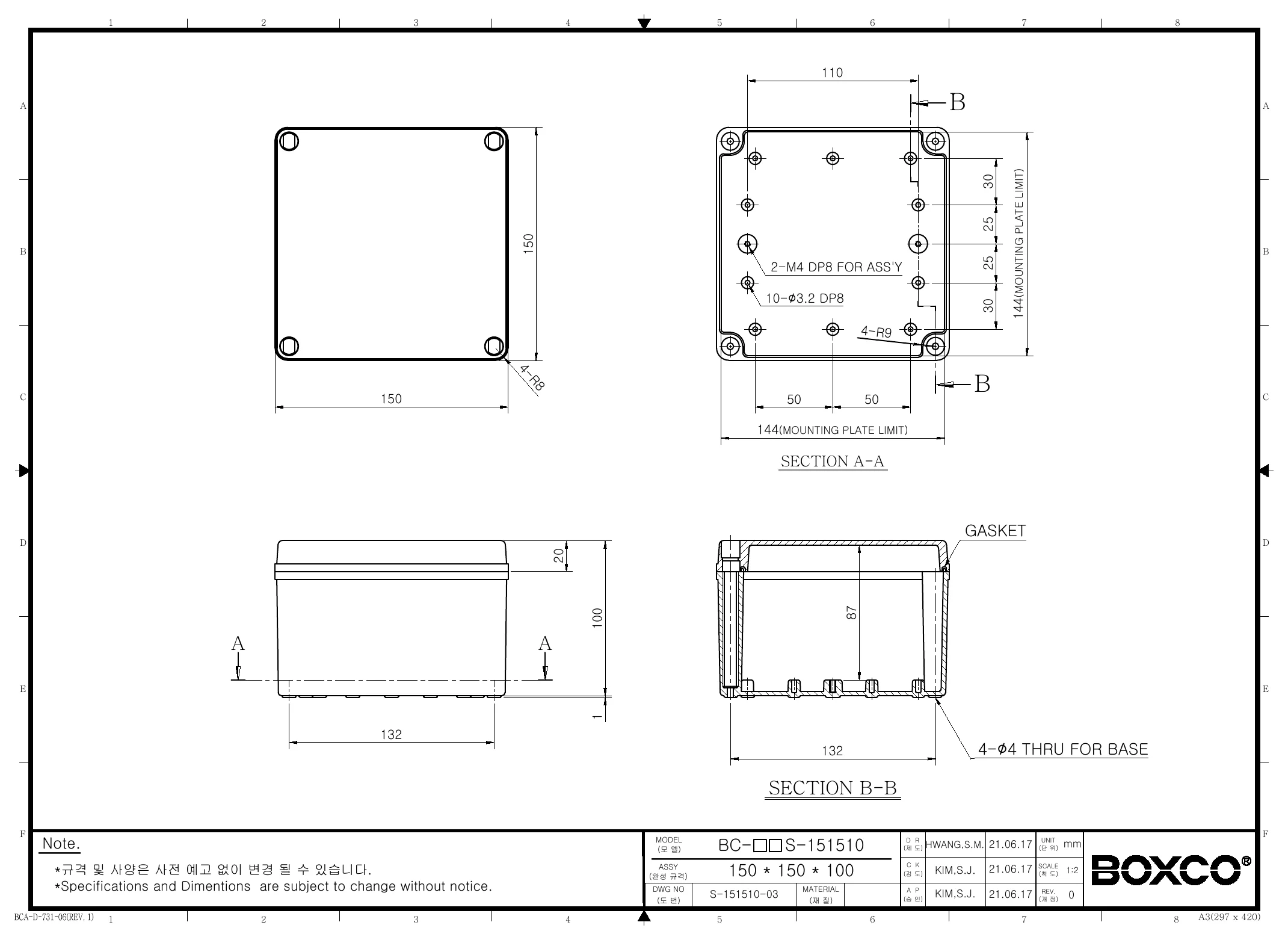

Technical drawings

BC-CTS-151510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CTS-151510 enclosure?

This model is a plastic screw-type enclosure with a transparent polycarbonate cover. Its outside dimensions are 5.91 x 5.91 x 3.94 inches (150 x 150 x 100 mm), and it is rated IP67 and IK08. The listed operating temperature range is -40°C to 110°C, and the product weight is 0.4600 kg.

Is the BC-CTS-151510 suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The product description also notes that only minor color changes are expected over long-term use. Its IP67 rating also supports use where strong protection from dust and water ingress is required.

What does the transparent cover offer compared with an opaque enclosure cover?

The transparent cover allows visual inspection of internal components without opening the enclosure. That can be useful when equipment status or indicators need to be checked while keeping the housing closed. This model specifically combines that visibility with a polycarbonate transparent cover and screw-type closure.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical or electronic equipment that needs a sealed, impact-resistant housing. The product description specifically mentions protecting sensitive electronic instruments from static electricity. Its size and environmental ratings make it a practical option for industrial, control, and general-purpose equipment housings.

How well does the BC-CTS-151510 resist dust, water, and impact?

This model carries an IP67 rating for dust-tight performance and protection against temporary water immersion under the standard definition of that rating. It also has an IK08 impact rating, indicating resistance to external mechanical impact. The product description further highlights a robot-injected gasket for strong waterproof and dust-proof performance.

Does this enclosure support internal mounting hardware or accessory plates?

Yes, the product description states that it includes internal mounting plate attachment points with brass-inserted injection molding. It also mentions pre-molded mounting screw nuts for securing DIN rail or other equipment inside the enclosure. These built-in features support more secure internal equipment mounting for this specific model.
