Boxco S-Series 150x150x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-151507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-151507 is a 150×150×75 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-151507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×75 mm (5.91×5.91×2.95 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

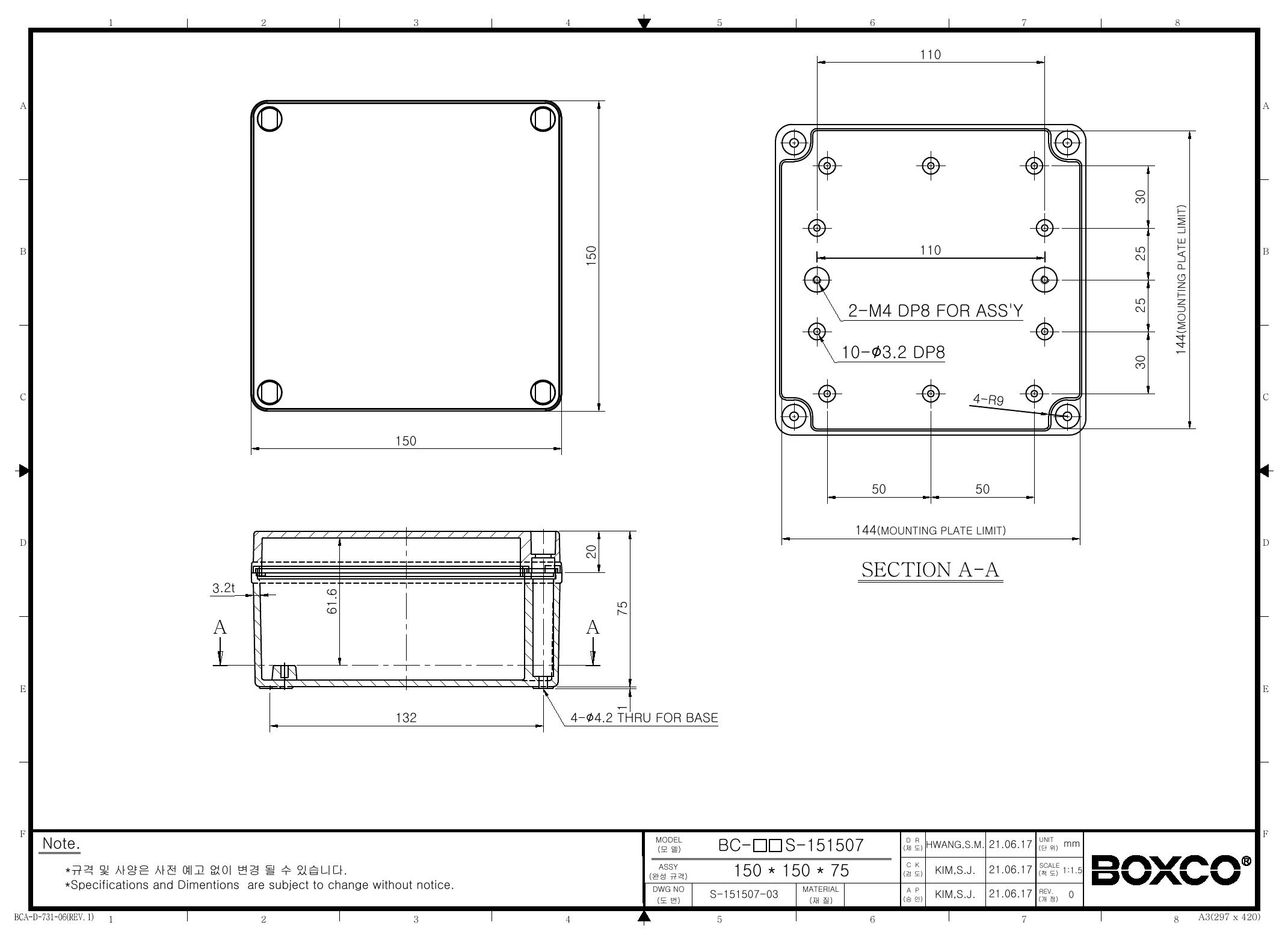

Technical drawings

BC-CTS-151507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-CTS-151507 enclosure?

This model measures 5.91 x 5.91 x 2.95 inches, or 150 x 150 x 75 mm. It is a plastic enclosure with a transparent polycarbonate cover, screw-type closure, IP67 ingress protection, and IK08 impact resistance. The listed operating temperature range is -40°C to 110°C, and the enclosure weight is 0.91 kg.

Is the BC-CTS-151507 suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce visible color change over long periods of exposure. Its IP67 rating also supports use in demanding environments where protection from dust and water ingress is important.

What kinds of applications is this enclosure best suited for?

This enclosure is intended for protecting electronic equipment in industrial and commercial applications where durability and environmental protection matter. The anti-static material makes it relevant for housing sensitive electronic instruments. Its mounting features also make it practical for control, monitoring, or protection assemblies that need secure internal component support.

Does this enclosure support internal mounting hardware or accessories?

Yes, the product description states that it includes internal mounting plate attachment points with brass inserted injection molding for handling heavier installed equipment. It also has pre-molded mounting screw nuts to help secure DIN rail or other internal equipment. These built-in features make it more adaptable than a plain empty box enclosure.

How does the transparent cover affect use compared with an opaque enclosure?

The transparent cover allows visibility into the enclosure without changing the listed enclosure size or protection ratings provided here. For buyers comparing options, that can be useful when visual access to indicators, displays, or labeled components is important. This model still uses a screw-type cover and maintains its stated IP67 and IK08 ratings.

How durable is the BC-CTS-151507 enclosure in demanding conditions?

This model is described as being made from high impact resistant material and carries an IK08 impact rating. The description also notes that the material helps resist breakage during hole and press processing. Combined with the CNC-injected gasket and IP67 rating, it is built for strong mechanical and environmental performance.
