Boxco

Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-152010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-152010 is a 150×200×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-152010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×100 mm (5.91×7.87×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

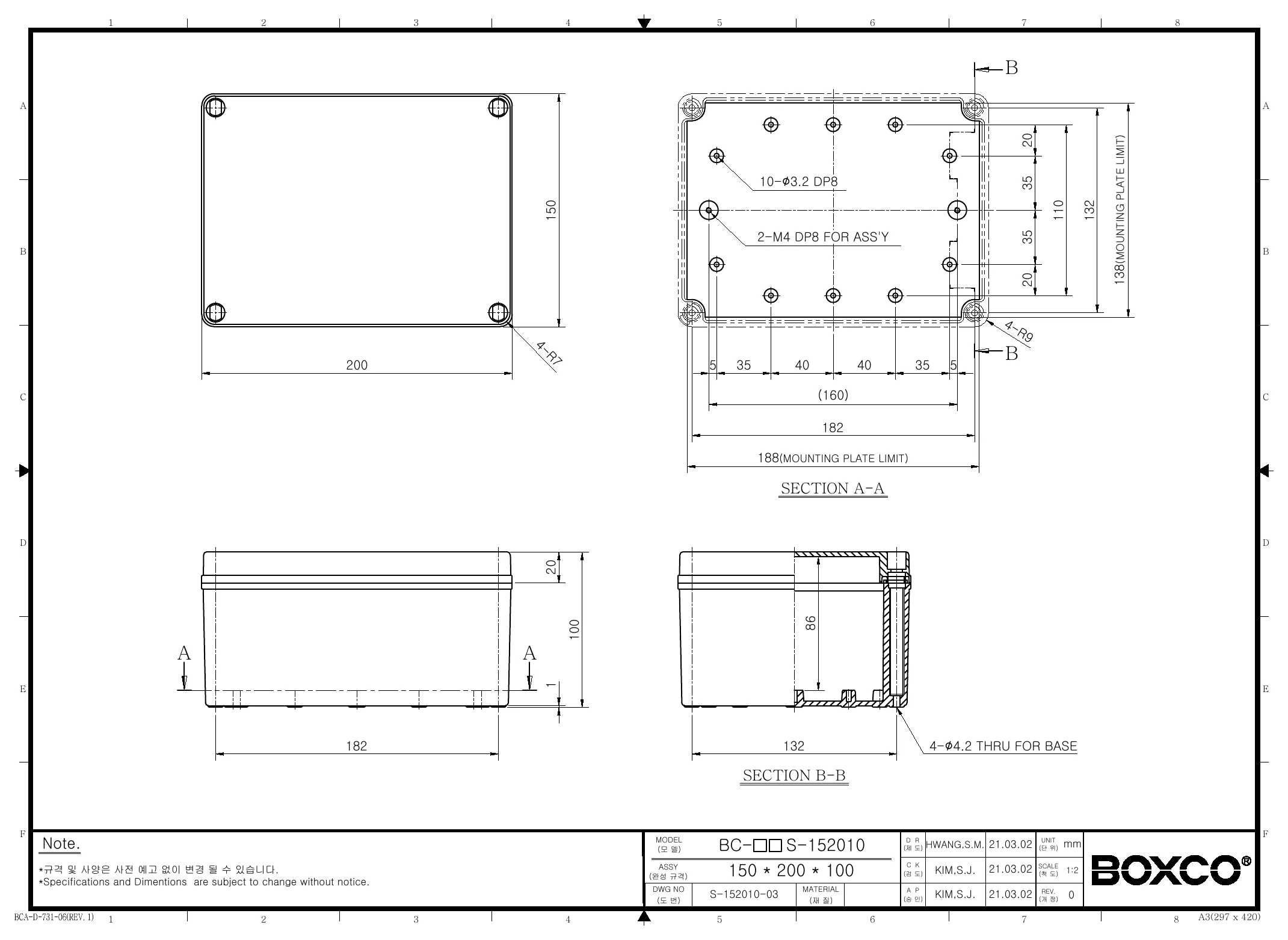

Technical drawings

BC-CTS-152010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-CTS-152010 enclosure?

This model measures 5.91 x 7.87 x 3.94 inches, which corresponds to 150 x 200 x 100 mm. That size makes it suitable for protecting larger internal components while still using a compact wall- or equipment-mountable enclosure format.

Is this enclosure suitable for outdoor or washdown environments?

Yes. The BC-CTS-152010 is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. The product description also notes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over time.

What cover and material configuration does this model use?

This enclosure uses a polycarbonate (PC) body with a transparent cover and a screw-type closure. That combination is useful when you want impact-resistant plastic construction and the ability to visually inspect enclosed components without opening the box.

How durable is the BC-CTS-152010 against impact and demanding industrial use?

This model carries an IK08 impact rating, indicating resistance to mechanical impact in industrial and commercial settings. The description also highlights high impact resistant material and molded attachment points designed to support heavier internal equipment.

What temperature range can this plastic enclosure handle?

The BC-CTS-152010 is specified for use from -40 °C to 110 °C. That wide operating range makes it a practical choice for equipment exposed to cold outdoor conditions or elevated internal temperatures.

What kinds of applications is this enclosure commonly used for?

This model is well suited for protecting sensitive electronic instruments and other industrial components that need dust, water, and impact protection. Its anti-static material, transparent cover, and internal mounting features make it a strong fit for control, monitoring, and equipment protection applications.
