Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 150x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-152013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-152013 is a 150×200×130 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-152013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×130 mm (5.91×7.87×5.12 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

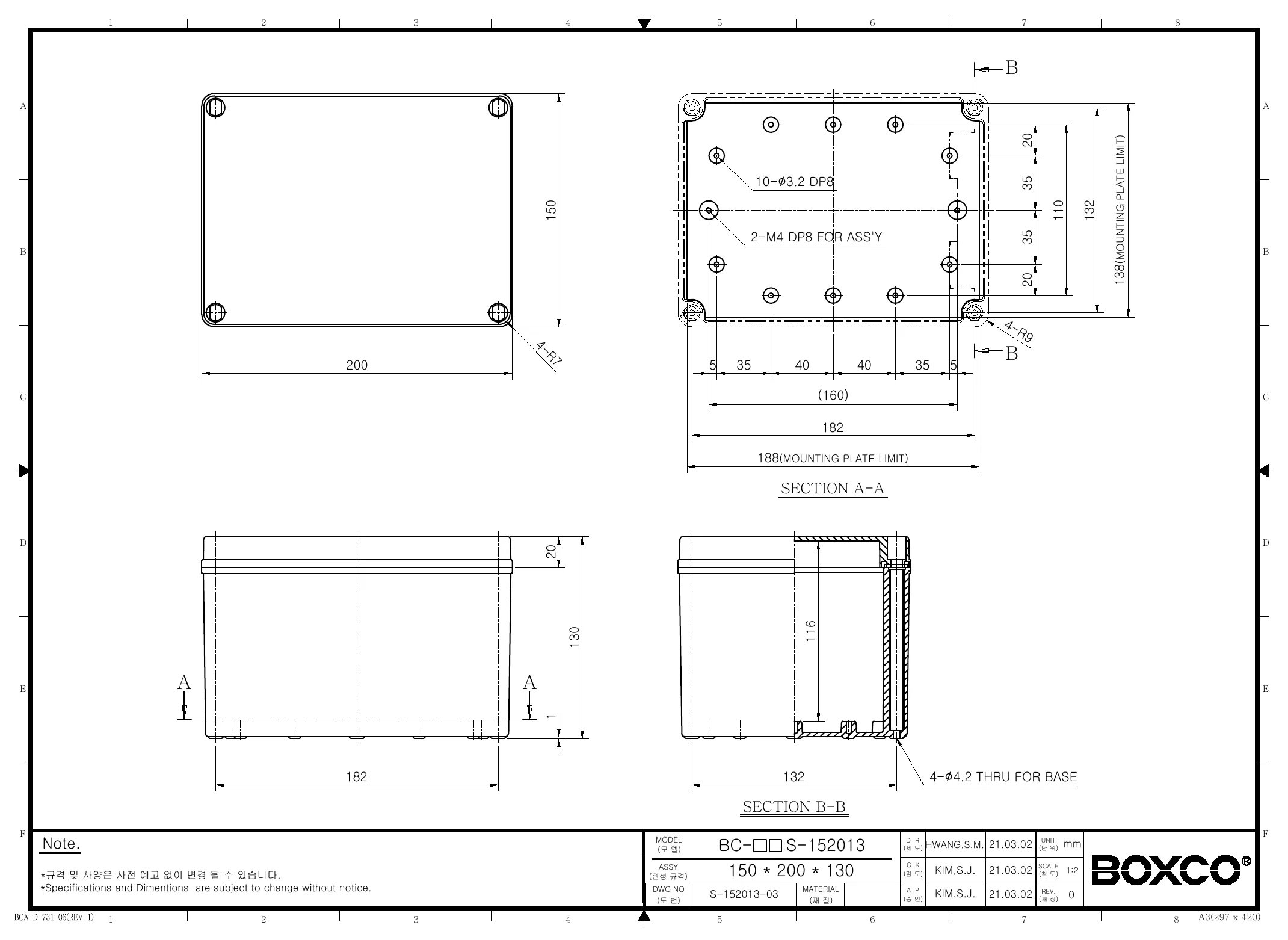

BC-AGS-152013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-AGS-152013 enclosure suited for?

This enclosure is designed for protecting electronic components and control hardware in industrial and commercial environments. Its ABS construction, impact resistance, and sealed design make it a practical choice for indoor use and for outdoor use where protection from dust, water ingress, and UV exposure matters.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

What level of environmental and impact protection does this model provide?

This model is rated IP67 and IK08. That means it is built for strong dust and water resistance and also offers solid impact protection for applications where the enclosure may be exposed to physical contact or rougher service conditions.

What are the size and material details for BC-AGS-152013?

The enclosure measures 5.91 x 7.87 x 5.12 inches, which is 150 x 200 x 130 mm. It is made from ABS and comes with a grey cover in a screw-type enclosure design.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. This makes it suitable for a wide range of industrial and outdoor conditions where both low and elevated temperatures may be a factor.

Does this enclosure support mounting internal components?

Yes. The description highlights internal mounting plate attachment points with brass inserted injection molding, as well as pre-molded mounting screw nuts for securing accessories such as DIN rail or other equipment. These features make the enclosure better suited for organized internal component mounting than a plain empty box.

How does this model differ from a basic plastic enclosure box?

This model adds several features beyond a generic plastic box, including IP67 sealing, IK08 impact protection, UV stabilization for outdoor use, anti-static material, and reinforced mounting points. It is intended for more demanding professional applications where durability and enclosure performance are important selection factors.
