Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 150x200x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-152013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-152013 is a 150×200×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-152013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×130 mm (5.91×7.87×5.12 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

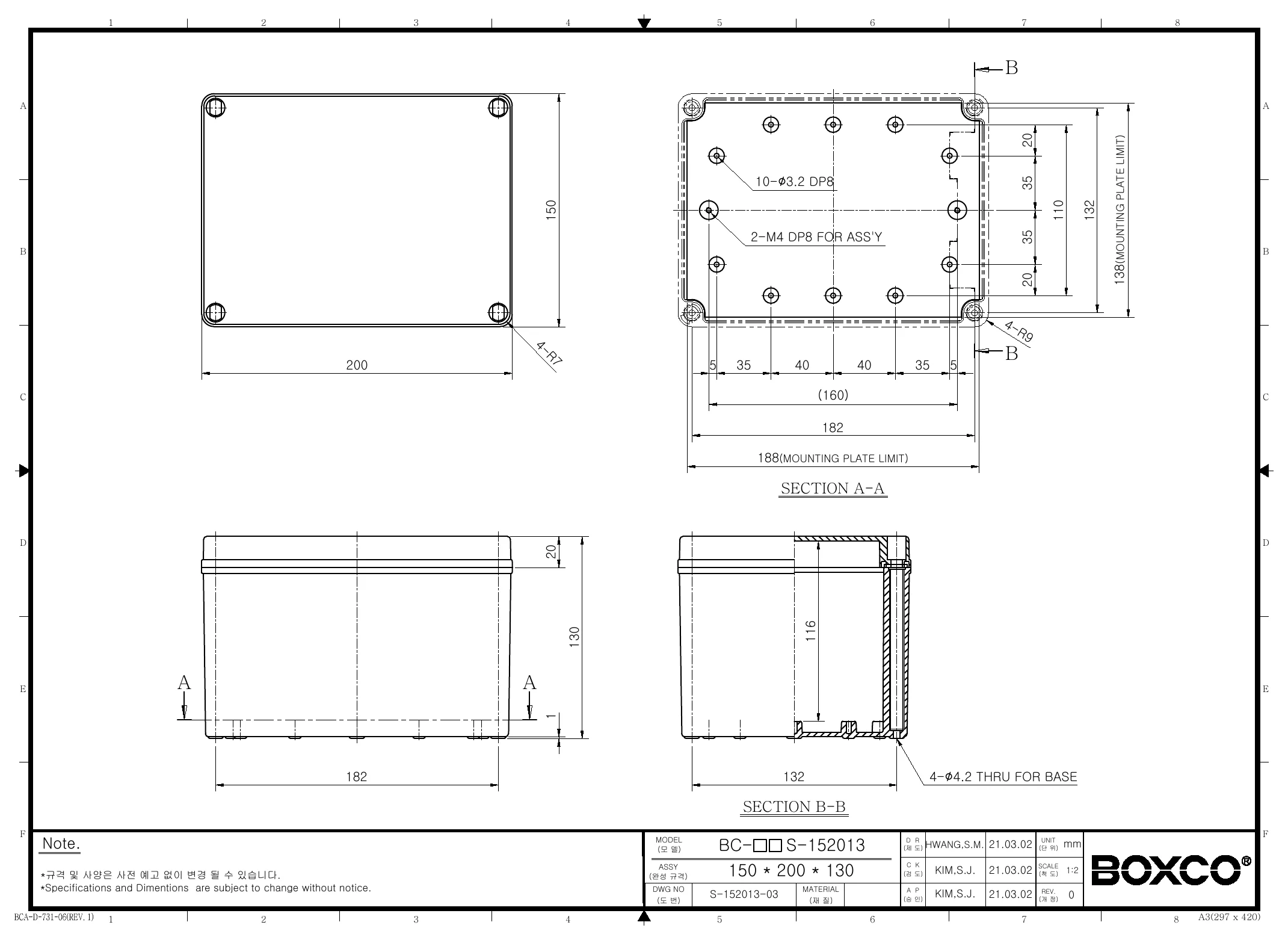

Technical drawings

BC-CGS-152013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this enclosure suitable for?

This Boxco S-Series enclosure is suited for protecting electronic components and control hardware in industrial and commercial environments where dust, moisture, and physical impact are concerns. Its anti-static PC construction and internal mounting features make it a practical choice for housing sensitive equipment in indoor or outdoor use cases.

Is this enclosure appropriate for outdoor environments?

Yes, this model is designed for outdoor use. The enclosure includes an ultraviolet stabilizer to help reduce color change over time, and its IP67 rating indicates strong protection against dust and water ingress when properly closed.

What are the key specifications of this enclosure?

This model measures 5.91 x 7.87 x 5.12 inches (150 x 200 x 130 mm) and weighs 0.6200 kg. It is made from polycarbonate (PC), uses a grey screw-type cover, carries IP67 and IK08 ratings, and is rated for temperatures from -40 C to 110 C.

How does the screw-type cover benefit this enclosure?

The screw-type cover is designed for a secure closure and consistent sealing performance. Boxco also notes that the cover bolt attachment points are formed during injection molding to maximize thread strength and durability for repeated access.

Can this enclosure support internal mounting hardware or heavier components?

Yes, this enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. Those features help support mounting plates, DIN rail-related hardware, and other internal components more securely than a plain box without molded attachment provisions.

How does this enclosure help protect sensitive electronics?

This model uses anti-static material to help protect sensitive electronic instruments from static electricity. The polycarbonate body is also described as high impact resistant, which helps reduce the risk of damage from external impact and during enclosure machining processes.
