Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 150x200x160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-152016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-152016 is a 150×200×160 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-152016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×160 mm (5.91×7.87×6.30 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

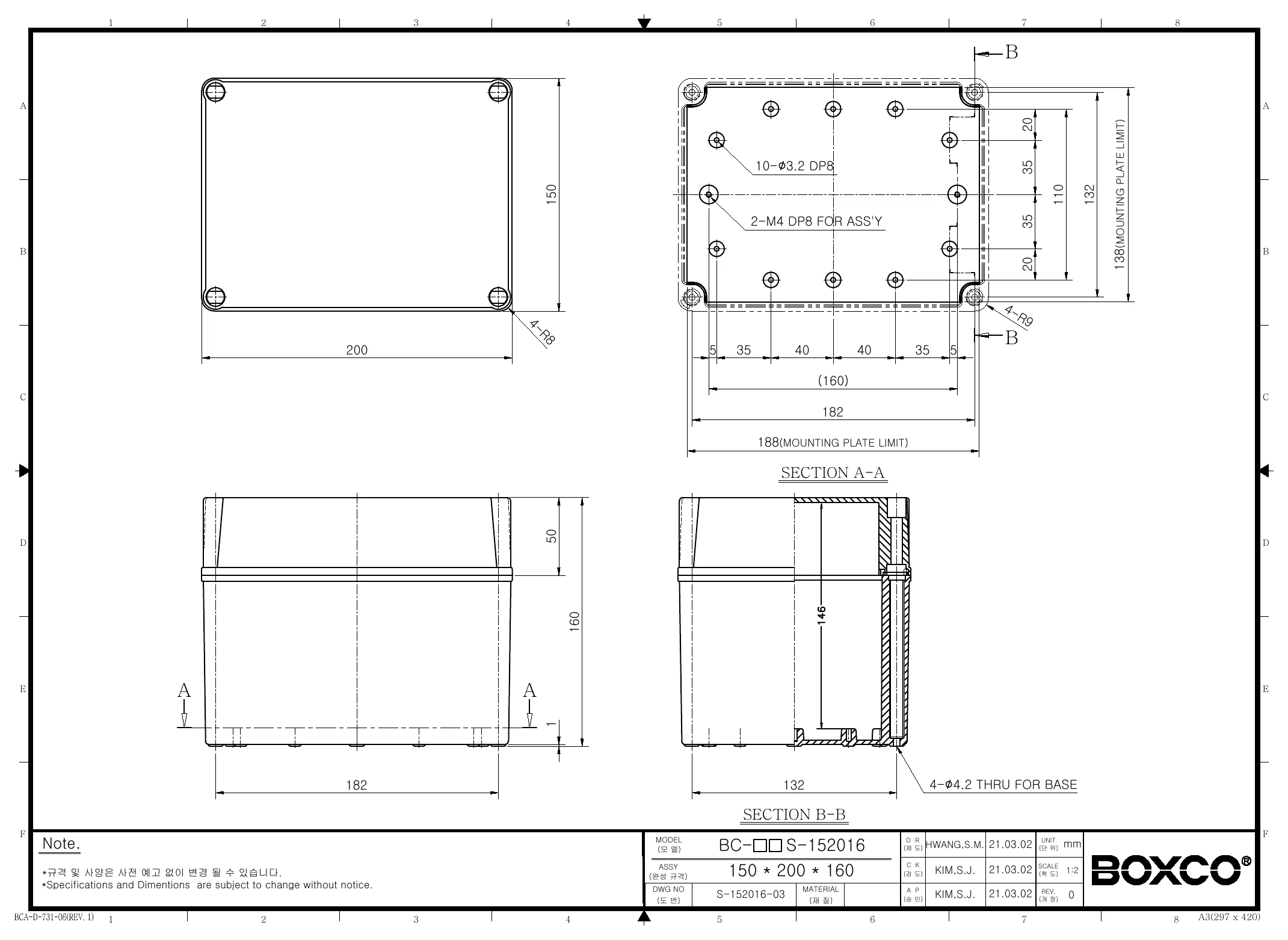

Technical drawings

BC-ATS-152016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure used for?

This model is a plastic enclosure designed to protect electrical or electronic components in industrial and commercial applications. Its screw-type transparent cover and internal space make it suitable for projects that need enclosed protection while still allowing visual inspection of the contents.

What are the dimensions of the BC-ATS-152016 enclosure?

The enclosure measures 5.91 x 7.87 x 6.3 inches, which corresponds to 150 x 200 x 160 mm. These dimensions make it a mid-sized option for applications that need more internal room than compact junction-style boxes.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this model is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection. The product description also notes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

What materials are used in this enclosure?

This enclosure is made from ABS plastic and includes a transparent cover. The description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity.

How durable is this Boxco enclosure against impact?

This model carries an IK08 impact rating, indicating resistance to mechanical impact in industrial settings. The description also highlights high impact resistant construction intended to reduce breakage during processing and use.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. That range supports use in both cold and warm environments where the enclosure must maintain protective performance.

What mounting and equipment support features does this model include?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing heavier installed equipment. It also has pre-molded mounting screw nuts that can be used to fix DIN rail or other internal hardware.
