Boxco S-Series 150x200x160mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-152016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-152016 is a 150×200×160 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-152016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×160 mm (5.91×7.87×6.30 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

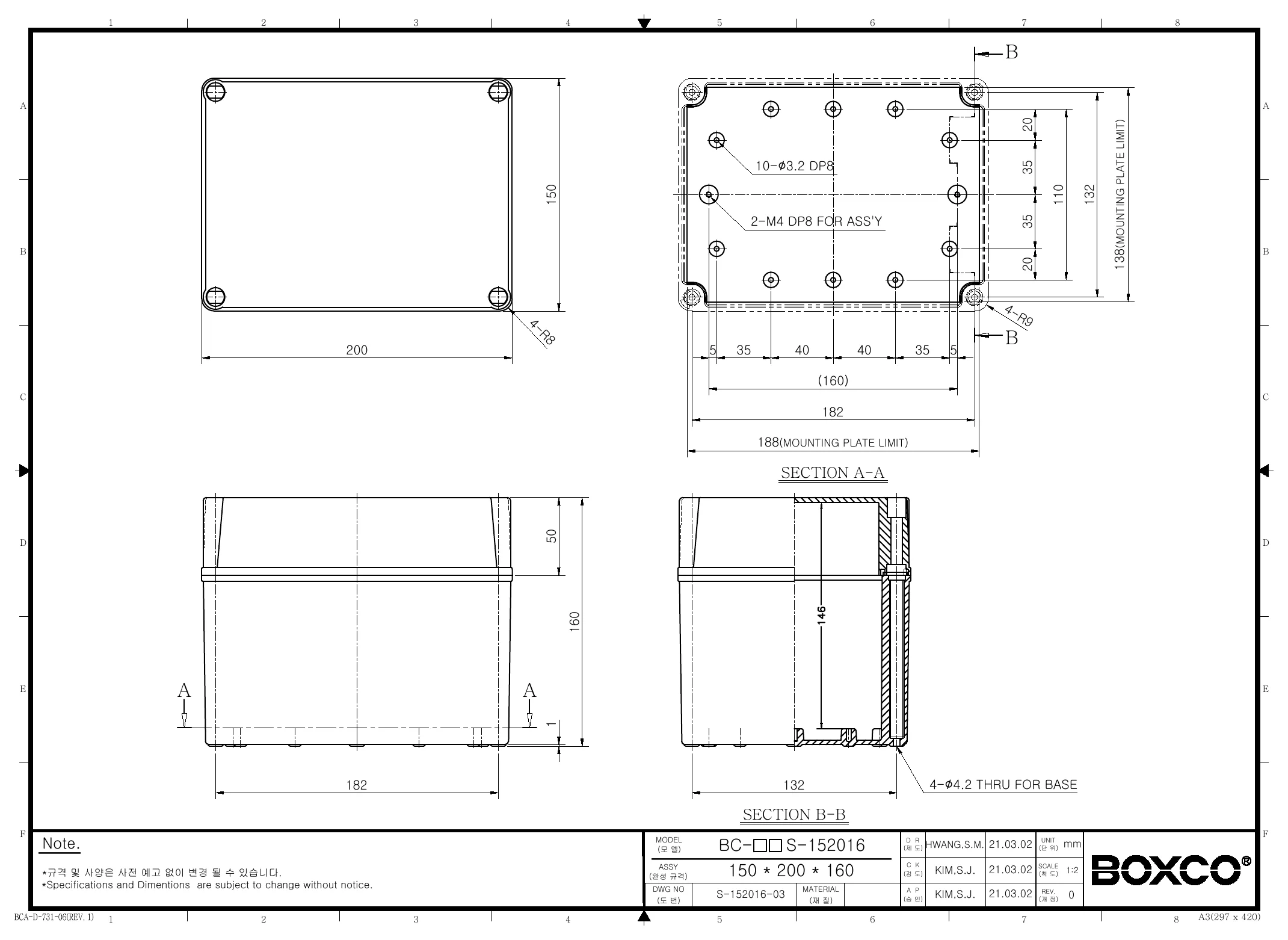

Technical drawings

BC-CTS-152016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure used for?

This model is designed to protect electrical or electronic components in industrial and commercial environments where a durable non-metallic enclosure is needed. Its transparent cover makes it useful when equipment inside needs to remain visible without opening the box.

What are the dimensions of the BC-CTS-152016 enclosure?

The enclosure measures 5.91 x 7.87 x 6.3 inches, which corresponds to 150 x 200 x 160 mm. This size provides a compact but usable interior for components that need protection inside a sealed housing.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. The product description also states that an ultraviolet stabilizer is added for outdoor use, helping reduce visible color change over time.

How durable is the housing against impact?

This enclosure has an IK08 impact rating and is described as being made from high impact resistant material. That makes it a good choice for applications where the enclosure may be exposed to mechanical contact or demanding industrial surroundings.

What material is this Boxco enclosure made from?

This model is made from PC, or polycarbonate, and includes a transparent cover. The description also notes anti-static material use and high impact resistance, which supports protection for sensitive internal equipment.

What temperature range can this enclosure handle?

The stated operating temperature range is -40 degrees C to 110 degrees C. That range makes it suitable for use in both cold and high-heat environments where standard enclosures may be less appropriate.

Does this enclosure support internal mounting hardware or accessory installation?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure internal equipment and support additional mounting components inside the enclosure.
