Boxco

Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-152007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-152007 is a 150×200×75 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-152007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×75 mm (5.91×7.87×2.95 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

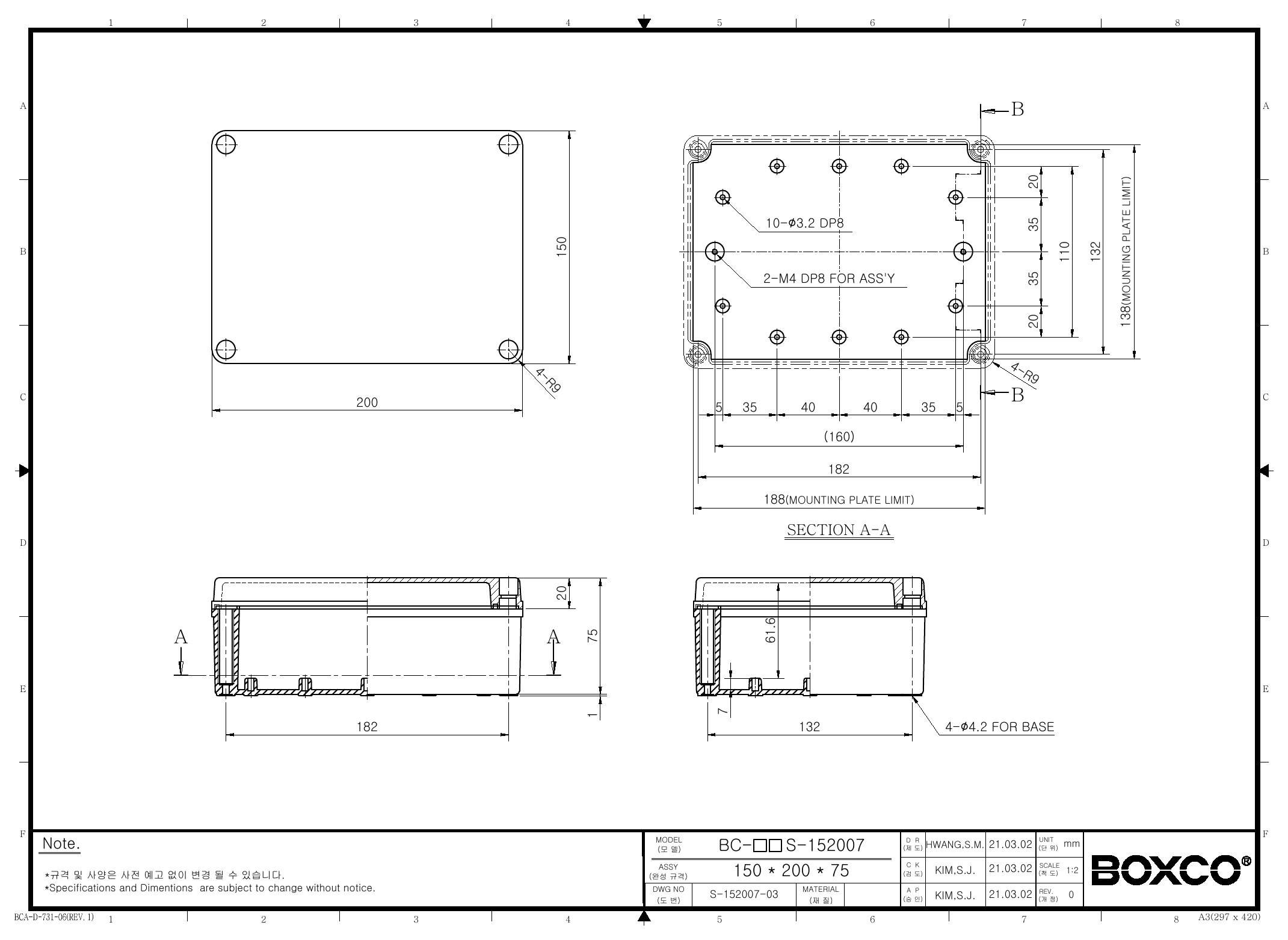

Technical drawings

BC-CGS-152007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is used to protect electrical or electronic components in industrial and commercial equipment housings. Its PC construction, impact resistance, and sealed design make it a practical choice for control, monitoring, or instrumentation applications where components need physical and environmental protection.

What are the dimensions of the BC-CGS-152007 enclosure?

This model measures 5.91 x 7.87 x 2.95 inches, which corresponds to 150 x 200 x 75 mm. That size gives buyers a mid-size enclosure option for components that need more internal room than compact boxes while staying relatively low profile.

Is this enclosure suitable for outdoor or harsh environments?

Yes. This model is rated IP67 for protection against dust and water ingress, and the S-Series description states that an ultraviolet stabilizer is added for outdoor use. It also has an IK08 impact rating and a gasket designed for strong waterproof and dust-proof performance.

What material is this enclosure made from, and why does that matter?

This model is made from PC and has a grey cover. The product description also notes anti-static material use for protecting sensitive electronic instruments and high impact resistance to help reduce breakage during processing.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That wide range makes it suitable for applications exposed to both low and high temperature conditions, provided the rest of the assembled system is rated appropriately.

Does this enclosure support mounting internal components?

Yes. The description states that it includes mounting plate attachment points with brass inserted injection molding and pre-molded mounting screw nuts. These features are intended to support secure mounting of internal hardware such as plates, DIN rail-related equipment, or other enclosed devices.
