Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-152510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-152510 is a 150×250×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-152510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×250×100 mm (5.91×9.84×3.94 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

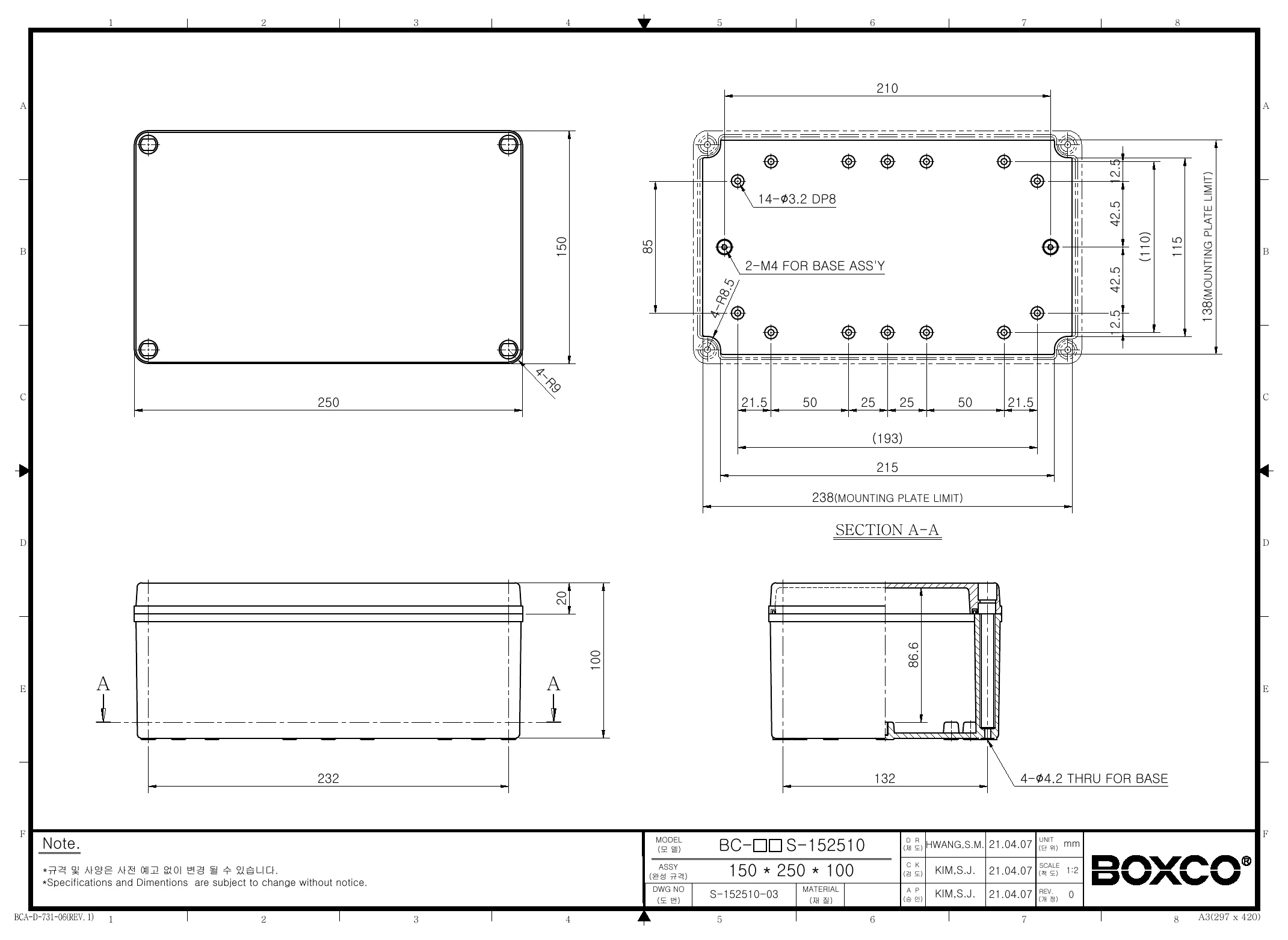

Technical drawings

BC-CGS-152510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 150x250x100mm enclosure suited for?

This enclosure is intended for protecting electronic equipment in industrial and commercial environments where a durable non-metallic housing is needed. Its internal mounting plate attachment points and pre-molded mounting screw nuts make it suitable for housing control, monitoring, or protection components inside a sealed enclosure.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series model includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over time. The enclosure also includes a gasket designed for strong waterproof and dust-proof performance.

What protection ratings does this model have?

This enclosure is rated IP67 and IK08. That means it is designed for strong dust and water ingress protection and for resistance to external impact for demanding environments.

What material is this enclosure made from, and why does that matter?

This model is made from PC and uses anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also describes the housing as high impact resistant, which helps it stand up to external impact and reduce breakage during processing.

What are the dimensions and weight of this enclosure?

The enclosure measures 5.91 x 9.84 x 3.94 inches, which corresponds to 150 x 250 x 100 mm. Its listed weight is 0.6700 kg, making it a mid-size plastic enclosure for equipment that needs more internal space than compact junction-style boxes.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 110 °C. This makes it appropriate for environments with very low or elevated temperatures, provided the installed equipment is also rated for those same conditions.

Does this model support internal equipment mounting?

Yes. Boxco specifies internal mounting plate attachment points with brass inserted injection molding to secure heavier equipment inside the enclosure. It also includes pre-molded mounting screw nuts that can be used for DIN rail or other internal hardware.
