Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-152510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-152510 is a 150×250×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-152510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×250×100 mm (5.91×9.84×3.94 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

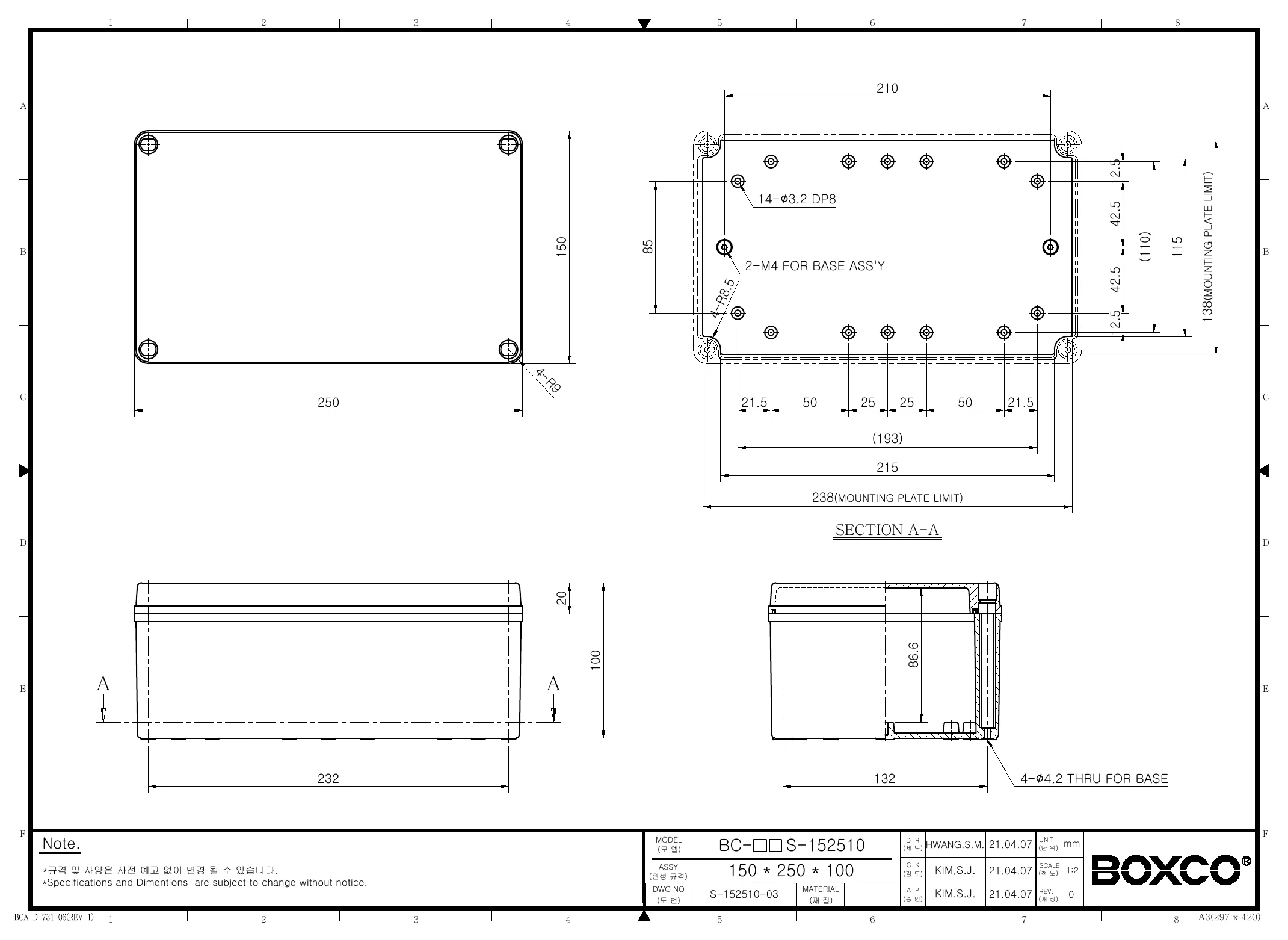

BC-CTS-152510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This model is suited to protecting electronic components and control assemblies that need a sealed plastic housing. Its transparent cover makes it useful when you need to inspect indicators or internal components without opening the enclosure.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that UV stabilizer is added for outdoor usage, helping limit visible color change over time.

What are the key size and material specs for this model?

This Boxco S-Series enclosure measures 5.91 x 9.84 x 3.94 inches, which corresponds to 150 x 250 x 100 mm. It is made from polycarbonate and includes a transparent screw-type cover, with a listed weight of 0.91 kg.

How durable is this enclosure for industrial use?

This model carries an IK08 impact rating, and the description highlights high-impact-resistant material for protection against external impact. Boxco also notes that the enclosure is designed to resist breakage during hole and press processing.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 degrees C to 110 degrees C. That makes it a practical option for both cold and high-heat environments where standard plastic housings may be too limited.

What built-in features make this enclosure easier to use with internal components?

This model includes mounting plate attachment points, pre-molded mounting screw nuts, and cover bolt attachment points formed during injection molding for added strength. It also uses a precision-injected gasket to support waterproof and dust-proof performance.
