Boxco

Boxco S-Series 150x250x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-152513
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-152513 is a 150×250×130 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-152513Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×250×130 mm (5.91×9.84×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

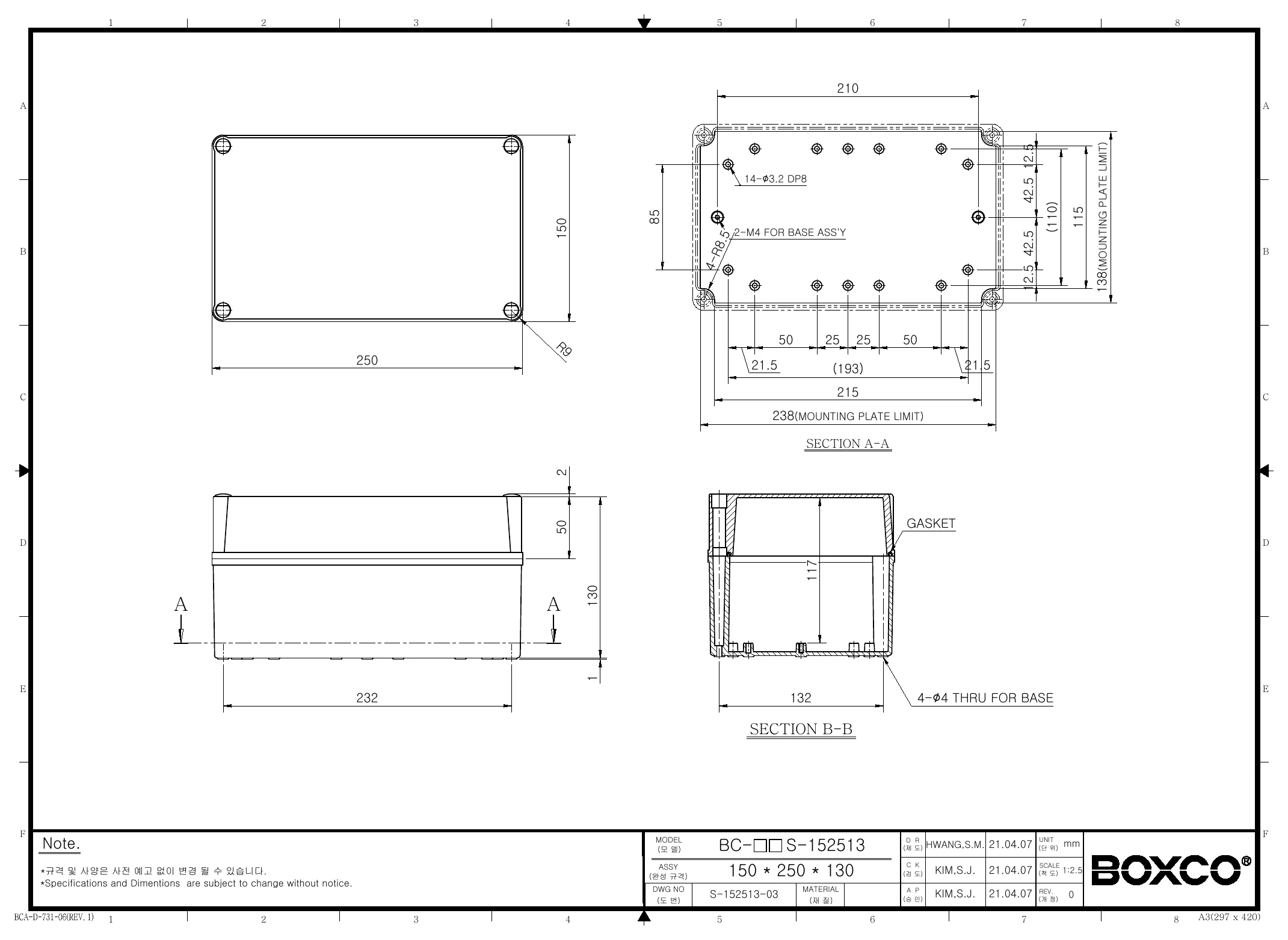

Technical drawings

BC-ATS-152513 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-152513 enclosure suited for?

This enclosure is suited for protecting electronic and control components in industrial, commercial, and outdoor equipment housings. Its anti-static ABS construction and high impact resistance make it a practical choice for sensitive instruments that need durable environmental protection.

Is this enclosure appropriate for outdoor environments?

Yes, this model is designed for outdoor use. The S-Series material includes an ultraviolet stabilizer to reduce color change over time, and the IP67 rating helps protect against dust and water ingress in exposed environments.

How durable is the BC-ATS-152513 against impact and harsh conditions?

This model is rated IK08 for impact resistance and is made from high impact resistant ABS. It is also specified for use from -40°C to 70°C, which supports use in demanding indoor and outdoor conditions.

Does this enclosure support internal component mounting?

Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of internal hardware such as mounting plates or DIN rail-based equipment.

What are the main size and material specifications of this enclosure?

The BC-ATS-152513 measures 5.91 x 9.84 x 5.12 inches (150 x 250 x 130 mm). It is made from ABS and includes a transparent screw-type cover, with a listed weight of 0.738 kg.

How does this screw-cover enclosure compare to a general-purpose plastic box?

This model is differentiated by its IP67 and IK08 ratings, anti-static ABS material, transparent cover, and outdoor-oriented UV-stabilized construction. It is built for more demanding protective applications than a basic non-rated plastic enclosure.
