Boxco

Boxco S-Series 150x250x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-152513
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-152513 is a 150×250×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-152513Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×250×130 mm (5.91×9.84×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

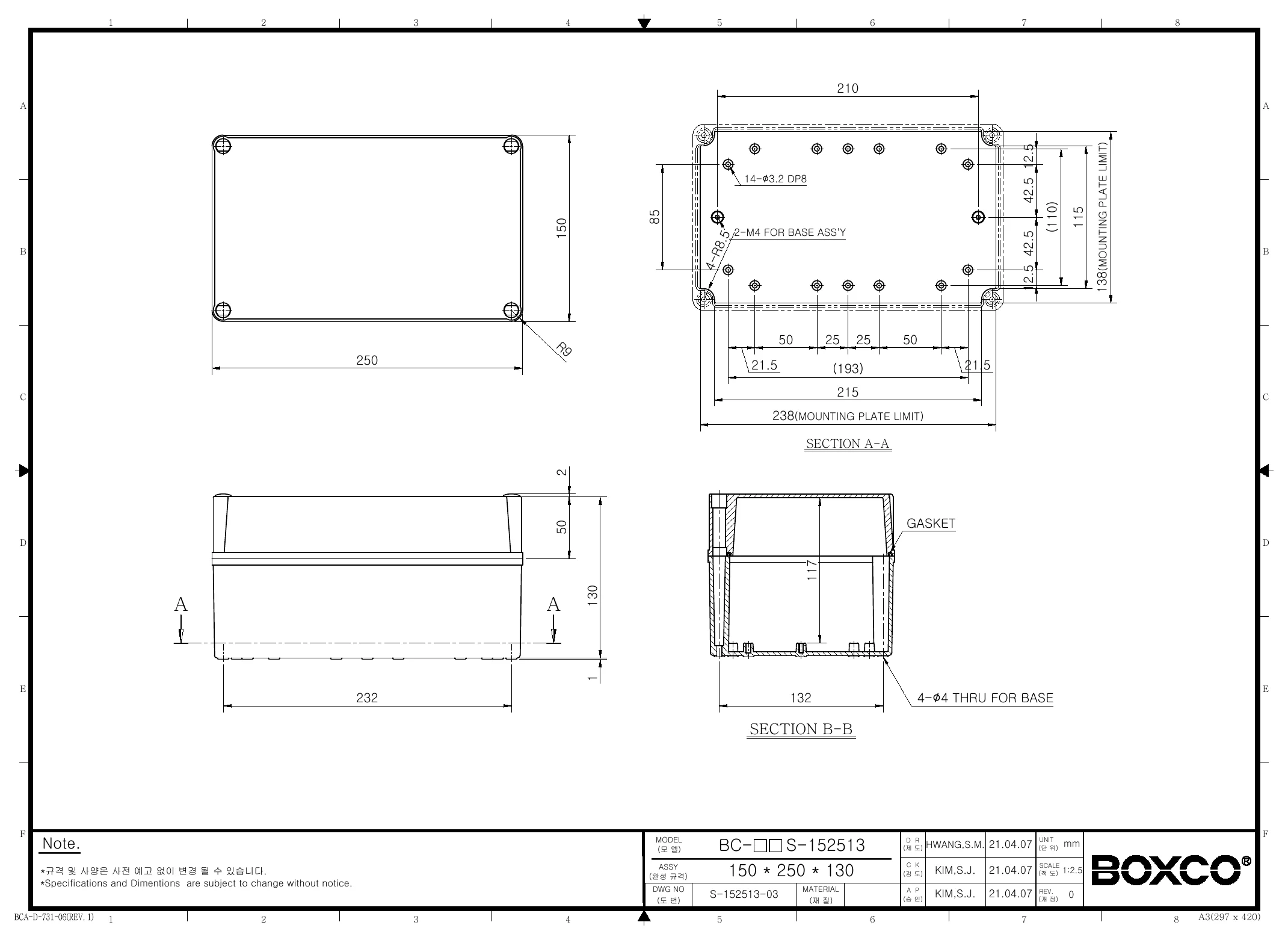

BC-CTS-152513 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 150x250x130mm plastic enclosure suited for?

This enclosure is suited for protecting electronic and control components in industrial, commercial, and outdoor environments where dust and water resistance matter. Its transparent cover makes it useful when visual inspection is needed without opening the box. The internal mounting plate attachment points and pre-molded screw nuts also support builds that need securely mounted internal hardware.

Is this enclosure appropriate for outdoor use?

Yes. This model is described as having an ultraviolet stabilizer added for outdoor usage, helping reduce visible color change over time. Its IP67 rating and gasket design also support strong protection against water and dust in exposed environments.

What are the key protection and durability features of this enclosure?

This model combines an IP67 ingress protection rating with an IK08 impact rating for protection against dust, water, and external impact. The enclosure is made from high impact resistant polycarbonate and uses a precision-injected gasket for waterproof and dust-proof performance. The cover bolt attachment points are also molded for added strength.

What are the dimensions and operating temperature range for this model?

This Boxco S-Series enclosure measures 5.91 x 9.84 x 5.12 inches, which corresponds to 150 x 250 x 130 mm. Its stated operating temperature range is -40 °C to 110 °C. The listed product weight is 0.91 kg.

Does this enclosure support internal component mounting?

Yes. It includes internal mounting plate attachment points with brass inserted injection molding so the mounting plate can be fixed tightly for heavier equipment. It also has pre-molded mounting screw nuts that allow DIN rail or other internal equipment to be fastened inside the enclosure.

How does the transparent cover affect product selection compared with a standard opaque enclosure?

The transparent cover is useful when you need to visually check indicators, displays, or component status without opening the enclosure. That can help reduce unnecessary access while keeping the enclosure closed. Buyers who do not need internal visibility may compare this style against opaque-cover versions based on inspection needs.
