Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 160x160x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-161607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-161607 is a 160×160×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-161607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×160×70 mm (6.30×6.30×2.76 in)
Mounting plate dimension M1 × M2
144 × 144 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1616 P (Plastic, P type), 1616 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

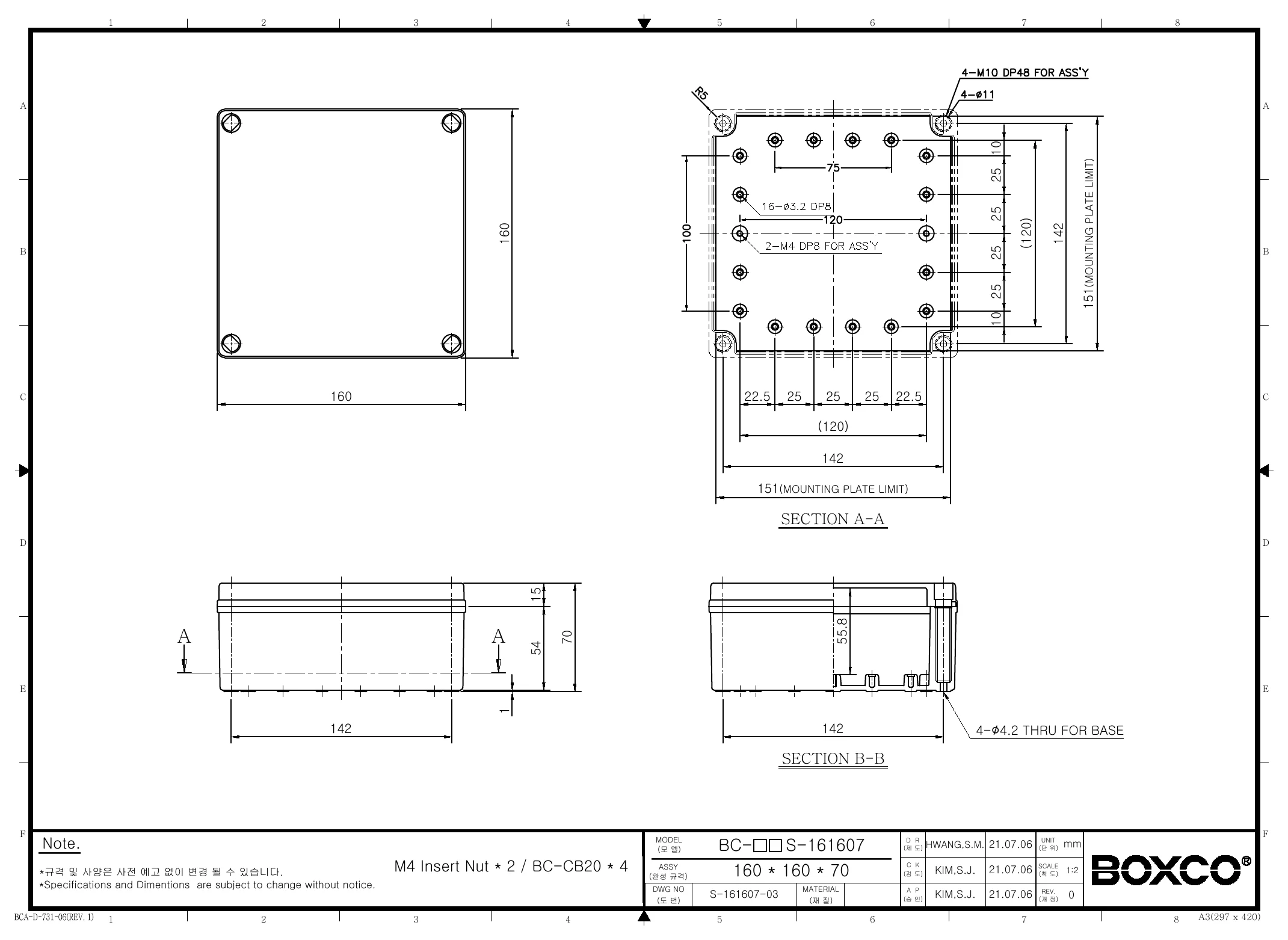

Technical drawings

BC-CGS-161607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 160x160x70mm enclosure best suited for?

This enclosure is suited for protecting electronic components in industrial and commercial environments where dust, water, and impact resistance matter. Its internal mounting features and durable polycarbonate construction make it a practical choice for control, monitoring, and instrumentation housings.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also supports use in environments where protection from dust and water ingress is important.

What do the IP67 and IK08 ratings mean for this enclosure?

IP67 indicates strong protection against dust ingress and temporary water exposure, which is important for demanding indoor or outdoor conditions. IK08 indicates a solid level of impact resistance, helping the enclosure withstand external mechanical contact better than basic non-rated housings.

What are the dimensions and weight of this model?

This model measures 6.3 x 6.3 x 2.76 inches, which is 160 x 160 x 70 mm. Its listed weight is 0.408 kg, making it compact enough for many equipment protection applications while still offering a robust enclosure body.

What temperature range can this enclosure handle?

The specified operating temperature range is -40°C to 110°C. That range supports use in both low-temperature and high-temperature environments where a standard-purpose plastic enclosure may not be sufficient.

What internal equipment support features does this enclosure include?

This model includes mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that can be used to fasten compatible internal hardware such as DIN rail-related components.

How does this screw-type enclosure differ from a more basic plastic box?

This model combines a screw-type cover design with IP67 and IK08 ratings, UV stabilization, anti-static material, and reinforced internal mounting features. Compared with a basic plastic box, it is better suited for applications that need stronger environmental protection and more durable internal equipment support.
