Boxco

Boxco S-Series 160x160x70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-161607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-161607 is a 160×160×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-161607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×160×70 mm (6.30×6.30×2.76 in)
Mounting plate dimension M1 × M2
144 × 144 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1616 P (Plastic, P type), 1616 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

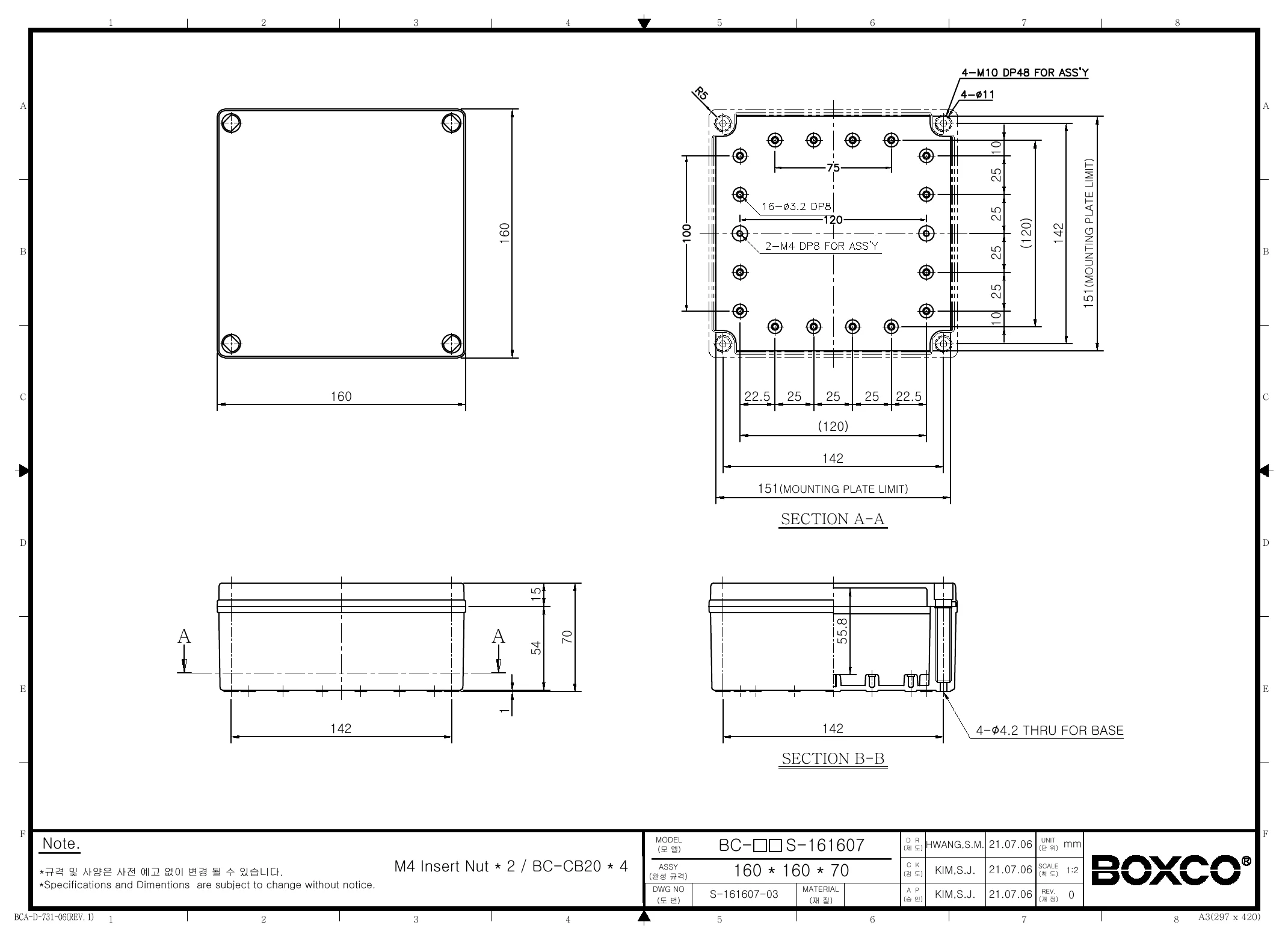

Technical drawings

BC-CTS-161607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This model is suited for protecting electronic components in indoor or outdoor industrial and commercial applications where a sealed plastic enclosure is needed. Its IP67 rating, IK08 impact rating, UV-stabilized construction, and anti-static material make it a practical choice for housing sensitive instruments in demanding environments.

What are the key specifications of this enclosure?

This enclosure measures 6.3 x 6.3 x 2.76 inches (160 x 160 x 70 mm) and weighs 0.428 kg. It is made from polycarbonate (PC), uses a transparent screw-type cover, carries IP67 and IK08 ratings, and has an operating temperature range of -40°C to 110°C.

Is this enclosure suitable for outdoor use?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The product description states that only limited color change is expected even after long-term use outdoors.

How does the transparent cover help compared with a solid cover enclosure?

The transparent cover allows internal components to be visually checked without opening the enclosure. For buyers comparing cover styles, that can be useful when status visibility matters while still keeping the screw-type sealed design of this model.

What environmental protection does this model provide?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. The product description also notes a precision-injected gasket designed to support strong waterproof and dust-proof performance.

What internal mounting features are included?

According to the product description, the enclosure includes internal mounting plate attachment points with brass inserted injection molding for securely fixing a mounting plate. It also has pre-molded mounting screw nuts intended to support DIN rail or other internal equipment mounting.
