Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 190x190x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-191913
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-191913 is a 190×190×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-191913Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×190×130 mm (7.48×7.48×5.12 in)
Mounting plate dimension M1 × M2
159 × 159 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1919 P (Plastic, P type), 1919 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

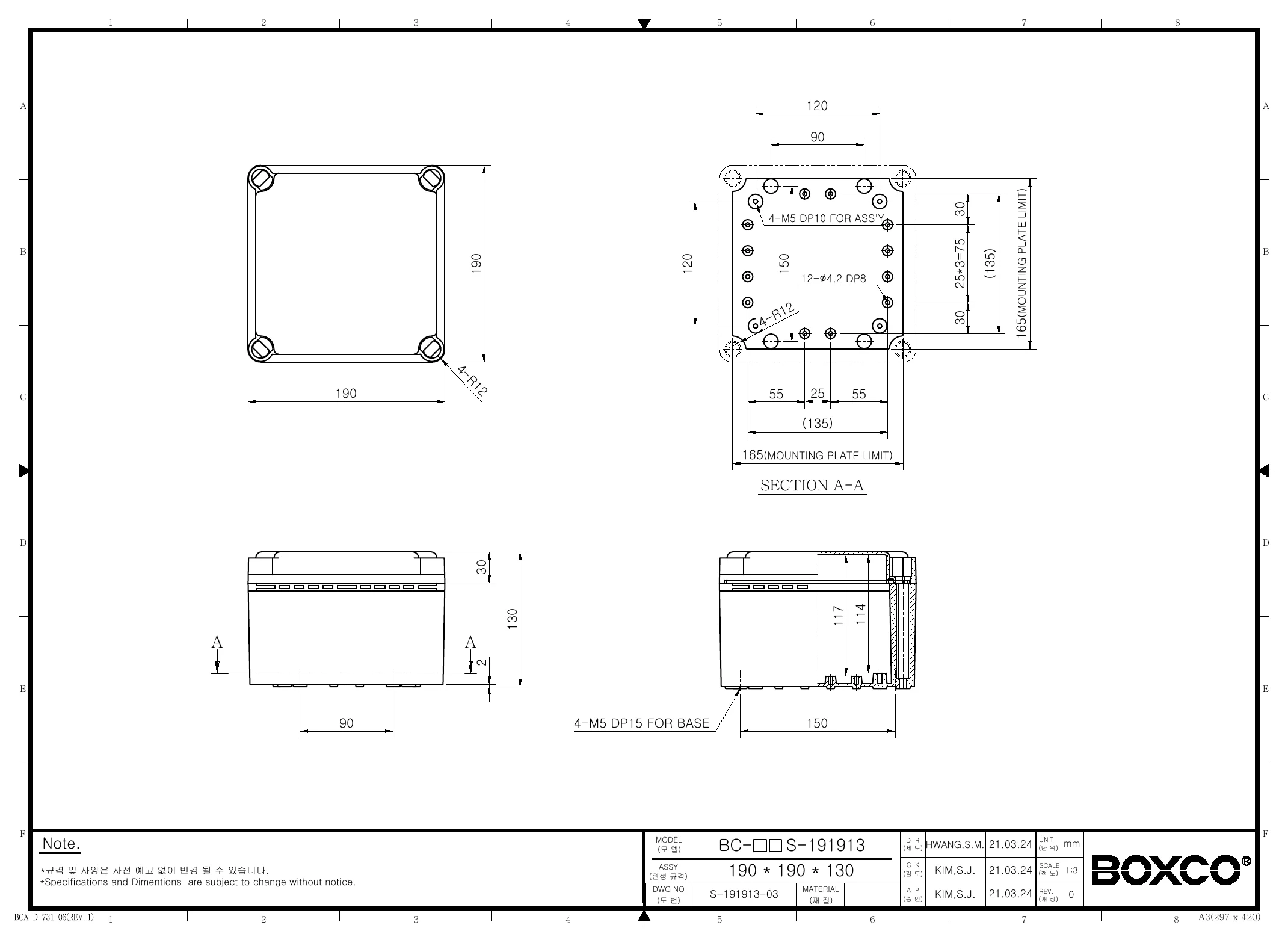

BC-CTS-191913 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What kind of applications is the Boxco S-Series 190x190x130mm enclosure suited for?

This enclosure is designed for protecting electronic components and control equipment in industrial and commercial environments. Its high-impact plastic construction, transparent cover, and internal mounting features make it a practical choice when equipment needs physical protection and visual inspection without opening the box.

Is this enclosure suitable for outdoor use?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. The material is intended to reduce noticeable color change over long periods of exposure while maintaining enclosure durability.

What do the IP67 and IK08 ratings mean for this enclosure?

This model is rated IP67 for strong protection against dust ingress and water exposure, supported by its precision-injected gasket design. It is also rated IK08, indicating resistance to mechanical impact in demanding environments.

Does this enclosure support mounting internal components?

Yes, it includes internal mounting plate attachment points with brass-inserted injection molding for securely fixing a mounting plate. It also has pre-molded mounting screw nuts that support installing DIN rail or other internal equipment.

What are the key material and operating limits of this model?

This enclosure uses polycarbonate (PC) and has a transparent cover in a screw-type design. The stated operating temperature range is -40 degrees C to 110 degrees C, and the unit weight is 1.36 kg.

How does this model differ from a basic plastic enclosure?

This Boxco S-Series model combines outdoor-oriented UV-stabilized material, anti-static properties, IP67 sealing, and IK08 impact resistance in one enclosure. It also adds practical features such as a transparent cover, molded screw threads, and internal mounting support that may not be present in more basic boxes.
