Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-192813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-192813 is a 190×280×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-192813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×130 mm (7.48×11.02×5.12 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

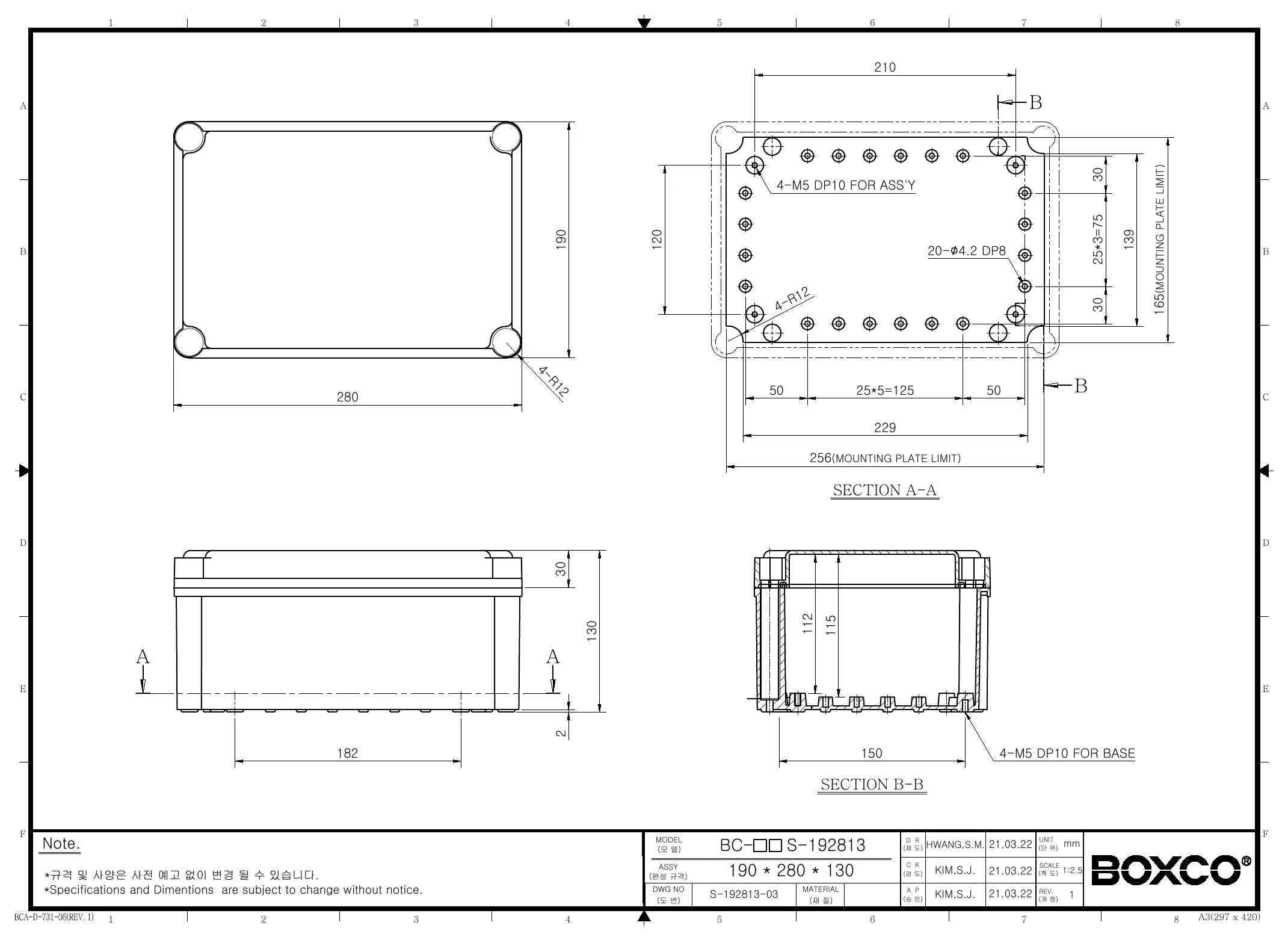

BC-CGS-192813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is designed for protecting electronic components and instruments in industrial and commercial environments. Its high-impact polycarbonate construction, IP67 sealing, and IK08 impact rating make it a practical choice for outdoor panels, control equipment housings, and other applications that need strong environmental protection.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also supports use where protection from dust and water ingress is important.

What are the key specifications of this enclosure?

This model measures 7.48 x 11.02 x 5.12 inches (190 x 280 x 130 mm) and weighs 0.976 kg. It is a screw-type plastic enclosure with a grey cover, made from polycarbonate, and carries IP67 and IK08 ratings.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40°C to 110°C. That range makes it suitable for demanding environments with both low and high operating temperatures, as long as the full application is designed within those limits.

Does this enclosure support mounting internal components?

Yes. The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing items such as DIN rail or other internal equipment. These built-in features help support organized component placement inside the housing.

How does this model help protect sensitive equipment?

The enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. It is also made from high impact-resistant material, which helps protect against external impact and reduces the risk of breakage during machining or processing.
