Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-192813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-192813 is a 190×280×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-192813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×130 mm (7.48×11.02×5.12 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

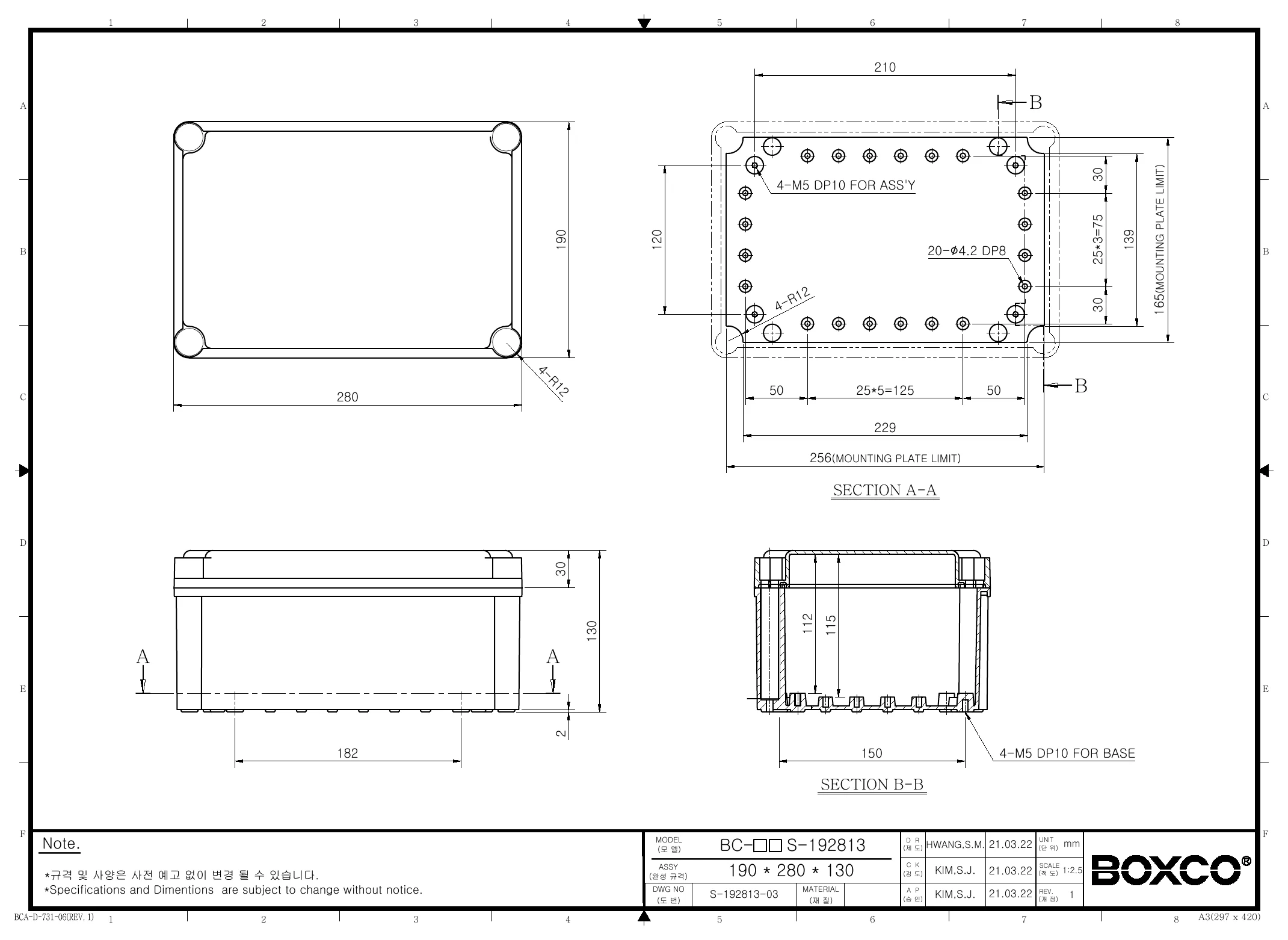

Technical drawings

BC-CTS-192813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CTS-192813 enclosure best suited for?

This enclosure is a strong fit for protecting industrial controls, monitoring devices, and other sensitive electronics that need a sealed non-metallic housing. Its transparent cover helps when components or indicators need to remain visible without opening the box.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is designed for demanding environments with an IP67 rating for resistance to dust and water ingress. The description also notes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

How durable is this plastic enclosure against impact?

The BC-CTS-192813 is rated IK08, indicating good impact resistance for industrial and commercial use. The product description also states it is made from high impact resistant material that helps prevent breakage during processing.

What are the dimensions of this Boxco enclosure?

This model measures 7.48 x 11.02 x 5.12 inches, which corresponds to 190 x 280 x 130 mm. That size provides a relatively spacious enclosure for larger assemblies compared with compact junction-style boxes.

What material and cover style does this enclosure use?

This enclosure is made from PC material and includes a transparent cover. The clear screw-type cover is useful when visual inspection of internal components is important while maintaining the enclosure's protective seal.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 110 °C. That makes it suitable for both cold outdoor conditions and higher-heat industrial environments within that specified range.

Does this enclosure support mounting internal components securely?

Yes, the product description highlights internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure placement of internal hardware and mounting accessories inside the enclosure.
