Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-193813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-193813 is a 190×380×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-193813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×380×130 mm (7.48×14.96×5.12 in)
Mounting plate dimension M1 × M2
159 × 347 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1938 P (Plastic, P type), 1938 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

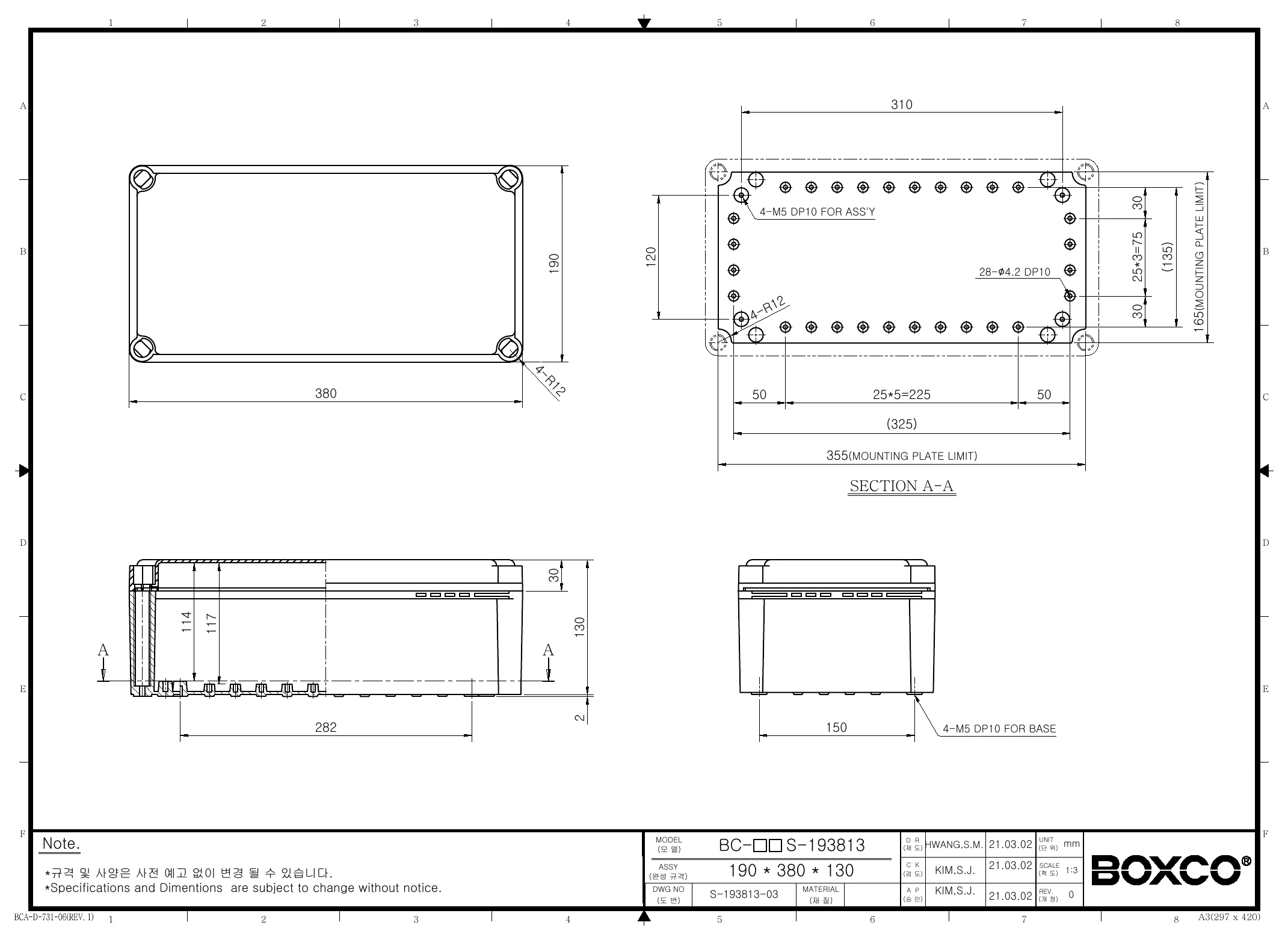

Technical drawings

BC-CGS-193813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this enclosure best suited for?

This Boxco S-Series enclosure is suited for protecting industrial and commercial electronics that need a durable non-metallic housing. Its anti-static polycarbonate construction, impact resistance, and internal mounting support make it a practical choice for control, monitoring, and instrumentation applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series model includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

How durable is this plastic enclosure?

This model is made from polycarbonate and is described as high impact resistant material designed to resist external impact and reduce breakage during hole and press processing. It also carries an IK08 impact rating, which supports its use where mechanical durability matters.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 110 degrees C. That makes it suitable for both low-temperature and elevated-temperature environments within that specified range.

What are the main features that support internal equipment mounting?

This enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing heavier equipment inside. It also has pre-molded mounting screw nuts that allow DIN rail or other internal components to be fixed more easily.

What distinguishes this specific Boxco S-Series model from a basic enclosure box?

This model combines a large 190 x 380 x 130 mm form factor with IP67 ingress protection, IK08 impact resistance, UV-stabilized polycarbonate, and anti-static material properties. It is also a screw-type enclosure with a grey cover and gasket system designed for strong waterproof and dust-proof performance.
