Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-193818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-193818 is a 190×380×180 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-193818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×380×180 mm (7.48×14.96×7.09 in)
Mounting plate dimension M1 × M2
159 × 347 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1938 P (Plastic, P type), 1938 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

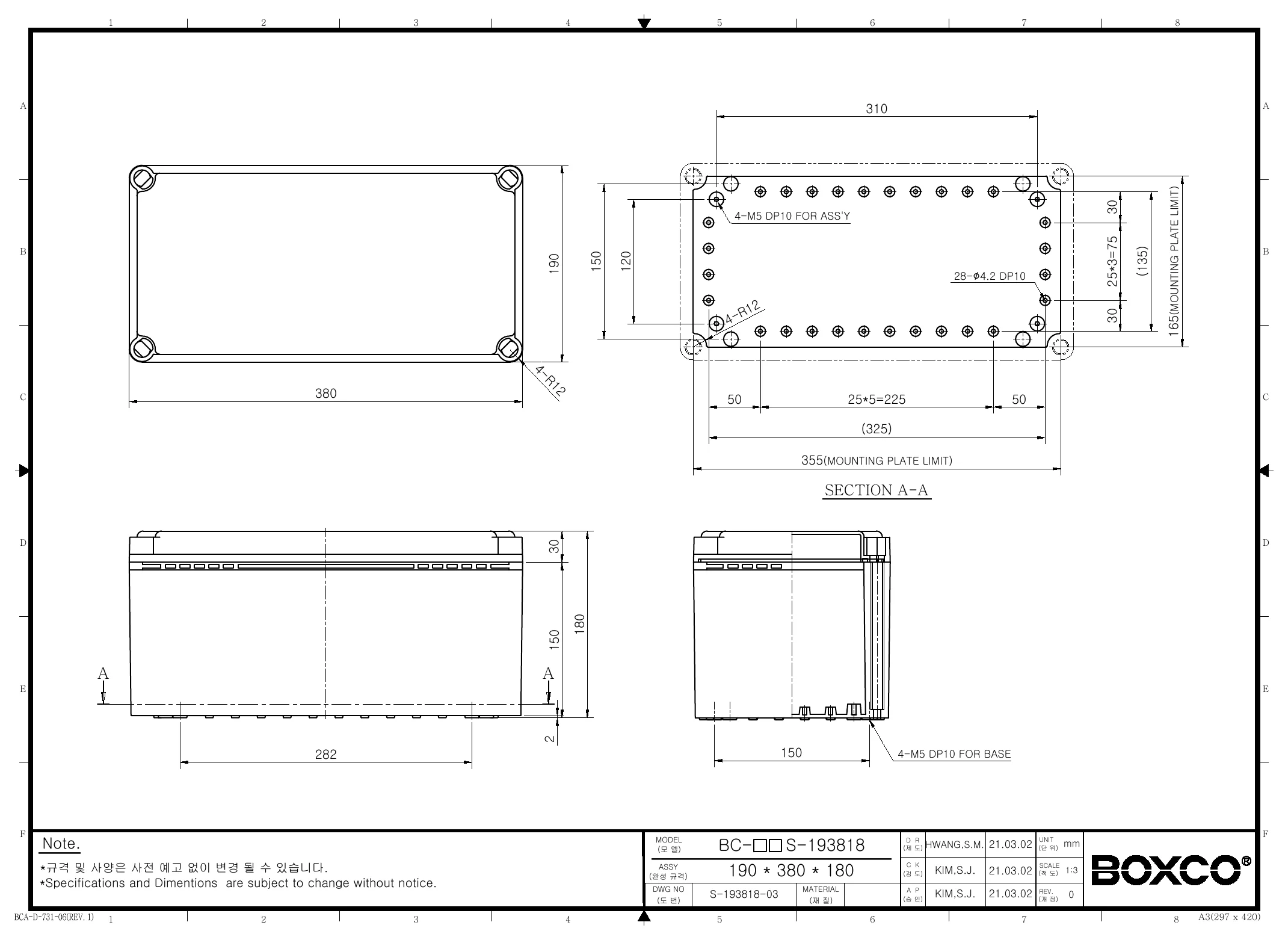

Technical drawings

BC-CTS-193818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco S-Series plastic enclosure is designed to protect electrical and electronic components in industrial and commercial applications where dust and water resistance matter. Its transparent cover also makes it useful when internal indicators or components need to remain visible without opening the enclosure.

What size is this enclosure?

This model measures 7.48 x 14.96 x 7.09 inches, which corresponds to 190 x 380 x 180 mm. That larger rectangular format gives more internal room than compact junction-style boxes, making it better suited for applications that need additional protected space.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time.

How durable is the enclosure housing?

This model is made from polycarbonate (PC) and carries an IK08 impact rating, indicating solid resistance to external impact. The description also notes high impact resistance and material strength during hole and press processing.

What temperature range can this enclosure handle?

The stated operating temperature range for this model is -40 degrees C to 110 degrees C. That wide range makes it suitable for demanding environments where both low-temperature and high-temperature exposure are concerns.

Does this model support mounting internal components securely?

Yes, the product description highlights internal mounting plate attachment points with brass inserted injection molding for tightly securing heavier equipment inside the enclosure. It also includes pre-molded mounting screw nuts to support DIN rail or other equipment mounting.
