Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-202010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-202010 is a 200×200×100 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-202010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×100 mm (7.87×7.87×3.94 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

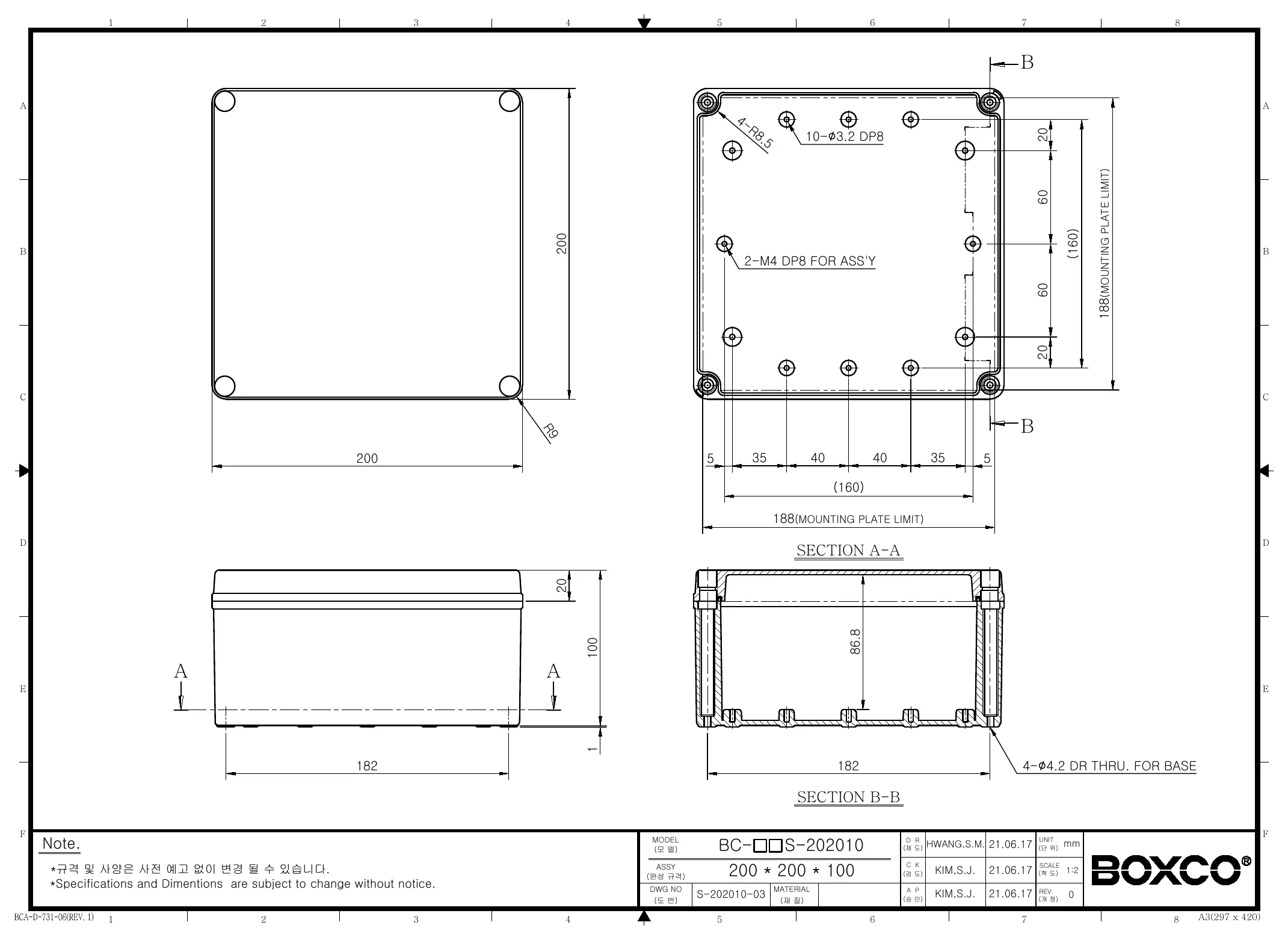

BC-AGS-202010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-AGS-202010 enclosure?

This enclosure measures 7.87 x 7.87 x 3.94 inches, which corresponds to 200 x 200 x 100 mm. That size makes it suitable for protecting medium-sized components and control assemblies that need a sealed plastic housing.

What material is this enclosure made from?

The BC-AGS-202010 is made from ABS plastic with a grey cover. The product description also notes anti-static material and high impact resistance, which helps protect sensitive instruments and withstand mechanical stress during processing and use.

Is this plastic enclosure suitable for outdoor use?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce noticeable color change over long periods of exposure compared with standard plastic enclosures.

How well is this enclosure protected against dust, water, and impact?

This model is rated IP67 and IK08. That means it is built for strong dust and water resistance as well as solid impact protection for industrial and commercial environments.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. This allows the enclosure to be considered for both cold and moderately hot environments where a sealed non-metallic housing is needed.

What kinds of applications is this enclosure commonly used for?

This enclosure is a practical choice for protecting sensitive electronic instruments, industrial controls, and other components that need a sealed ABS housing. Its anti-static material, IP67 sealing, and impact resistance make it relevant for indoor or outdoor equipment protection in B2B settings.

Does this enclosure support internal mounting hardware or accessories?

Yes, the product description states that it includes mounting plate attachment points and pre-molded mounting screw nuts. These features support secure internal equipment mounting and help accommodate added hardware such as mounting plates or DIN rail-compatible components.
